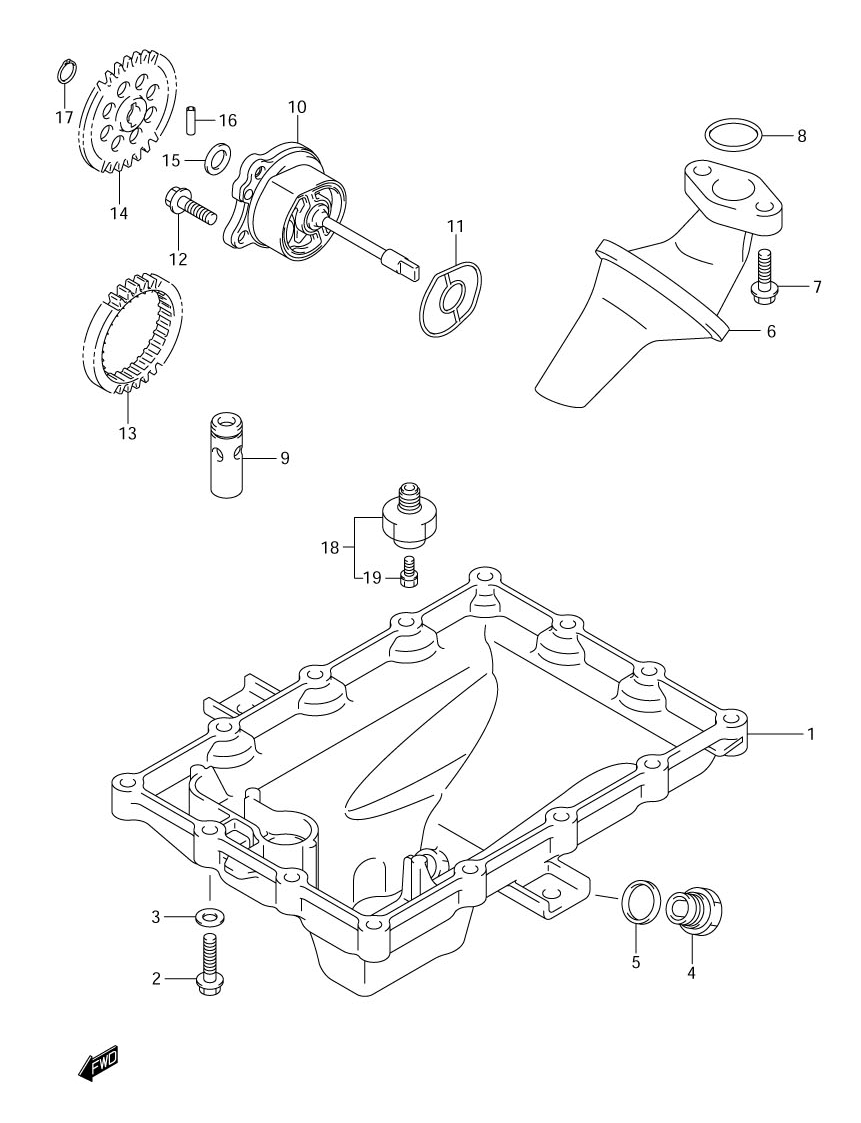

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX-R750 K5 - 2005 года выпуска
-
№АртикулНазвание
-
111511-29G00 PAN, OILPAN, OIL
-
201547-06253 BOLTBOLT
-
309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
409247-14036 PLUG, OIL DRAINPLUG, OIL DRAIN
-
509168-14002 GASKETGASKET
-
616520-29G00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
701550-06203 BOLTBOLT
-
809280-19008 O-RING (D:2.62,ID:20.3)O-RING (D:2.62,ID:20.3)
-
916440-24F00 VALVE ASSY., OIL RELIEFVALVE ASSY., OIL RELIEF
-
1016400-35F00 PUMP ASSY., ENGINE OILPUMP ASSY., ENGINE OIL
-
1116491-35F00 O-RINGO-RING
-
1201547-06203 BOLTBOLT
-
1316321-35F01 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
1416331-35F00 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
1509181-10158 WASHERWASHER
-
1609261-04009 PINPIN
-
1708331-31106 CIRCLIPCIRCLIP
-
1837820-33D10 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
1937822-33D00 ...BOLT...BOLT
