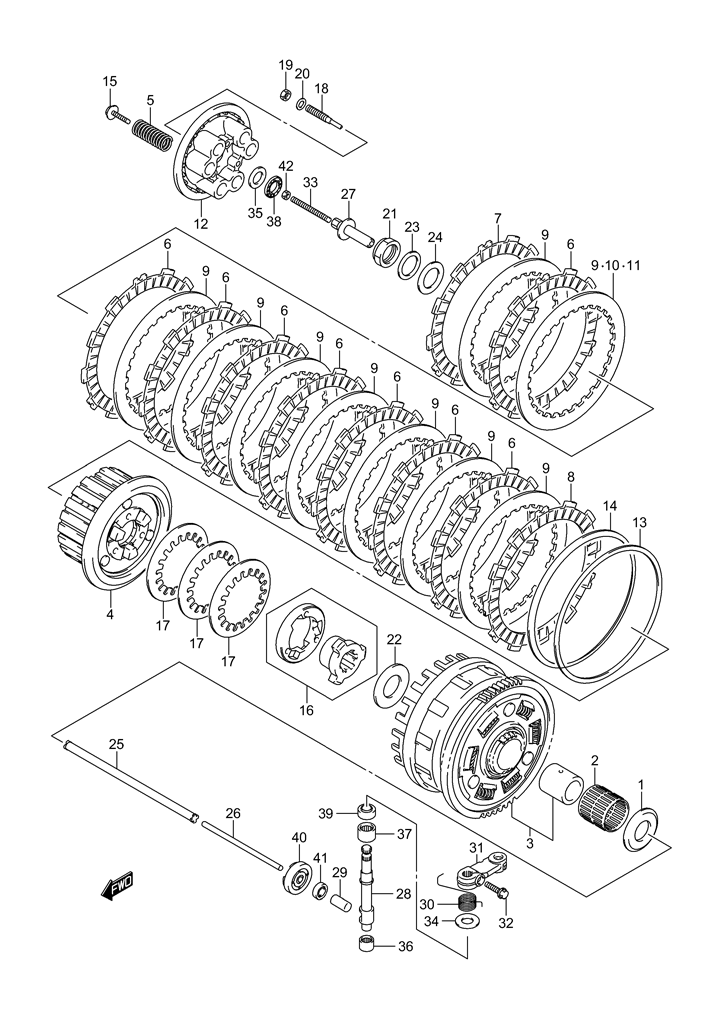

CLUTCH для Suzuki GSX-R1000 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    09160-25073 WASHER, PRI DRIVEN GEAR THRUST
    WASHER, PRI DRIVEN GEAR THRUST
  • 2
    09263-35017 BEARING, PRIMARY DRIVEN GEAR
    BEARING, PRIMARY DRIVEN GEAR
  • 3
    21200-40870 GEAR ASSY, PRIMARY DRIVEN
    GEAR ASSY, PRIMARY DRIVEN
  • 4
    21410-41G00 HUB, CLUTCH SLEEVE
    HUB, CLUTCH SLEEVE
  • 5
    21413-41G00 SPRING, CLUTCH SLEEVE
    SPRING, CLUTCH SLEEVE
  • 6
    21441-36F00 PLATE, CLUTCH DRIVE NO.1
    PLATE, CLUTCH DRIVE NO.1
  • 7
    21441-36F10 PLATE, CLUTCH DRIVE NO.2
    PLATE, CLUTCH DRIVE NO.2
  • 8
    21442-41G00 PLATE, CLUTCH DRIVE NO.3
    PLATE, CLUTCH DRIVE NO.3
  • 9
    21451-41G00 PLATE, CLUTCH DRIVEN (T:2.3)
    PLATE, CLUTCH DRIVEN (T:2.3)
  • 10
    21451-41G10 PLATE, CLUTCH DRIVEN (T:2.0)
    PLATE, CLUTCH DRIVEN (T:2.0)
  • 11
    21451-41G20 PLATE, CLUTCH DRIVEN (T:2.6)
    PLATE, CLUTCH DRIVEN (T:2.6)
  • 12
    21462-41G00 DISC, CLUTCH PRESSURE
    DISC, CLUTCH PRESSURE
  • 13
    21471-41G00 SEAT, WAVE WASHER
    SEAT, WAVE WASHER
  • 14
    21472-41G00 WASHER, CLUTCH PLATE WAVE
    WASHER, CLUTCH PLATE WAVE
  • 15
    21482-41G00 BOLT, CLUTCH SPRING
    BOLT, CLUTCH SPRING
  • 16
    21610-41G00 CAM SET, CLUTCH
    CAM SET, CLUTCH
  • 17
    21621-41G00 WASHER, CAM REACTION WAVE
    WASHER, CAM REACTION WAVE
  • 18
    21622-41G00 LIFTER, CLUTCH PRESSURE DISK
    LIFTER, CLUTCH PRESSURE DISK
  • 19
    21623-41G00 NUT, CL PRESS DISK LIFTER LOCK
    NUT, CL PRESS DISK LIFTER LOCK
  • 20
    09181-08139 WASHER, LIFTER LOCK NUT
    WASHER, LIFTER LOCK NUT
  • 21
    09159-24010 NUT, CLUTCH SLEEVE HUB
    NUT, CLUTCH SLEEVE HUB
  • 22
    09160-25056 NUT, CLUTCH SLEEVE HUB THR
    NUT, CLUTCH SLEEVE HUB THR
  • 23
    09160-25077 WASHER, CLUTCH SLEEVE HUB
    WASHER, CLUTCH SLEEVE HUB
  • 24
    09164-24006 WASHER, CLUTCH SLEEVE HUB WAVE
    WASHER, CLUTCH SLEEVE HUB WAVE
  • 25
    23110-38B00 ROD, CLUTCH
    ROD, CLUTCH
  • 26
    23111-35F00 ROD, CLUTCH PUSH, LEFT
    ROD, CLUTCH PUSH, LEFT
  • 27
    23121-41G00 PIECE, CLUTCH PUSH
    PIECE, CLUTCH PUSH
  • 28
    23122-41G00 CAMSHAFT, CLUTCH RELEASE
    CAMSHAFT, CLUTCH RELEASE
  • 29
    23123-41G00 CAP, CLUTCH PUSH ROD
    CAP, CLUTCH PUSH ROD
  • 30
    23125-41G00 SPRING, CLUTCH RELEASE RETURN
    SPRING, CLUTCH RELEASE RETURN
  • 31
    23271-41G00 ARM, CLUTCH RELEASE
    ARM, CLUTCH RELEASE
  • 32
    09103-06223 BOLT, CL RELEASE ARM
    BOLT, CL RELEASE ARM
  • 33
    09134-06015 SCREW, CLUTCH PUSH ROD
    SCREW, CLUTCH PUSH ROD
  • 34
    09160-10020 WASHER, CLUTCH RELEASE
    WASHER, CLUTCH RELEASE
  • 35
    09160-15045 WASHER, CLUTCH PUSH PIECE THR
    WASHER, CLUTCH PUSH PIECE THR
  • 36
    09263-10014 BEARING, CL RLSE CAM SHAFT LOWER
    BEARING, CL RLSE CAM SHAFT LOWER
  • 37
    09263-12027 BEARING, CL RLSE CAM SHAFT UPPER
    BEARING, CL RLSE CAM SHAFT UPPER
  • 38
    09263-15003 BEARING, CLUTCH PUSH PIECE THRUST
    BEARING, CLUTCH PUSH PIECE THRUST
  • 39
    09282-10012 SEAL, CL RLSE CAMSHAFT OIL
    SEAL, CL RLSE CAMSHAFT OIL
  • 40
    09285-06011 SEAL, CLUTCH PUSH ROD OIL
    SEAL, CLUTCH PUSH ROD OIL
  • 41
    09285-10004 SEAL, CLUTCH PUSH ROD CAP
    SEAL, CLUTCH PUSH ROD CAP
  • 42
    08310-00063 NUT, CLUTCH RELEASE ADJ
    NUT, CLUTCH RELEASE ADJ
