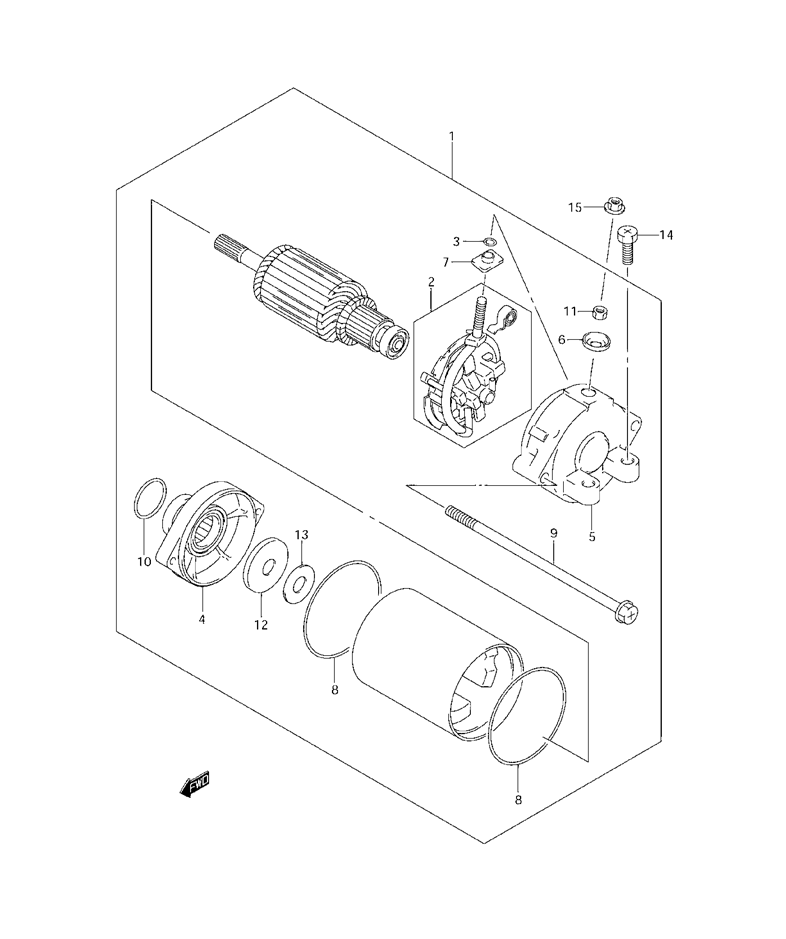

STARTING MOTOR для Suzuki GSX-1300R K5 LTD - 2005 года выпуска`
-
№АртикулНазвание
-
131100-24F10 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231132-45C00 HOLDER SET, BRUSHHOLDER SET, BRUSH
-
331143-38300 O RINGO RING
-
431150-24F01 HOUSINGHOUSING
-
531171-24F00 FRAME, STARTER ENDFRAME, STARTER END
-
631172-38300 BUSHINGBUSHING
-
731173-88C00 BUSHINGBUSHING
-
831264-44110 O RINGO RING
-
931281-24F00 BOLTBOLT
-
1009280-24003 O RING (D:3.1,ID:24.5)O RING (D:3.1,ID:24.5)
-
1108310-00067 NUTNUT
-
1231361-43400 WASHERWASHER
-
1331361-38300 SHIMSHIM
-
1409128-06024 BOLT (6X25)BOLT (6X25)
-
1508361-35068 NUTNUT
