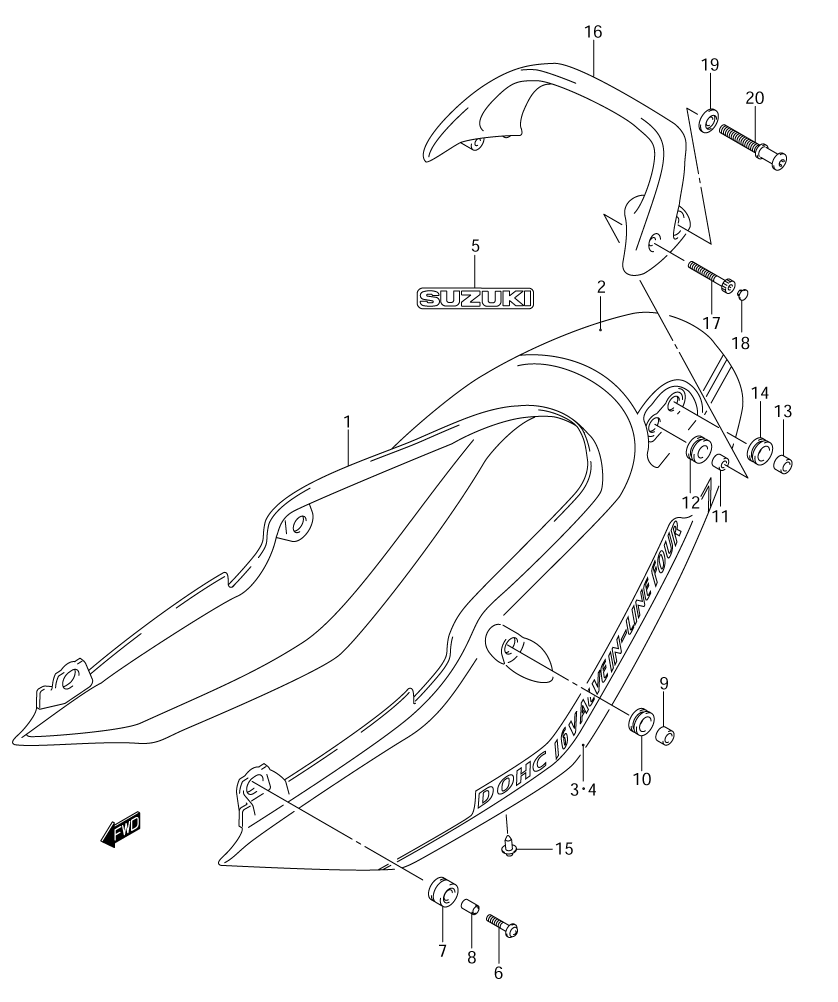

SEAT TAIL COVER для Suzuki GSF1200SZ K5 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    45510-32F60-YBD COVER, SEAT TAIL (YBD - WHITE) (LR5 - BLUE/WHITE)
    COVER, SEAT TAIL (YBD - WHITE) (LR5 - BLUE/WHITE)
  • 2
    68165-32F50-LR5 TAPE, SEAT TAIL COVER (CENTER) (LR5 - BLUE/WHITE)
    TAPE, SEAT TAIL COVER (CENTER) (LR5 - BLUE/WHITE)
  • 3
    68165-32F40-ML8 TAPE, SEAT TAIL COVER (RIGHT) (ML8 - WHITE/BLUE/GRAY)
    TAPE, SEAT TAIL COVER (RIGHT) (ML8 - WHITE/BLUE/GRAY)
  • 4
    68166-32F40-ML8 TAPE, SEAT TAIL COVER (LEFT) (ML8 - WHITE/BLUE/GRAY)
    TAPE, SEAT TAIL COVER (LEFT) (ML8 - WHITE/BLUE/GRAY)
  • 5
    68165-16B00-019 ...EMBLEM, "SUZUKI" (019 - BLACK)
    ...EMBLEM, "SUZUKI" (019 - BLACK)
  • 6
    09136-06083 SCREW (FRONT) (6X30)
    SCREW (FRONT) (6X30)
  • 7
    47115-19F00 CUSHION (FRONT) (10X22X15)
    CUSHION (FRONT) (10X22X15)
  • 8
    09180-06291 SPACER (FRONT) (6.5X10X13)
    SPACER (FRONT) (6.5X10X13)
  • 9
    09180-08199 SPACER, CENTER (8.5X14X9)
    SPACER, CENTER (8.5X14X9)
  • 10
    09320-14023 CUSHION, CENTER (14X22X9.5)
    CUSHION, CENTER (14X22X9.5)
  • 11
    09180-06300 SPACER, RR-FR (6.5X12X9)
    SPACER, RR-FR (6.5X12X9)
  • 12
    09320-12068 CUSHION, RR-FR (12X22X9.5)
    CUSHION, RR-FR (12X22X9.5)
  • 13
    09180-08199 SPACER, RR-RR (8.5X14X9)
    SPACER, RR-RR (8.5X14X9)
  • 14
    09320-14023 CUSHION, RR-RR (14X12X9.5)
    CUSHION, RR-RR (14X12X9.5)
  • 15
    09409-06314-5PK CLIP
    CLIP
  • 16
    46211-32F00-YBA HANDLE, PILLION RIDER (YBA - BLUE)
    HANDLE, PILLION RIDER (YBA - BLUE)
  • 17
    07120-06453 BOLT
    BOLT
  • 18
    09250-05009 CAP
    CAP
  • 19
    46317-31F00 WASHER, HOOK
    WASHER, HOOK
  • 20
    46316-31F00 HOOK, HANDLE
    HOOK, HANDLE
