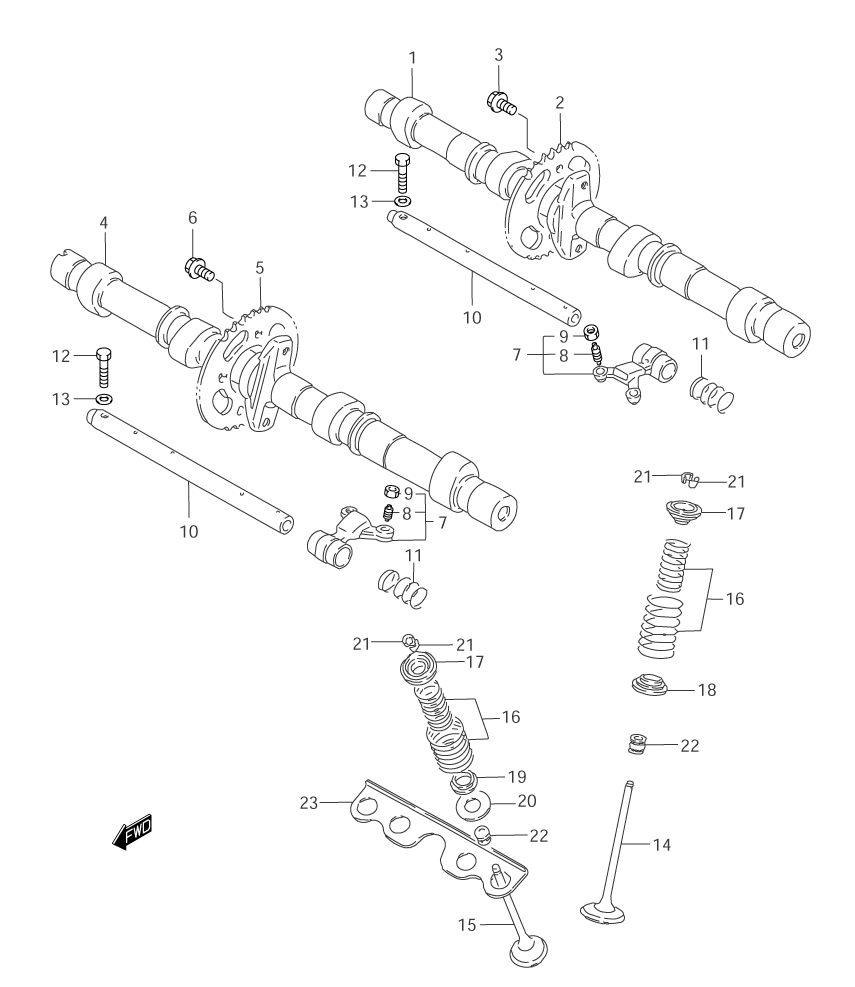

CAMSHAFT W/ VALVES для Suzuki GSF1200S K5 - 2005 года выпуска
-
№АртикулНазвание
-
112711-26D00 CAM SHAFT, INTAKECAM SHAFT, INTAKE
-
212741-26D00 SPROCKETSPROCKET
-
309103-07001 BOLT (7X11)BOLT (7X11)
-
412721-26E20 CAM SHAFT, EXHAUSTCAM SHAFT, EXHAUST
-
512741-26D00 SPROCKETSPROCKET
-
609103-07001 BOLT (7X11)BOLT (7X11)
-
712840-27A01 ARM, ROCKERARM, ROCKER
-
812842-49201 ...SCREW...SCREW
-
912843-27A00 ...NUT...NUT
-
1012861-27A00 SHAFT, ROCKER ARMSHAFT, ROCKER ARM
-
1109440-13014 SPRINGSPRING
-
1209112-06004 BOLTBOLT
-
1308322-01063 WASHERWASHER
-
1412911-06B02 VALVE, INTAKEVALVE, INTAKE
-
1512912-06B00 VALVE, EXHAUSTVALVE, EXHAUST
-
1612920-06B00 SPRING SETSPRING SET
-
1712931-27A20 RETAINERRETAINER
-
1812933-81400 SEATSEAT
-
1912934-27A01 SEAT, EXHAUST (INNER)SEAT, EXHAUST (INNER)
-
2012935-27A00 SEAT, EXHAUST (OUTER)SEAT, EXHAUST (OUTER)
-
2112932-27A00 COTTER, VALVECOTTER, VALVE
-
2209289-05011 OIL SEAL (5X10X8.7)OIL SEAL (5X10X8.7)
-
2311137-27A02 PLATEPLATE
