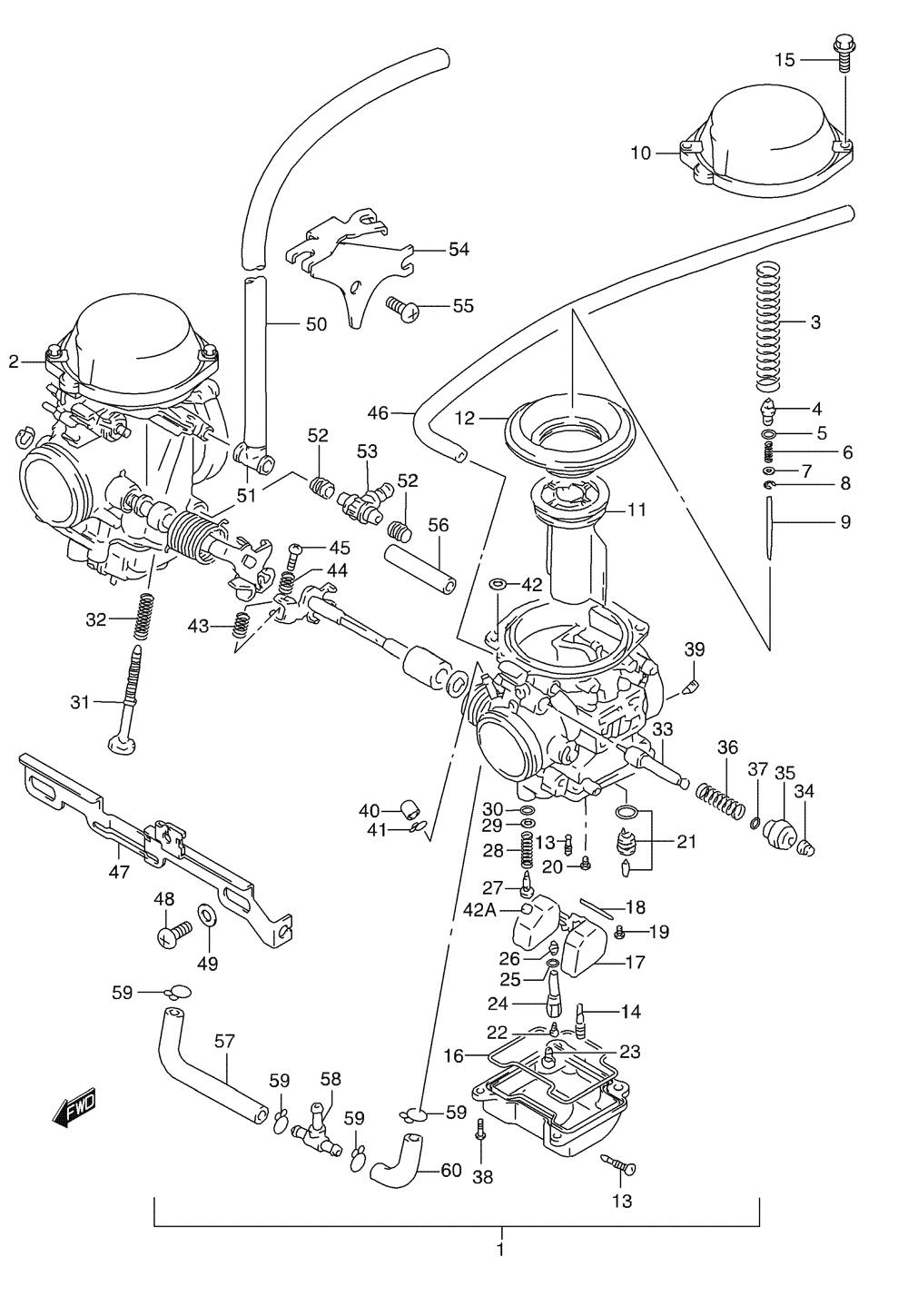

CARBURETOR (CANADA ONLY) для Suzuki GS-500F K5 - 2005 года выпуска`
-
№АртикулНазвание
-
113201-01DH0 CARBURETOR ASSY, LEFT HANDCARBURETOR ASSY, LEFT HAND
-
213202-01DH0 CARBURETOR ASSY, RIGHT HANDCARBURETOR ASSY, RIGHT HAND
-
313573-19E00 SPRINGSPRING
-
413418-33E00 HOLDERHOLDER
-
509280-05004 O RING (D:1.9, ID:4.8)O RING (D:1.9, ID:4.8)
-
613481-13F00 SPRINGSPRING
-
713382-19E00 WASHERWASHER
-
813387-13F00 E RINGE RING
-
913383-01DH0 NEEDLE, JET (5DH42-1)NEEDLE, JET (5DH42-1)
-
1013502-07F00 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
1113501-29FA0 VALVE, PISTONVALVE, PISTON
-
1213507-17C01 DIAPHRAGMDIAPHRAGM
-
1313247-02340 SCREW, DRAINSCREW, DRAIN
-
1409492-17016 JET, PILOTJET, PILOT
-
1502112-04107 SCREWSCREW
-
1613258-44B00 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
1713250-04F00 FLOAT ASSYFLOAT ASSY
-
1813254-01010 PIN, FLOATPIN, FLOAT
-
1902112-04083 SCREWSCREW
-
2013602-05A10 SCREWSCREW
-
2113370-33E80 VALVE ASSY, NEEDLEVALVE ASSY, NEEDLE
-
2209491-25018 JET, MAIN (127.5)JET, MAIN (127.5)
-
2309491-60010 JET, MAIN (60)JET, MAIN (60)
-
2413385-07F00 HOLDER, JETHOLDER, JET
-
2513246-43010 O RINGO RING
-
2609494-00949 JET, NEEDLE (P-5M)JET, NEEDLE (P-5M)
-
2713279-33E00 SCREW, PILOT (2 1/2)SCREW, PILOT (2 1/2)
-
2813268-47070 SPRINGSPRING
-
2913291-29900 WASHERWASHER
-
3013295-29900 O RINGO RING
-
3113267-13F00 ADJUSTER RIGHT HANDADJUSTER RIGHT HAND
-
3213271-33C00 SPRING RIGHT HANDSPRING RIGHT HAND
-
3313411-05300 PLUNGER ASSYPLUNGER ASSY
-
3413682-31210 CAPCAP
-
3513418-44080 HOLDER, GUIDEHOLDER, GUIDE
-
3613417-26D00 SPRINGSPRING
-
3713278-47090 O RINGO RING
-
3813247-33E00 SCREWSCREW
-
3909493-32007 JET, AIR (160)JET, AIR (160)
-
4013274-84000 CAPCAP
-
4109401-06101 CLIPCLIP
-
4213295-33010 O RINGO RING
-
42A13281-05A00 PLUGPLUG
-
4313268-96111 SPRINGSPRING
-
4413271-44B00 SPRINGSPRING
-
4513267-44B00 SCREWSCREW
-
4613683-01DF0 HOSEHOSE
-
4713413-01DE0 PLATEPLATE
-
4813602-04F00 SCREWSCREW
-
4913557-33E00 PACKINGPACKING
-
5013683-01DE0 HOSEHOSE
-
5113683-01DB0 HOSEHOSE
-
5213673-44B00 SEALSEAL
-
5313685-33EQ0 NIPPLENIPPLE
-
5413565-01DE0 BRACKETBRACKET
-
5502122-05103 SCREWSCREW
-
5613685-01DB0 PIPEPIPE
-
5713684-48B10 HOSEHOSE
-
5813685-48B00 NIPPLENIPPLE
-
5909401-10410 CLIPCLIP
-
6013684-48B10 HOSEHOSE
