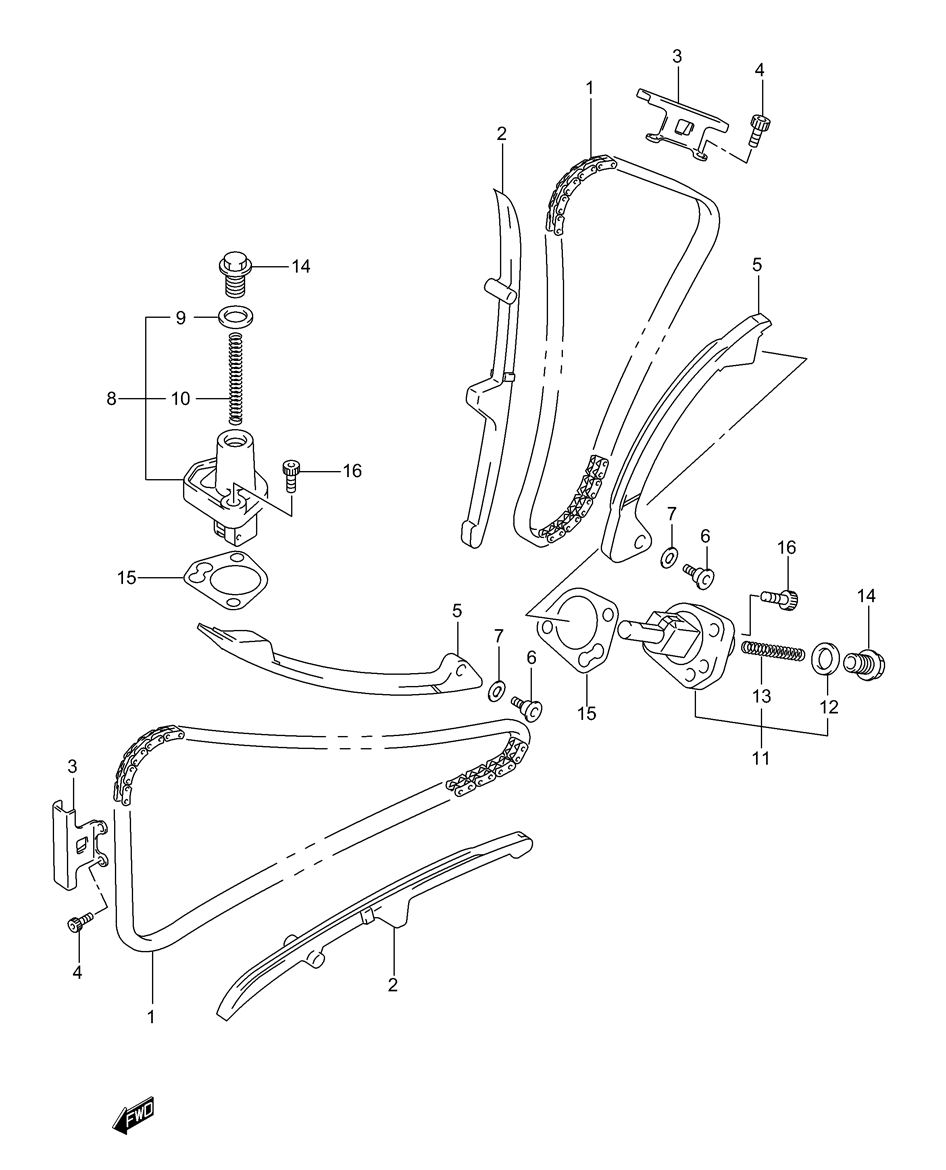

CAM CHAIN ASSY. W/ TENSIONER для Suzuki DL650 K5 V-STROM - 2005 года выпуска
-
№АртикулНазвание
-
112760-19F00 CHAIN, CAMSHAFT DRIVECHAIN, CAMSHAFT DRIVE
-
212771-19F00 GUIDE, CAM CHAIN NO.1GUIDE, CAM CHAIN NO.1
-
312782-19F00 GUIDE, CAM CHAIN NO.2GUIDE, CAM CHAIN NO.2
-
407130-06123 BOLTBOLT
-
512811-17G00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
612812-35C00 BOLT, CAM CHAIN TENSIONERBOLT, CAM CHAIN TENSIONER
-
708211-06181 WASHERWASHER
-
812830-27G00 ADJUSTER ASSY, TENSIONER FRONTADJUSTER ASSY, TENSIONER FRONT
-
912837-24F10 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
1012831-39F00 SPRINGSPRING
-
1112830-27G10 ADJUSTER ASSY, TENSIONER REARADJUSTER ASSY, TENSIONER REAR
-
1212837-24F10 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
1312831-39F00 SPRINGSPRING
-
1412833-17G00 PLUG, TENSIONER ADJUSTERPLUG, TENSIONER ADJUSTER
-
1512837-27G00 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
1607130-06253 BOLTBOLT
