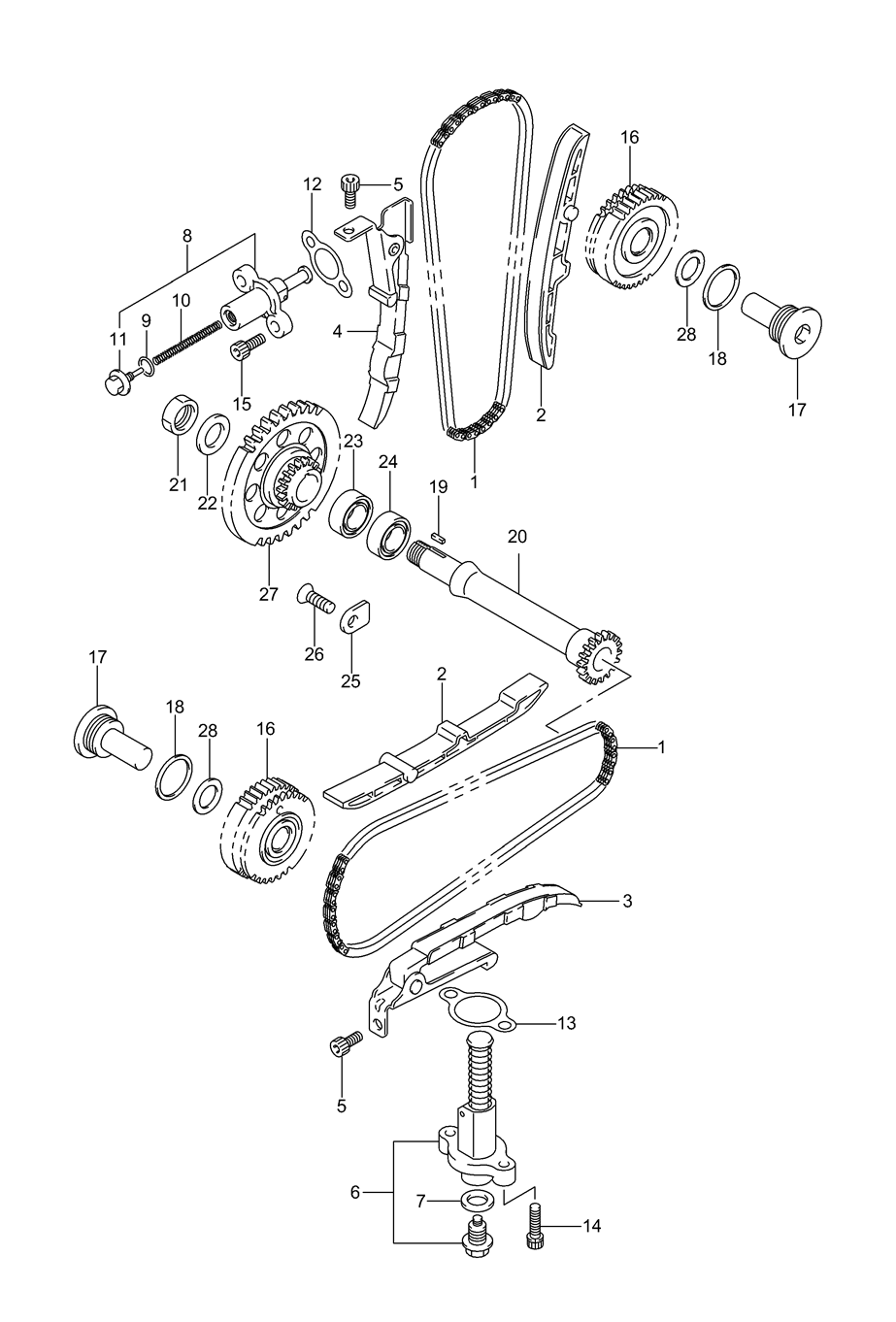

CAM CHAIN ASSY. W/ TENSIONER для Suzuki DL1000 K5 - 2005 года выпуска
-
№АртикулНазвание
-
112760-23F00 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-06G00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312810-06G00 TENSIONER, FRONT CAM CHAINTENSIONER, FRONT CAM CHAIN
-
412815-06G00 TENSIONER, REAR CAM CHAINTENSIONER, REAR CAM CHAIN
-
507120-06123 BOLTBOLT
-
612832-05A10 ADJUSTER ASSY, FRONT TENSIONERADJUSTER ASSY, FRONT TENSIONER
-
709168-12018 GASKETGASKET
-
812830-30A01 ADJUSTER ASSY, REAR TENSIONERADJUSTER ASSY, REAR TENSIONER
-
912832-02A00 O RINGO RING
-
1012833-30A01 SPRINGSPRING
-
1112834-02A00 PLUGPLUG
-
1212837-19B10 GASKETGASKET
-
1312837-24A10 GASKETGASKET
-
1407130-06253 BOLTBOLT
-
1507130-06203 BOLTBOLT
-
1612750-06G00 GEAR, CAM CHAIN IDLER NO.2GEAR, CAM CHAIN IDLER NO.2
-
1712755-02F01 SHAFT, IDLER NO.2SHAFT, IDLER NO.2
-
1809168-26001 GASKETGASKET
-
1909421-04004 KEYKEY
-
2012716-06G00 SHAFT, IDLERSHAFT, IDLER
-
2109140-16001 NUTNUT
-
2209181-16212 WASHERWASHER
-
2308112-63030 BEARING, RIGHT HANDBEARING, RIGHT HAND
-
2409262-25006 BEARING, LEFT HANDBEARING, LEFT HAND
-
2524741-20A00 RETAINER, BEARINGRETAINER, BEARING
-
2609126-06011 SCREW, 6X12SCREW, 6X12
-
2712731-06G01 SPROCKET, IDLER NO.1SPROCKET, IDLER NO.1
-
2809181-15164 SHIM, CAM CHAIN IDLER, T:0.9SHIM, CAM CHAIN IDLER, T:0.9
-
2809181-15166 SHIM, CAM CHAIN IDLER, T:1SHIM, CAM CHAIN IDLER, T:1
-
2809181-15172 SHIM, CAM CHAIN IDLER, T:1.1SHIM, CAM CHAIN IDLER, T:1.1
-
2809181-15176 SHIM, CAM CHAIN IDLER, T:1.2SHIM, CAM CHAIN IDLER, T:1.2
-
2809181-15181 SHIM, CAM CHAIN IDLER, T:1.3SHIM, CAM CHAIN IDLER, T:1.3
-
2809181-15182 SHIM, CAM CHAIN IDLER, T:1.4SHIM, CAM CHAIN IDLER, T:1.4
