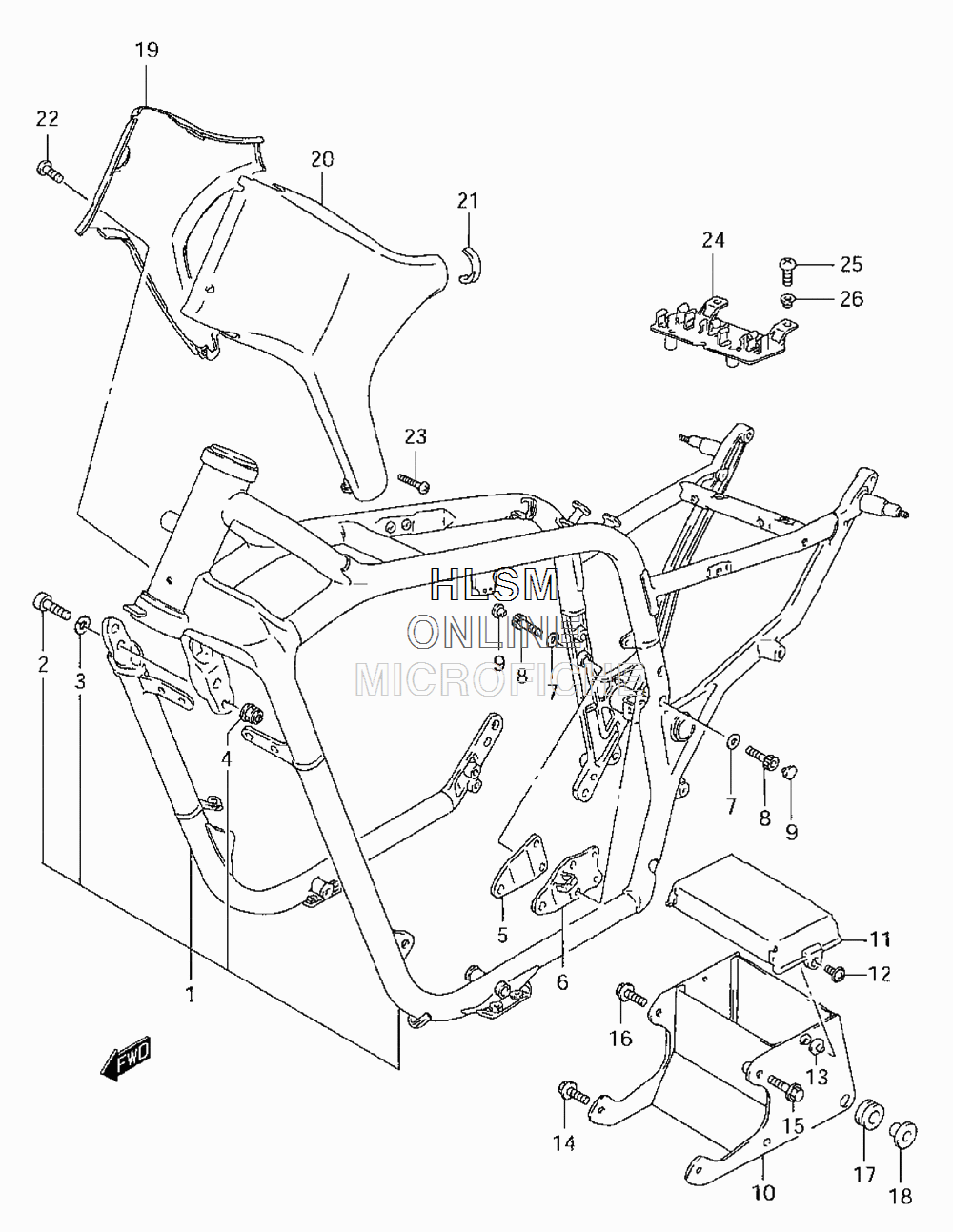

FRAME для Suzuki VS1400 GLP K4 - 2004 года выпуска
-
№АртикулНазвание
-
141101-38822-YAY FRAME SET (BLACK) (FOR NZ1) (INC 2 - 4)FRAME SET (BLACK) (FOR NZ1) (INC 2 - 4)
-
141101-38822-YD8 FRAME SET (SILVER) (FOR NZ2) (INC 2 - 4)FRAME SET (SILVER) (FOR NZ2) (INC 2 - 4)
-
209106-10019 BOLT 10 X 33BOLT 10 X 33
-
309164-10010 WASHERWASHER
-
408319-31103 NUTNUT
-
541951-38B00-YAY PLATE, NO.4, RIGHT HAND (BLACK) (FOR NZ1)PLATE, NO.4, RIGHT HAND (BLACK) (FOR NZ1)
-
541951-38B00-YD8 PLATE, NO.4, RIGHT HAND (SILVER) (FOR NZ2)PLATE, NO.4, RIGHT HAND (SILVER) (FOR NZ2)
-
641960-38B00-YAY PLATE, NO.4, LEFT HAND (BLACK) (FOR NZ1)PLATE, NO.4, LEFT HAND (BLACK) (FOR NZ1)
-
641960-38B00-YD8 PLATE, NO.4 LEFT HAND (SILVER) (FOR NZ2)PLATE, NO.4 LEFT HAND (SILVER) (FOR NZ2)
-
709164-08015 WASHERWASHER
-
809106-08072 BOLTBOLT
-
909250-06004 CAPCAP
-
1041540-38B01 HOLDER, BATTERYHOLDER, BATTERY
-
1133658-38B00 COVER, BATTERYCOVER, BATTERY
-
1209138-05012 SCREWSCREW
-
1309169-05014 WASHERWASHER
-
1401550-06163 BOLT, FRONTBOLT, FRONT
-
1501551-08203 BOLT, CENTERBOLT, CENTER
-
1609103-08222 BOLT, CENTER LEFT HANDBOLT, CENTER LEFT HAND
-
1709320-12042 CUSHIONCUSHION
-
1809301-08009 SPACERSPACER
-
1947350-38B01-YAY COVER, FRAME HEAD RIGHT HAND (BLACK) (FOR NZ1)COVER, FRAME HEAD RIGHT HAND (BLACK) (FOR NZ1)
-
1947350-38B01-YD8 COVER, FRAME HEAD RIGHT HAND (SILVER) (FOR NZ2)COVER, FRAME HEAD RIGHT HAND (SILVER) (FOR NZ2)
-
2047360-38B11-YAY COVER, FRAME HEAD LEFT HAND (BLACK) (FOR NZ1)COVER, FRAME HEAD LEFT HAND (BLACK) (FOR NZ1)
-
2047360-38B11-YD8 COVER, FRAME HEAD LEFT HAND (SILVER) (FOR NZ2)COVER, FRAME HEAD LEFT HAND (SILVER) (FOR NZ2)
-
2147359-38B00 PROTECTORPROTECTOR
-
2202142-06103 SCREWSCREW
-
2302112-04253 SCREWSCREW
-
2447411-38B02 HOLDER, COUPLERHOLDER, COUPLER
-
2502142-06163 SCREWSCREW
-
2609169-06010 WASHERWASHER
