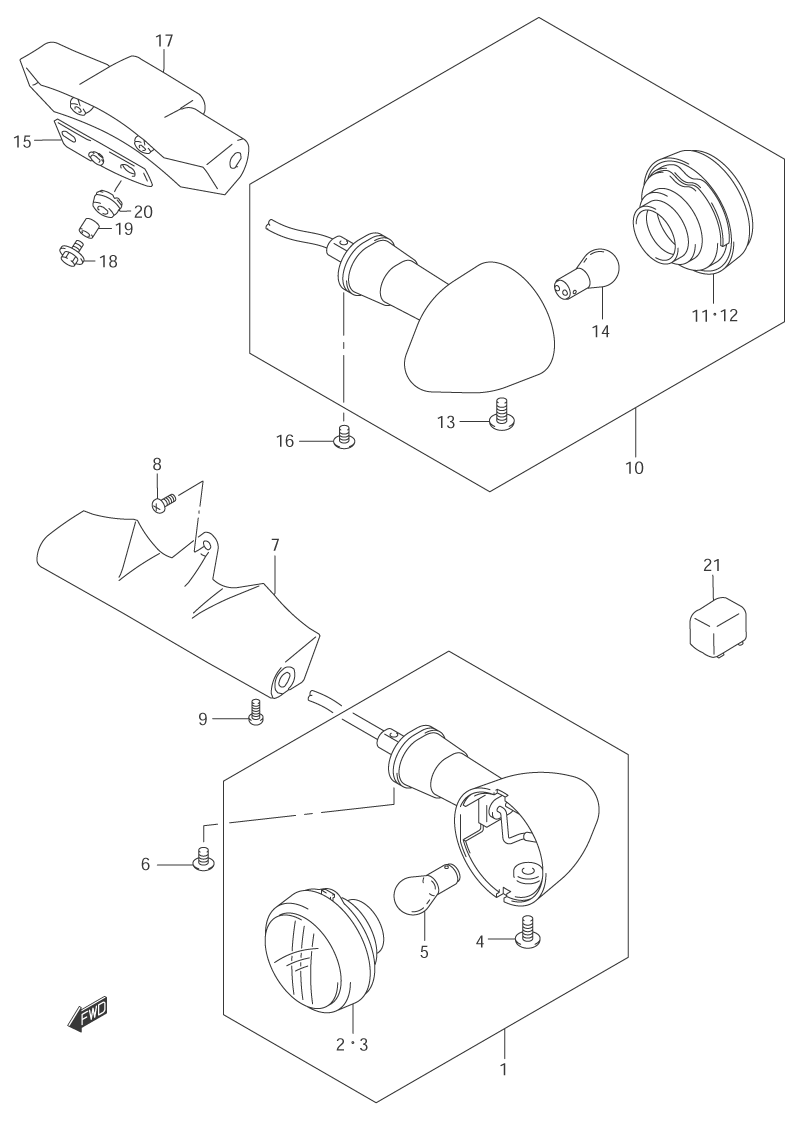

TURN SIGNAL ASSY. для Suzuki VL1500 K4 - 2004 года выпуска
-
№АртикулНазвание
-
1-135601-38AB0 LAMP ASSY, (FRONT) (RIGHT) TURNSIGNALLAMP ASSY, (FRONT) (RIGHT) TURNSIGNAL
-
1-235602-38AB0 LAMP ASSY, (FRONT) (LEFT) TURNSIGNAL LLAMP ASSY, (FRONT) (LEFT) TURNSIGNAL L
-
235610-38AA0 ...LENS (RIGHT)...LENS (RIGHT)
-
335630-38AA0 ...LENS (LEFT)...LENS (LEFT)
-
435623-38AA0 ...SCREW...SCREW
-
509471-12083 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
602142-06107 SCREWSCREW
-
735671-10F00 STAY, (FRONT) TURNSIGNALSTAY, (FRONT) TURNSIGNAL
-
809139-06027 BOLT, (FRONT) TURN STAY (6X12)BOLT, (FRONT) TURN STAY (6X12)
-
909139-08007 BOLT, (FRONT) TURN STAY (8X16)BOLT, (FRONT) TURN STAY (8X16)
-
10-135603-38AB0 LAMP ASSY, (REAR) (RIGHT) TURNSIGNALLAMP ASSY, (REAR) (RIGHT) TURNSIGNAL
-
10-235604-38AB0 LAMP ASSY, (REAR) (LEFT) TURNSIGNALLAMP ASSY, (REAR) (LEFT) TURNSIGNAL
-
1135630-38AE0 ...LENS (RIGHT)...LENS (RIGHT)
-
1235610-38AE0 ...LENS (LEFT)...LENS (LEFT)
-
1335623-38AA0 ...SCREW...SCREW
-
1409471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1535674-10F00 CUSHION, (REAR) TURN STAYCUSHION, (REAR) TURN STAY
-
1602142-06107 SCREWSCREW
-
1735621-10F00 STAY, (REAR) TURN SIGNALSTAY, (REAR) TURN SIGNAL
-
1809116-06115 BOLT (6X20)BOLT (6X20)
-
1909180-06310 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
2009320-09010 CUSHIONCUSHION
-
2138610-03F00 RELAY ASSY, TURN SIGNAL LAMPRELAY ASSY, TURN SIGNAL LAMP
