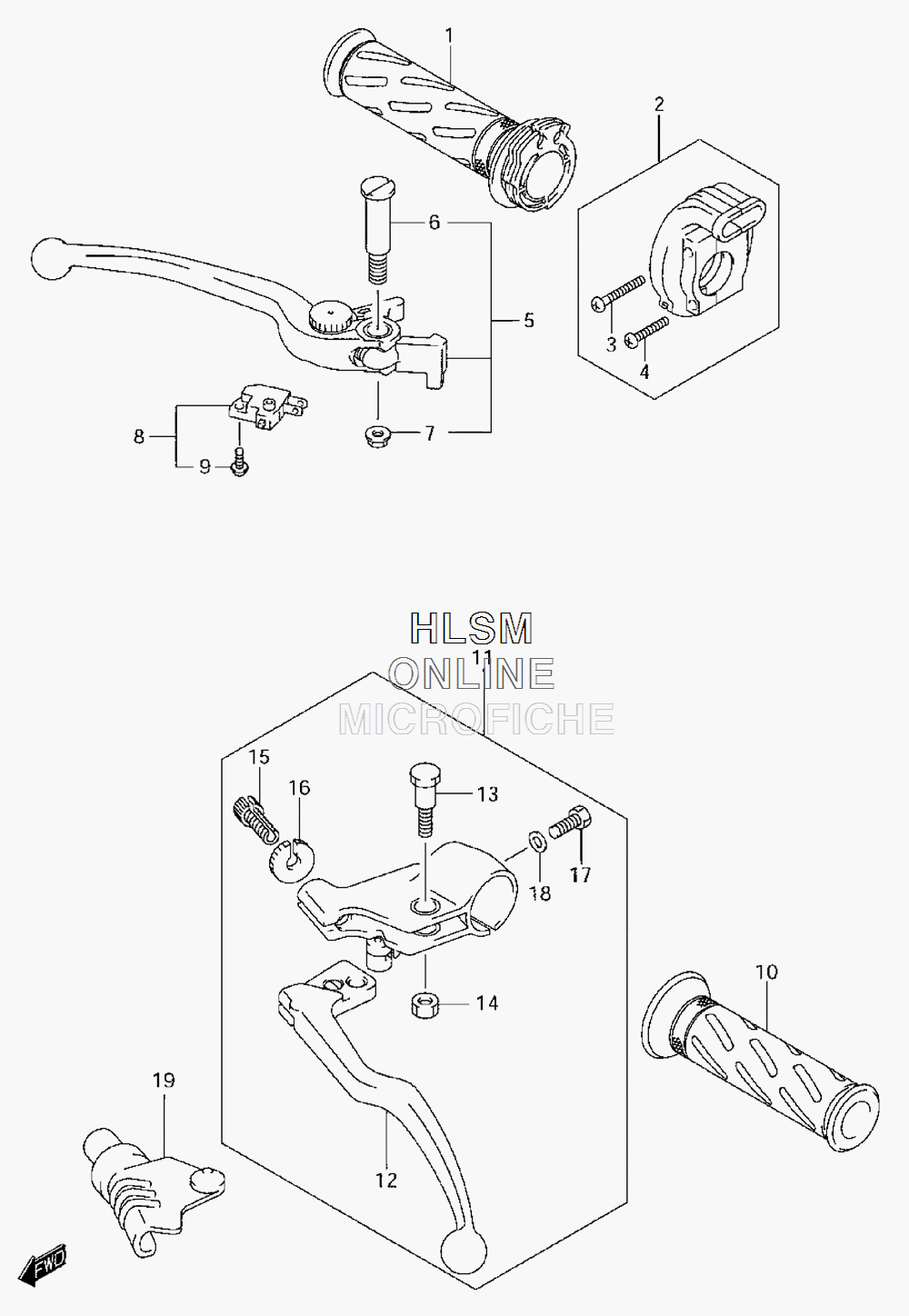

HANDLEBAR - LEVERS для Suzuki SV650SA K4 - 2004 года выпуска`
-
№АртикулНазвание
-
157110-45D02 GRIP, THROTTLEGRIP, THROTTLE
-
257100-14D00 CASE ASSY, THROTTLE (INC. 3 - 4)CASE ASSY, THROTTLE (INC. 3 - 4)
-
309125-05066 SCREWSCREW
-
402112-05203 SCREWSCREW
-
557300-33E01 LEVER ASSY, BRAKE (INC. 6 - 7)LEVER ASSY, BRAKE (INC. 6 - 7)
-
657431-17C00 BOLT, PIVOTBOLT, PIVOT
-
708316-10063 NUTNUT
-
857460-17C11 SWITCH ASSY, STOP (INC. 9)SWITCH ASSY, STOP (INC. 9)
-
957465-17C00 SCREWSCREW
-
1057211-22D01 GRIP, LEFT HANDGRIP, LEFT HAND
-
1157500-10D80 LEVER ASSY, CLUTCH (INC. 12 - 18)LEVER ASSY, CLUTCH (INC. 12 - 18)
-
1257620-27A31 LEVERLEVER
-
1357531-14A00 BOLT, PIVOTBOLT, PIVOT
-
1408319-21063 NUTNUT
-
1557441-11010 ADJUSTER, CABLEADJUSTER, CABLE
-
1657442-11010 NUT, ADJUSTERNUT, ADJUSTER
-
1701500-06203 BOLTBOLT
-
1808322-01063 WASHERWASHER
-
1957661-45C00 COVER, CLUTCHCOVER, CLUTCH
