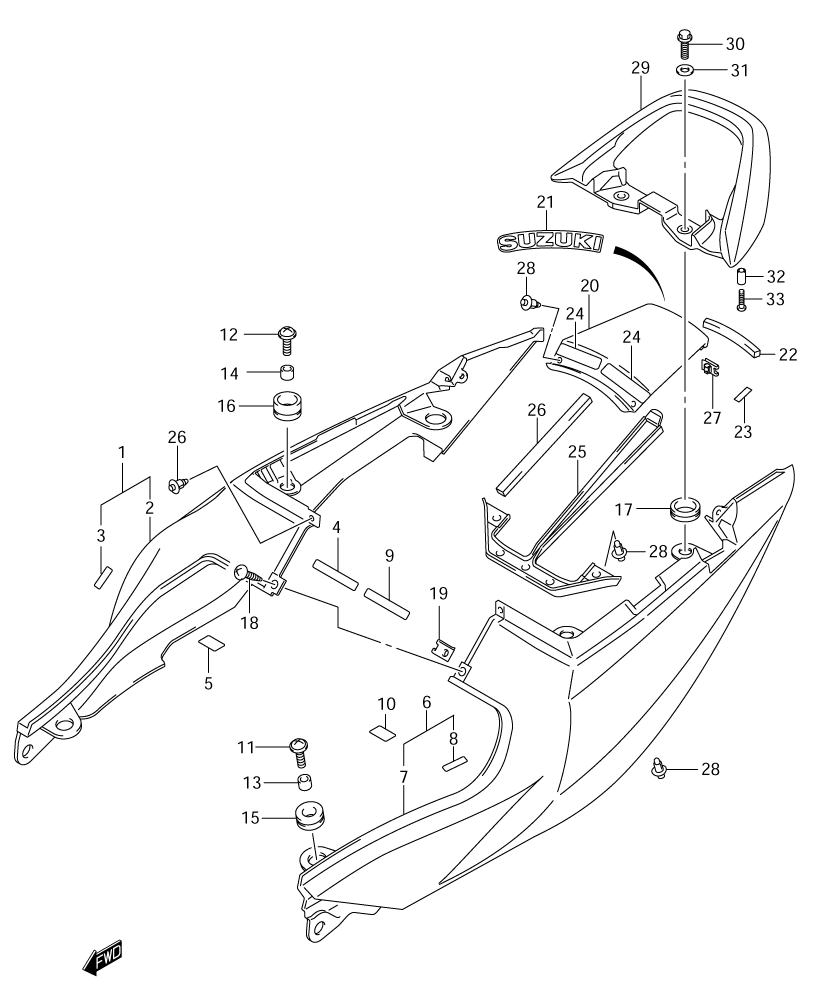

SEAT TAIL COVER для Suzuki SV1000S K4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1-1
    45501-16G20-Y7H COVER, SEAT TAIL, R (Y7H - BLUE)
    COVER, SEAT TAIL, R (Y7H - BLUE)
  • 1-2
    45501-16G20-YD8 COVER, SEAT TAIL, R (YD8 - SILVER)
    COVER, SEAT TAIL, R (YD8 - SILVER)
  • 1-3
    45501-16G20-YU7 COVER, SEAT TAIL, R (YU7 - RED)
    COVER, SEAT TAIL, R (YU7 - RED)
  • 2-1
    45511-16G01-Y7H ...COVER, SEAT TAIL, R (Y7H - BLUE)
    ...COVER, SEAT TAIL, R (Y7H - BLUE)
  • 2-2
    45511-16G01-YD8 ...COVER, SEAT TAIL, R (YD8 - SILVER)
    ...COVER, SEAT TAIL, R (YD8 - SILVER)
  • 2-3
    45511-16G01-YU7 ...COVER, SEAT TAIL, R (YU7 - RED)
    ...COVER, SEAT TAIL, R (YU7 - RED)
  • 3
    45516-42F00 ...TAPE, SEAT TAIL COVER FR
    ...TAPE, SEAT TAIL COVER FR
  • 4
    45517-16G10 ...TAPE, SEAT TAIL COVER FR NO.
    ...TAPE, SEAT TAIL COVER FR NO.
  • 5
    47161-10D00 ...TAPE, SEAT TAIL COVER FR NO.
    ...TAPE, SEAT TAIL COVER FR NO.
  • 6-1
    45502-16G20-Y7H COVER, SEAT TAIL, L (Y7H - BLUE)
    COVER, SEAT TAIL, L (Y7H - BLUE)
  • 6-2
    45502-16G20-YD8 COVER, SEAT TAIL, L (YD8 - SILVER)
    COVER, SEAT TAIL, L (YD8 - SILVER)
  • 6-3
    45502-16G20-YU7 COVER, SEAT TAIL, L (YU7 - RED)
    COVER, SEAT TAIL, L (YU7 - RED)
  • 7-1
    45512-16G01-Y7H ...COVER, SEAT TAIL, L (Y7H - BLUE)
    ...COVER, SEAT TAIL, L (Y7H - BLUE)
  • 7-2
    45512-16G01-YD8 ...COVER, SEAT TAIL, L (YD8 - SILVER)
    ...COVER, SEAT TAIL, L (YD8 - SILVER)
  • 7-3
    45512-16G01-YU7 ...COVER, SEAT TAIL, L (YU7 - RED)
    ...COVER, SEAT TAIL, L (YU7 - RED)
  • 8
    45516-42F00 ...TAPE, SEAT TAIL COVER FR
    ...TAPE, SEAT TAIL COVER FR
  • 9
    45517-16G10 ...TAPE, SEAT TAIL COVER FR NO.
    ...TAPE, SEAT TAIL COVER FR NO.
  • 10
    47161-10D00 ...TAPE, SEAT TAIL COVER FR NO.
    ...TAPE, SEAT TAIL COVER FR NO.
  • 11
    09136-06082 SCREW (FRONT)
    SCREW (FRONT)
  • 12
    09136-06082 SCREW (CENTER)
    SCREW (CENTER)
  • 13
    09180-06286 SPACER (FRONT)
    SPACER (FRONT)
  • 14
    09180-06286 SPACER (CENTER)
    SPACER (CENTER)
  • 15
    09320-10052 CUSHION (FRONT)
    CUSHION (FRONT)
  • 16
    47115-16G00 CUSHION (CENTER)
    CUSHION (CENTER)
  • 17
    09320-20010 CUSHION (REAR)
    CUSHION (REAR)
  • 18
    03241-15123 SCREW
    SCREW
  • 19
    09148-05038 NUT
    NUT
  • 20-1
    45503-16G00-Y7H COVER, SEAT TAIL, CENTER (Y7H - BLUE)
    COVER, SEAT TAIL, CENTER (Y7H - BLUE)
  • 20-2
    45503-16G00-YD8 COVER, SEAT TAIL, CENTER (YD8 - SILVER)
    COVER, SEAT TAIL, CENTER (YD8 - SILVER)
  • 20-3
    45503-16G00-YU7 COVER, SEAT TAIL, CENTER (YU7 - RED)
    COVER, SEAT TAIL, CENTER (YU7 - RED)
  • 21-1
    68161-16G00-YD8 ...EMBLEM, "SUZUKI" (YD8 - SILVER) (FOR Y7H - BLUE, YU7 - RED)
    ...EMBLEM, "SUZUKI" (YD8 - SILVER) (FOR Y7H - BLUE, YU7 - RED)
  • 21-2
    68161-16G00-YU8 ...EMBLEM, "SUZUKI" (YU8 - GRAY) (FOR YD8 - SILVER)
    ...EMBLEM, "SUZUKI" (YU8 - GRAY) (FOR YD8 - SILVER)
  • 22
    45518-16G00 ...CUSHION, SEAT TAIL COVER CTR
    ...CUSHION, SEAT TAIL COVER CTR
  • 23
    45517-16G00 ...TAPE, SEAT TAIL COVER
    ...TAPE, SEAT TAIL COVER
  • 24
    45516-42F00 ...TAPE
    ...TAPE
  • 25-1
    45514-16G00-Y7H COVER, SEAT TAIL, REAR (Y7H - BLUE)
    COVER, SEAT TAIL, REAR (Y7H - BLUE)
  • 25-2
    45514-16G00-YD8 COVER, SEAT TAIL, REAR (YD8 - SILVER)
    COVER, SEAT TAIL, REAR (YD8 - SILVER)
  • 25-3
    45514-16G00-YU7 COVER, SEAT TAIL, REAR (YU7 - RED)
    COVER, SEAT TAIL, REAR (YU7 - RED)
  • 26
    45519-16G00 CUSHION, SEAT TAIL COVER RR
    CUSHION, SEAT TAIL COVER RR
  • 27
    09148-06018 NUT
    NUT
  • 28
    09409-06314-5PK CLIP (5PK - BLACK)
    CLIP (5PK - BLACK)
  • 29-1
    46211-16G00-Y7H HANDLE, PILLION RIDER (Y7H - BLUE)
    HANDLE, PILLION RIDER (Y7H - BLUE)
  • 29-2
    46211-16G00-YD8 HANDLE, PILLION RIDER (YD8 - SILVER)
    HANDLE, PILLION RIDER (YD8 - SILVER)
  • 29-3
    46211-16G00-YU7 HANDLE, PILLION RIDER (YU7 - RED)
    HANDLE, PILLION RIDER (YU7 - RED)
  • 30
    01551-08403 BOLT
    BOLT
  • 31
    09160-08501 WASHER
    WASHER
  • 32
    09180-06271 SPACER
    SPACER
  • 33
    09139-06112 SCREW
    SCREW
