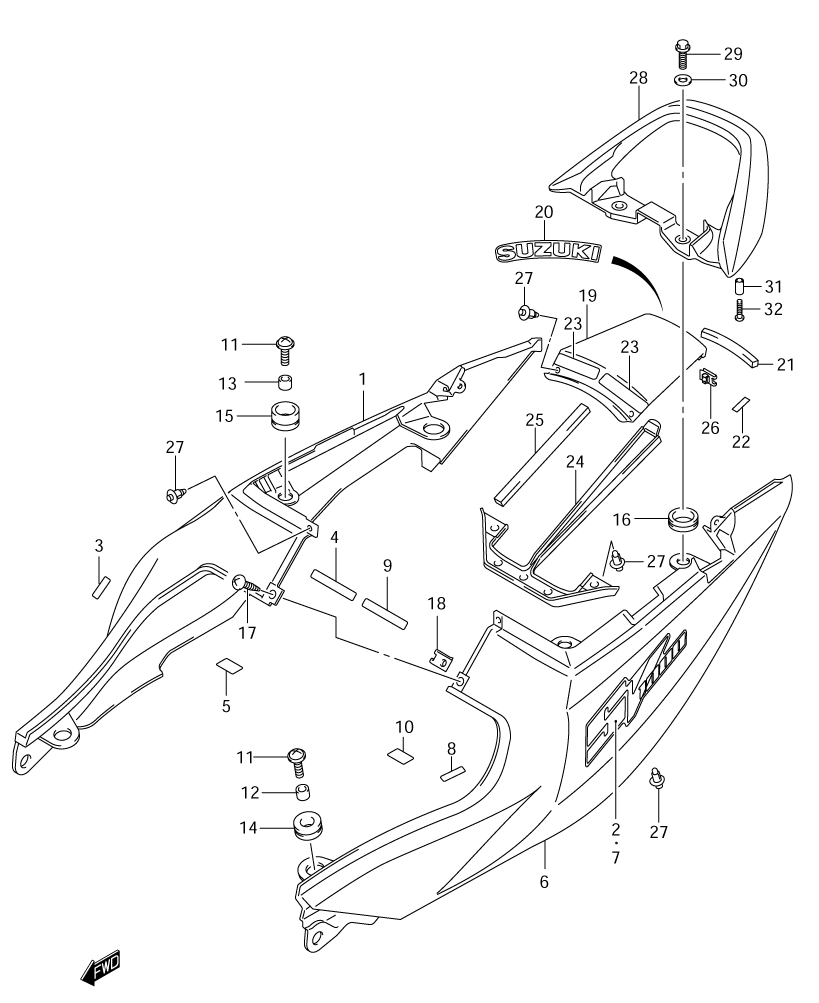

SEAT TAIL COVER (CANADA ONLY) для Suzuki SV1000 K4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1-1
    45501-16G01-Y7H COVER, SEAT TAIL, R (Y7H - BLUE)
    COVER, SEAT TAIL, R (Y7H - BLUE)
  • 1-2
    45501-16G01-YD8 COVER, SEAT TAIL, R (YD8 - SILVER)
    COVER, SEAT TAIL, R (YD8 - SILVER)
  • 1-3
    45501-16G01-YU7 COVER, SEAT TAIL, R (YU7 - RED)
    COVER, SEAT TAIL, R (YU7 - RED)
  • 2-1
    68161-16G10-APD ...EMBLEM, SEAT TAIL COVER (APD - SILVER/GRAY/MED. GRAY/BLUE) (FOR Y7H - BLUE)
    ...EMBLEM, SEAT TAIL COVER (APD - SILVER/GRAY/MED. GRAY/BLUE) (FOR Y7H - BLUE)
  • 2-2
    68161-16G10-APC ...EMBLEM, SEAT TAIL COVER (APC - ORANGE/GRAY/MED. GRAY/BLACK) (FOR YD8 - SILVER)
    ...EMBLEM, SEAT TAIL COVER (APC - ORANGE/GRAY/MED. GRAY/BLACK) (FOR YD8 - SILVER)
  • 2-3
    68161-16G10-APE ...EMBLEM, SEAT TAIL COVER (APE - SILVER/GRAY/MED. GRAY/RED) (FOR YU7 - RED)
    ...EMBLEM, SEAT TAIL COVER (APE - SILVER/GRAY/MED. GRAY/RED) (FOR YU7 - RED)
  • 3
    45516-42F00 ...TAPE, SEAT TAIL COVER FR
    ...TAPE, SEAT TAIL COVER FR
  • 4
    45517-16G10 ...TAPE, SEAT TAIL COVER FR NO.
    ...TAPE, SEAT TAIL COVER FR NO.
  • 5
    47161-10D00 ...TAPE, SEAT TAIL COVER FR NO.
    ...TAPE, SEAT TAIL COVER FR NO.
  • 6-1
    45502-16G01-Y7H COVER, SEAT TAIL, L (Y7H - BLUE)
    COVER, SEAT TAIL, L (Y7H - BLUE)
  • 6-2
    45502-16G01-YD8 COVER, SEAT TAIL, L (YD8 - SILVER)
    COVER, SEAT TAIL, L (YD8 - SILVER)
  • 6-3
    45502-16G01-YU7 COVER, SEAT TAIL, L (YU7 - RED)
    COVER, SEAT TAIL, L (YU7 - RED)
  • 7-1
    68161-16G10-APD ...EMBLEM, SEAT TAIL COVER (APD - SILVER/GRAY/MED. GRAY/BLUE) (FOR Y7H - BLUE)
    ...EMBLEM, SEAT TAIL COVER (APD - SILVER/GRAY/MED. GRAY/BLUE) (FOR Y7H - BLUE)
  • 7-2
    68161-16G10-APC ...EMBLEM, SEAT TAIL COVER (APC - ORANGE/GRAY/MED. GRAY/BLACK) (FOR YD8 - SILVER)
    ...EMBLEM, SEAT TAIL COVER (APC - ORANGE/GRAY/MED. GRAY/BLACK) (FOR YD8 - SILVER)
  • 7-3
    68161-16G10-APE ...EMBLEM, SEAT TAIL COVER (APE - SILVER/GRAY/MED. GRAY/RED) (FOR YU7 - RED)
    ...EMBLEM, SEAT TAIL COVER (APE - SILVER/GRAY/MED. GRAY/RED) (FOR YU7 - RED)
  • 8
    45516-42F00 ...TAPE, SEAT TAIL COVER FR
    ...TAPE, SEAT TAIL COVER FR
  • 9
    45517-16G10 ...TAPE, SEAT TAIL COVER FR NO.
    ...TAPE, SEAT TAIL COVER FR NO.
  • 10
    47161-10D00 ...TAPE, SEAT TAIL COVER FR NO.
    ...TAPE, SEAT TAIL COVER FR NO.
  • 11
    09136-06082 SCREW
    SCREW
  • 12
    09180-06286 SPACER (FRONT)
    SPACER (FRONT)
  • 13
    09180-06286 SPACER (CENTER)
    SPACER (CENTER)
  • 14
    09320-10052 CUSHION (FRONT)
    CUSHION (FRONT)
  • 15
    47115-16G00 CUSHION (CENTER)
    CUSHION (CENTER)
  • 16
    09320-20010 CUSHION (REAR)
    CUSHION (REAR)
  • 17
    03241-15123 SCREW
    SCREW
  • 18
    09148-05038 NUT
    NUT
  • 19-1
    45503-16G00-Y7H COVER, SEAT TAIL CENTER (Y7H - BLUE)
    COVER, SEAT TAIL CENTER (Y7H - BLUE)
  • 19-2
    45503-16G00-YD8 COVER, SEAT TAIL CENTER (YD8 - SILVER)
    COVER, SEAT TAIL CENTER (YD8 - SILVER)
  • 19-3
    45503-16G00-YU7 COVER, SEAT TAIL CENTER (YU7 - RED)
    COVER, SEAT TAIL CENTER (YU7 - RED)
  • 20-1
    68161-16G00-YD8 ...EMBLEM, "SUZUKI" (YD8 - SILVER) (FOR Y7H - BLUE, YU7 - RED)
    ...EMBLEM, "SUZUKI" (YD8 - SILVER) (FOR Y7H - BLUE, YU7 - RED)
  • 20-2
    68161-16G00-YU8 ...EMBLEM, "SUZUKI" (YU8 - GRAY) (FOR YD8 - SILVER)
    ...EMBLEM, "SUZUKI" (YU8 - GRAY) (FOR YD8 - SILVER)
  • 21
    45518-16G00 ...CUSHION
    ...CUSHION
  • 22
    45517-16G00 ...TAPE, SEAT TAIL COVER
    ...TAPE, SEAT TAIL COVER
  • 23
    45516-42F00 ...TAPE
    ...TAPE
  • 24-1
    45514-16G00-Y7H COVER, SEAT TAIL, REAR (Y7H - BLUE)
    COVER, SEAT TAIL, REAR (Y7H - BLUE)
  • 24-2
    45514-16G00-YD8 COVER, SEAT TAIL, REAR (YD8 - SILVER)
    COVER, SEAT TAIL, REAR (YD8 - SILVER)
  • 24-3
    45514-16G00-YU7 COVER, SEAT TAIL, REAR (YU7 - RED)
    COVER, SEAT TAIL, REAR (YU7 - RED)
  • 25
    45519-16G00 CUSHION, SEAT TAIL COVER RR
    CUSHION, SEAT TAIL COVER RR
  • 26
    09148-06018 NUT
    NUT
  • 27
    09409-06314-5PK CLIP (5PK - BLACK)
    CLIP (5PK - BLACK)
  • 28-1
    46211-16G00-Y7H HANDLE, PILLION RIDER (Y7H - BLUE)
    HANDLE, PILLION RIDER (Y7H - BLUE)
  • 28-2
    46211-16G00-YD8 HANDLE, PILLION RIDER (YD8 - SILVER)
    HANDLE, PILLION RIDER (YD8 - SILVER)
  • 28-3
    46211-16G00-YU7 HANDLE, PILLION RIDER (YU7 - RED)
    HANDLE, PILLION RIDER (YU7 - RED)
  • 29
    01551-08403 BOLT
    BOLT
  • 30
    09160-08501 WASHER
    WASHER
  • 31
    09180-06271 SPACER
    SPACER
  • 32
    09139-06112 SCREW
    SCREW
