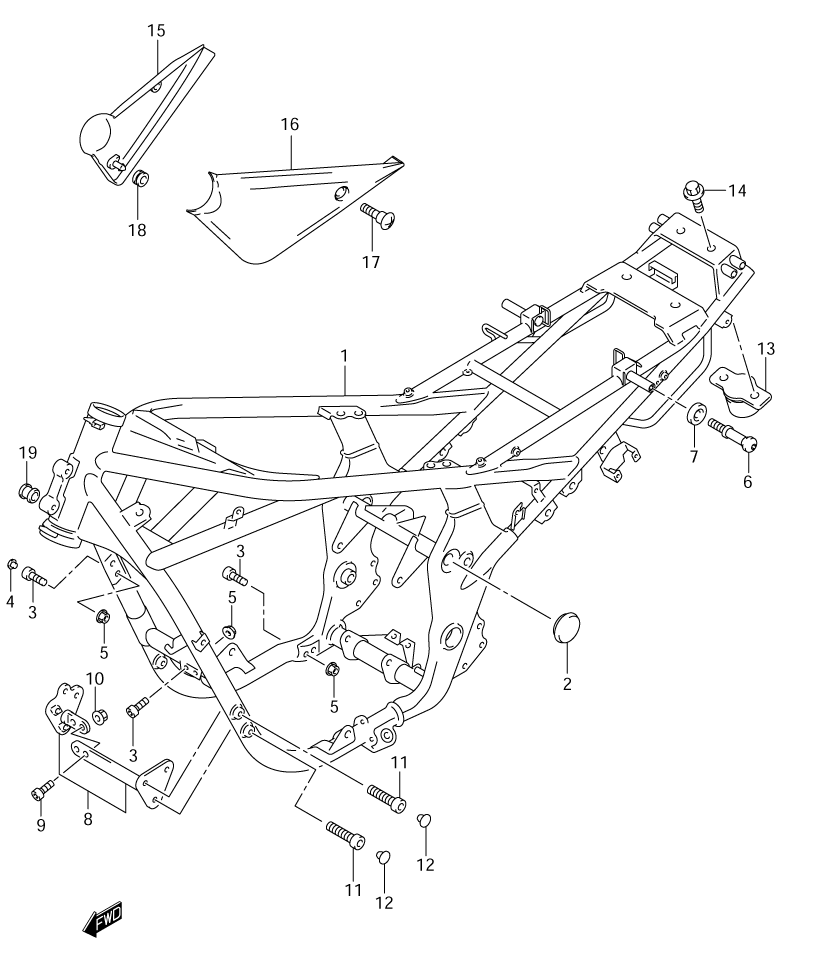

FRAME для Suzuki GSF1200S K4 - 2004 года выпуска`
-
№АртикулНазвание
-
1-341100-32F00-YD8 FRAME (YD8 - SILVER)FRAME (YD8 - SILVER)
-
1-441100-32F00-YAR FRAME (YAR -BLUE)FRAME (YAR -BLUE)
-
1-641100-32F00-YAU FRAME (YUA - GRAY)FRAME (YUA - GRAY)
-
243585-03F00 CAP, FRAME BODYCAP, FRAME BODY
-
309106-10068 BOLT (10X37)BOLT (10X37)
-
409250-08012 CAP (RIGHT)CAP (RIGHT)
-
508319-31103 NUTNUT
-
646315-31F00 HOOK, SEAT RAILHOOK, SEAT RAIL
-
746317-31F00 WASHER, HOOKWASHER, HOOK
-
8-341900-47F00-YD8 PLATE, ENGINE MOUNT (YD8 - SILVER)PLATE, ENGINE MOUNT (YD8 - SILVER)
-
8-441900-47F00-YAR PLATE, ENGINE MOUNT (YAR -BLUE)PLATE, ENGINE MOUNT (YAR -BLUE)
-
8-641900-47F00-YAU PLATE, ENGINE MOUNT (YUA - GRAY)PLATE, ENGINE MOUNT (YUA - GRAY)
-
907120-10303 ...BOLT...BOLT
-
1008319-31103 ...NUT...NUT
-
1107130-08503 BOLTBOLT
-
1209250-08016 CAPCAP
-
1342550-32F00 DAMPER, FRAME (REAR)DAMPER, FRAME (REAR)
-
1401550-06123 BOLTBOLT
