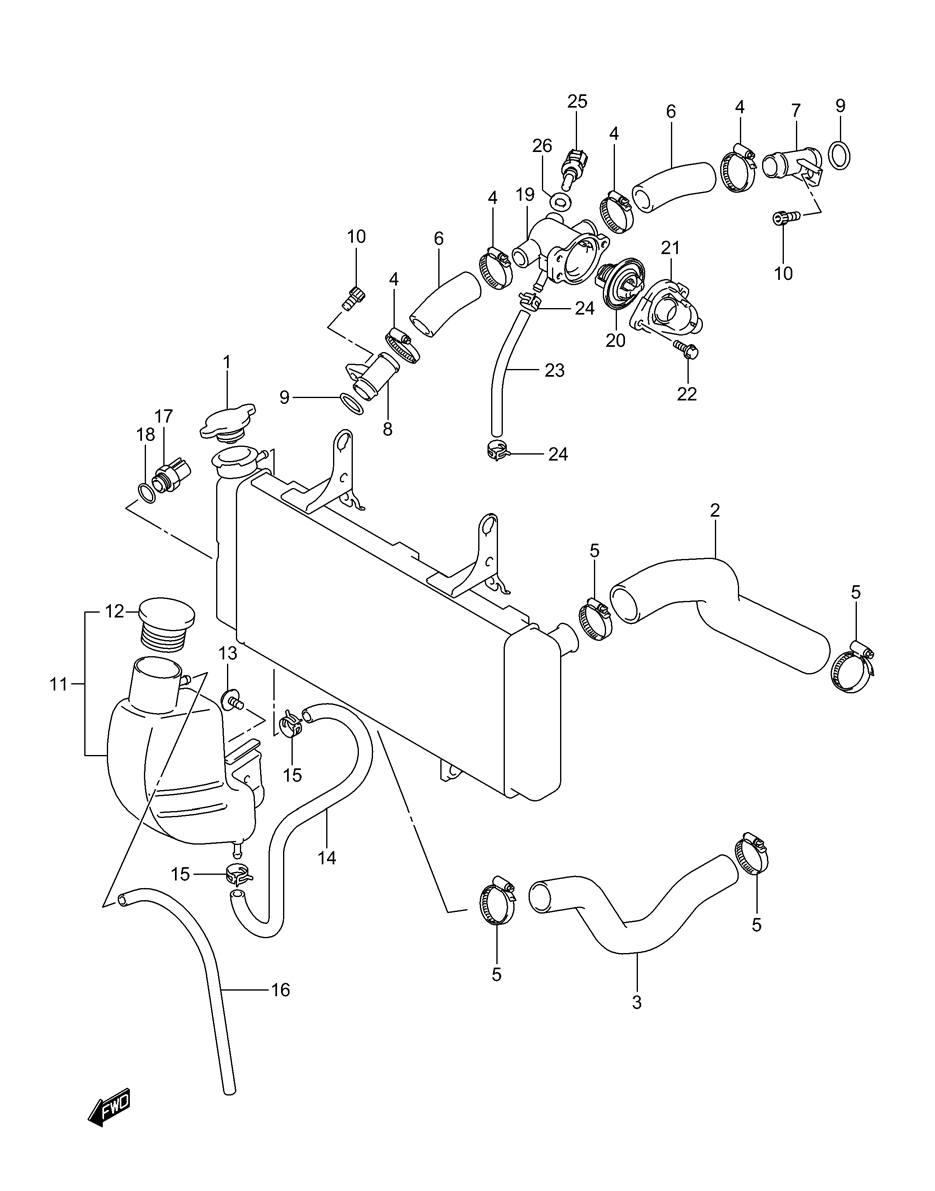

RADIATOR HOSE W/ RESERVOIR для Suzuki DL1000 K4 - 2004 года выпуска
-
№АртикулНазвание
-
117730-12C20 CAP, RADIATORCAP, RADIATOR
-
217851-06G00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
317852-06G00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
409402-28511 CLAMPCLAMP
-
509402-38511 CLAMPCLAMP
-
617853-02F00 HOSE, CONNECTOR INLETHOSE, CONNECTOR INLET
-
717890-06G20 UNION, CONNECTOR HOSEUNION, CONNECTOR HOSE
-
817890-06G20 UNION, CONNECTOR HOSEUNION, CONNECTOR HOSE
-
909280-18009 O RINGO RING
-
1007130-06123 BOLTBOLT
-
1117910-06G10 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1217931-06G00 CAPCAP
-
1309111-06085 BOLTBOLT
-
1417981-19F00 HOSE, RESERVOIR TANK INLETHOSE, RESERVOIR TANK INLET
-
1509401-08411 CLIPCLIP
-
1609352-50901-00B HOSE, RESERVOIR TANKHOSE, RESERVOIR TANK
-
1717680-33E00 SWITCH, RADIATOR FANSWITCH, RADIATOR FAN
-
1817689-50F00 O RINGO RING
-
1917662-02F11 CONNECTOR, THERMOSTAT INLETCONNECTOR, THERMOSTAT INLET
-
2017670-06G50 THERMOSTATTHERMOSTAT
-
2117663-42E00 CAP, THERMOSTAT CONNECTORCAP, THERMOSTAT CONNECTOR
-
2201550-06163 BOLT, CONNECTORBOLT, CONNECTOR
-
2317856-16G00 HOSE, CONNECTOR TO WATER PUMPHOSE, CONNECTOR TO WATER PUMP
-
2317856-16G10 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
2409401-12409 CLIPCLIP
-
2513650-57F00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
2609168-12017 GASKET, TEMP SENSORGASKET, TEMP SENSOR
