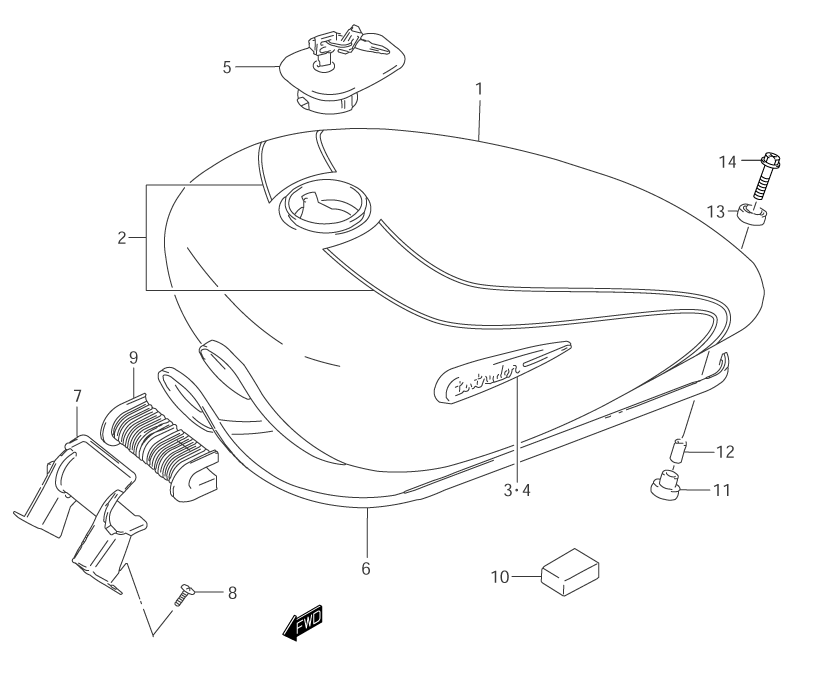

FUEL TANK для Suzuki VS800GL K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    44100-38EH0-33J TANK ASSY., FUEL (33J - BLACK) (EXCEPT CALIF.)
    TANK ASSY., FUEL (33J - BLACK) (EXCEPT CALIF.)
  • 1-2
    44100-38EH0-YD8 TANK ASSY., FUEL (YD8 - SILVER) (EXCEPT CALIF.)
    TANK ASSY., FUEL (YD8 - SILVER) (EXCEPT CALIF.)
  • 1-3
    44100-38EJ0-33J TANK ASSY., FUEL (33J - BLACK) (CALIF. ONLY)
    TANK ASSY., FUEL (33J - BLACK) (CALIF. ONLY)
  • 1-4
    44100-38EJ0-YD8 TANK ASSY., FUEL (YD8 - SILVER) (CALIF. ONLY)
    TANK ASSY., FUEL (YD8 - SILVER) (CALIF. ONLY)
  • 2-1
    68110-38E50-KY4 ...TAPE SET, FUEL TANK (KY4 - SILVER/MAROON/SILVER/BLACK) (FOR 33J - BLACK) (EXCEPT CALIF.)
    ...TAPE SET, FUEL TANK (KY4 - SILVER/MAROON/SILVER/BLACK) (FOR 33J - BLACK) (EXCEPT CALIF.)
  • 2-2
    68110-38E60-KY4 ...TAPE SET, FUEL TANK (KY4 - SILVER/MAROON/SILVER/BLACK) (FOR 33J - BLACK) (CALIF. ONLY)
    ...TAPE SET, FUEL TANK (KY4 - SILVER/MAROON/SILVER/BLACK) (FOR 33J - BLACK) (CALIF. ONLY)
  • 2-3
    68110-38E50-KY5 ...TAPE SET, FUEL TANK (KY5 - SILVER/BLUE/SILVER/SILVER) (FOR YD8 - SILVER) (EXCEPT CALIF.)
    ...TAPE SET, FUEL TANK (KY5 - SILVER/BLUE/SILVER/SILVER) (FOR YD8 - SILVER) (EXCEPT CALIF.)
  • 2-4
    68110-38E60-KY5 ...TAPE SET, FUEL TANK (KY5 - SILVER/BLUE/SILVER/SILVER) (FOR YD8 - SILVER) (CALIF. ONLY)
    ...TAPE SET, FUEL TANK (KY5 - SILVER/BLUE/SILVER/SILVER) (FOR YD8 - SILVER) (CALIF. ONLY)
  • 3
    68111-38E00 EMBLEM, (RIGHT)
    EMBLEM, (RIGHT)
  • 4
    68121-38E00 EMBLEM, (LEFT)
    EMBLEM, (LEFT)
  • 5-1
    44200-38820 CAP SET, FUEL TANK (EXCEPT CALIF.)
    CAP SET, FUEL TANK (EXCEPT CALIF.)
  • 5-2
    44200-38850 CAP SET, FUEL TANK (CALIF. ONLY)
    CAP SET, FUEL TANK (CALIF. ONLY)
  • 5-3
    44200-38860 CAP SET, FUEL TANK (OPT) (CALIF. ONLY)
    CAP SET, FUEL TANK (OPT) (CALIF. ONLY)
  • 5-4
    44200-38870 CAP SET, FUEL TANK (OPT) (CALIF. ONLY)
    CAP SET, FUEL TANK (OPT) (CALIF. ONLY)
  • 6
    68241-04X50-00B MOLDING, FUEL TANK
    MOLDING, FUEL TANK
  • 7
    44250-38A01-019 BRACKET, FRONT
    BRACKET, FRONT
  • 8
    02112-76163 SCREW, BRACKET
    SCREW, BRACKET
  • 9
    44511-38A01 CUSHION, FRONT
    CUSHION, FRONT
  • 10
    44512-38B00 CUSHION, SIDE
    CUSHION, SIDE
  • 11
    09320-10020 CUSHION, REAR LOWER
    CUSHION, REAR LOWER
  • 12
    09180-06273 SPACER
    SPACER
  • 13
    09320-14013 CUSHION, REAR UPPER
    CUSHION, REAR UPPER
  • 14
    09136-06095 BOLT
    BOLT
