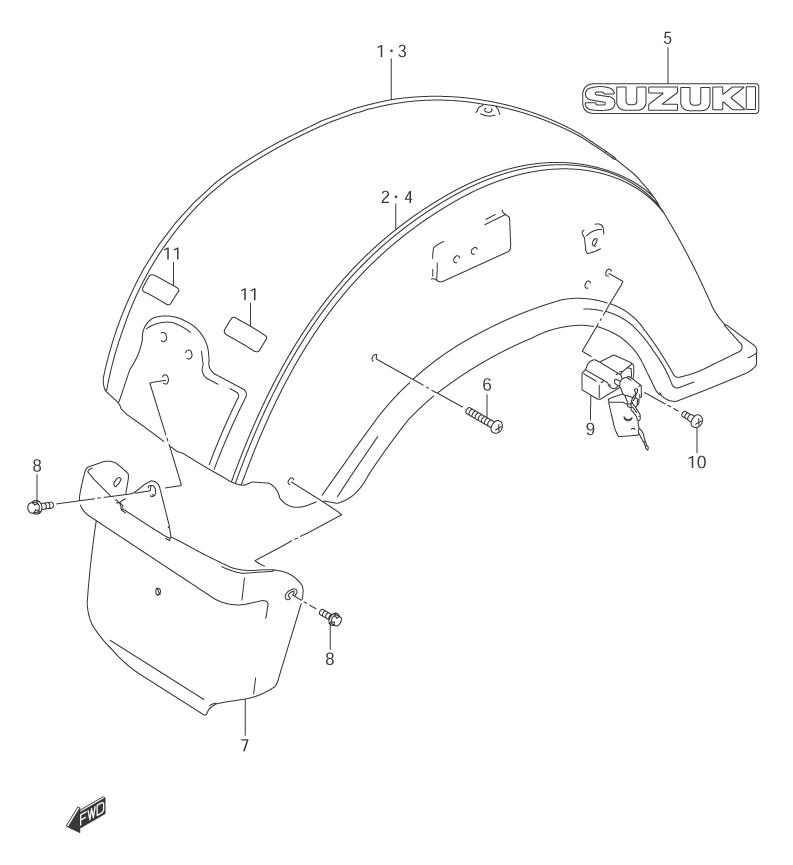

FENDER - REAR для Suzuki VL1500 K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    63100-10F10-33J FENDER, (REAR) (33J - BLACK)
    FENDER, (REAR) (33J - BLACK)
  • 1-2
    63100-10F10-LA1 FENDER, (REAR) (LA1 - SILVER/GRAY)
    FENDER, (REAR) (LA1 - SILVER/GRAY)
  • 1-3
    63100-10F10-LT9 FENDER, (REAR) (LT9 - SILVER/GREEN)
    FENDER, (REAR) (LT9 - SILVER/GREEN)
  • 2-1
    68170-10F10-LW9 ...TAPE SET (LW9 - MAROON/SILVER/BLACK) (FOR 33J - BLACK)
    ...TAPE SET (LW9 - MAROON/SILVER/BLACK) (FOR 33J - BLACK)
  • 2-2
    68170-10F10-LA1 ...TAPE SET (LA1 - SILVER/GRAY) (FOR LA1 - SILVER/GRAY)
    ...TAPE SET (LA1 - SILVER/GRAY) (FOR LA1 - SILVER/GRAY)
  • 2-3
    68170-10F10-LT9 ...TAPE SET (LT9 - SILVER/GREEN) (FOR LT9 - SILVER/GREEN)
    ...TAPE SET (LT9 - SILVER/GREEN) (FOR LT9 - SILVER/GREEN)
  • 6
    09106-08156 BOLT
    BOLT
  • 7
    63411-10F01 MUD GUARD, (FRONT)
    MUD GUARD, (FRONT)
  • 8
    09113-06001 BOLT
    BOLT
  • 9
    95700-10840 LOCK SET, HELMET
    LOCK SET, HELMET
  • 10
    09139-06089 SCREW
    SCREW
  • 11
    63131-10F00 TAPE, (REAR) FENDER
    TAPE, (REAR) FENDER
