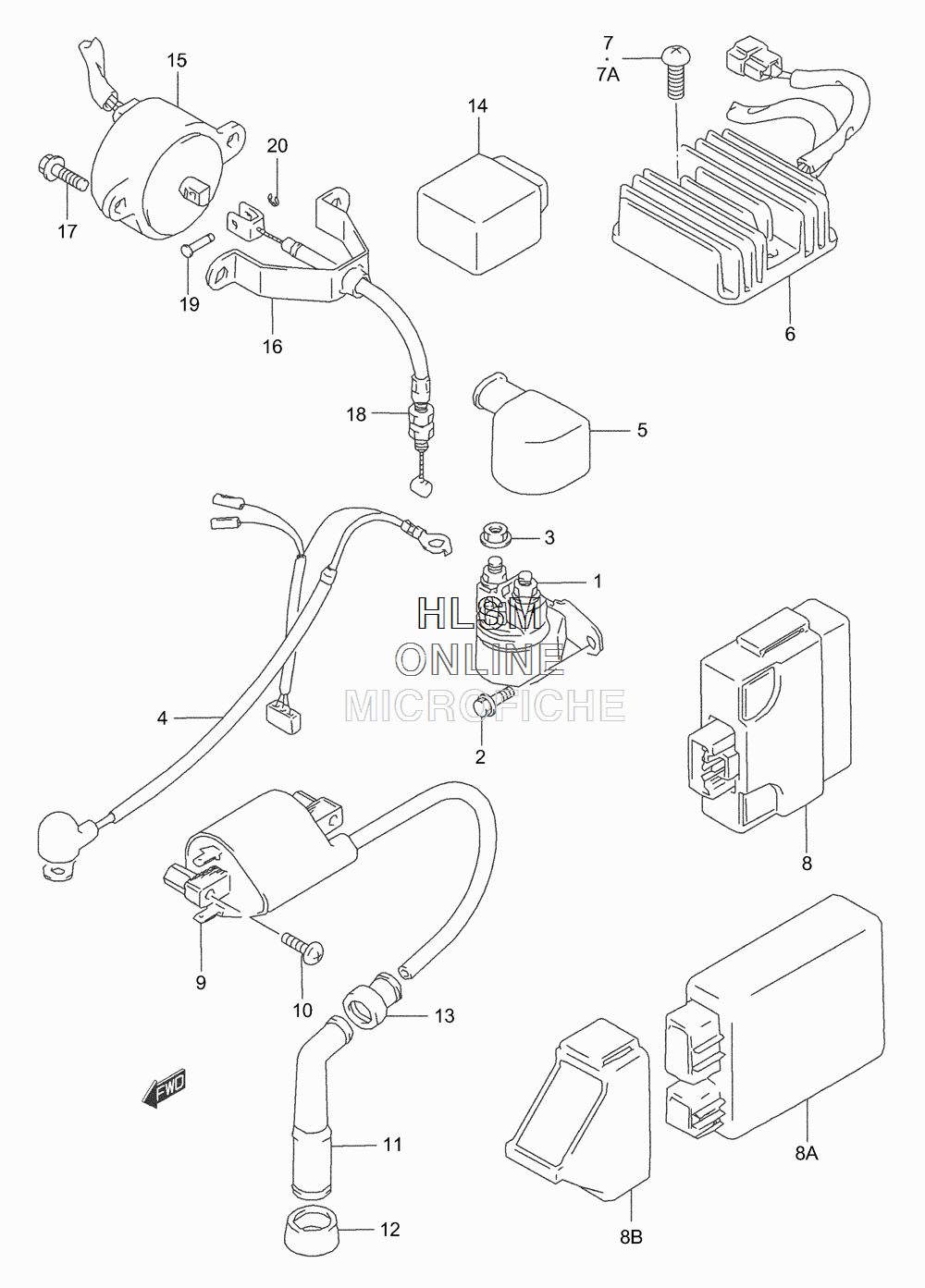

ELECTRICAL для Suzuki LS650P K3 - 2003 года выпуска
-
№АртикулНазвание
-
131800-49100 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
201550-06103 BOLTBOLT
-
308361-35068 NUTNUT
-
433850-24B10 WIRE, STARTING MOTORWIRE, STARTING MOTOR
-
533624-49401 CAP, STARTER RELAYCAP, STARTER RELAY
-
632800-24B01 RECTIFIER ASSYRECTIFIER ASSY
-
7A02162-06163 SCREWSCREW
-
832900-24B10 IGNITER ASSY (UP TO FRAME W2101801)IGNITER ASSY (UP TO FRAME W2101801)
-
8A32900-24B11 IGNITER ASSY (FRAME W2101802 AND ABOVE)IGNITER ASSY (FRAME W2101802 AND ABOVE)
-
8B32980-24B00 CUSHION, IGNITER (FRAME W2101802 AND ABOVE)CUSHION, IGNITER (FRAME W2101802 AND ABOVE)
-
933410-24B00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1002142-05123 SCREWSCREW
-
1133510-45010 CAP, SPARK PLUGCAP, SPARK PLUG
-
1233541-24510 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
1333542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1432910-24B10 CONTROL UNIT, DECOMPCONTROL UNIT, DECOMP
-
1533970-24B00 SOLENOID ASSY, DECOMPSOLENOID ASSY, DECOMP
-
1633971-24B00 BRACKET, DECOMP SOLENOIDBRACKET, DECOMP SOLENOID
-
1701550-06163 BOLTBOLT
-
1858900-24B00 CABLE ASSY, DECOMPCABLE ASSY, DECOMP
-
1909209-04020 PINPIN
-
2008332-11033 E RINGE RING
