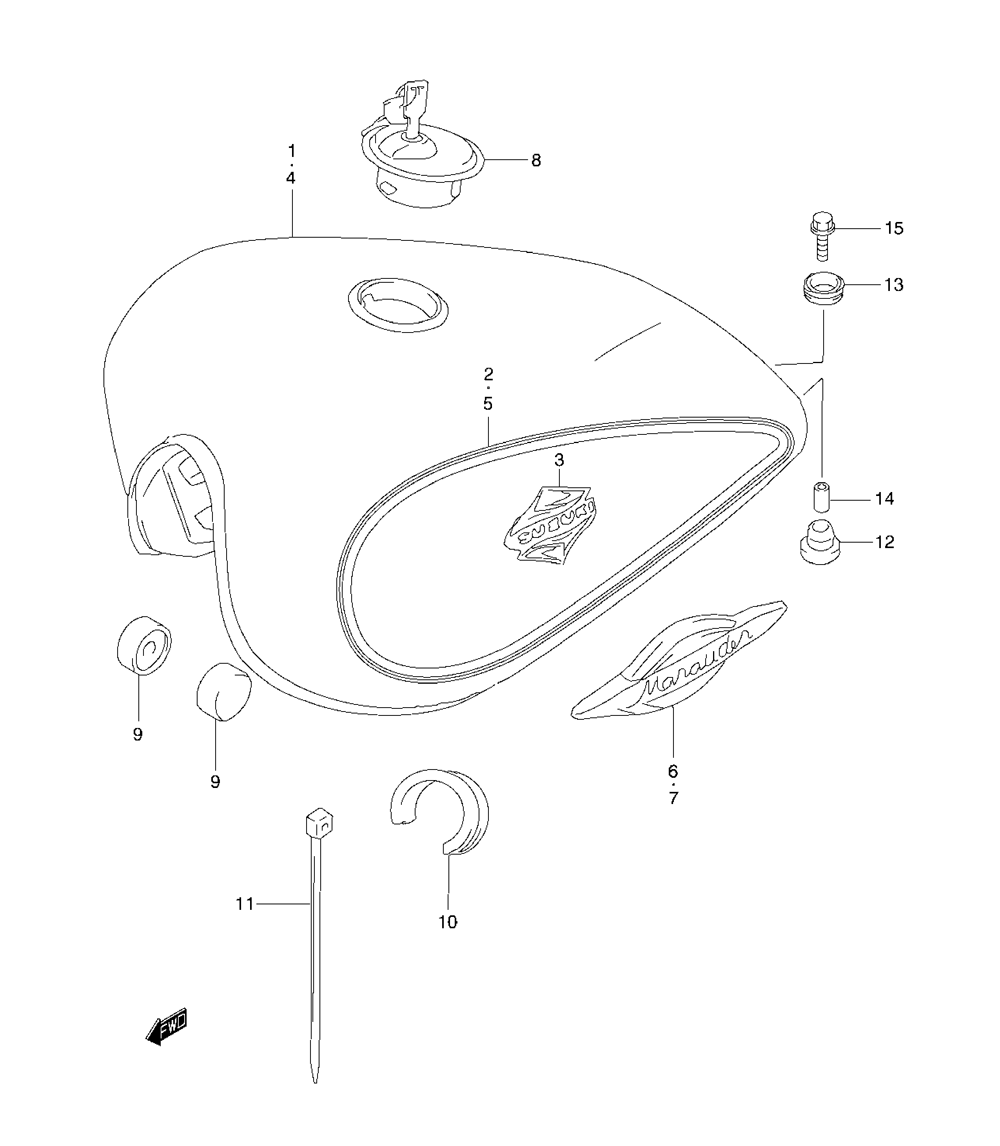

FUEL TANK для Suzuki GZ250 K3 - 2003 года выпуска
-
№АртикулНазвание
-
144100-12FG1-Y7L TANK ASSY, FUEL (BLACK, Y7L) (EXCEPT CALIF)TANK ASSY, FUEL (BLACK, Y7L) (EXCEPT CALIF)
-
144100-12FG1-Y7H TANK ASSY, FUEL (BLUE, Y7H) (EXCEPT CALIF)TANK ASSY, FUEL (BLUE, Y7H) (EXCEPT CALIF)
-
144100-12FF1-Y7L TANK ASSY, FUEL (BLACK, Y7L) (CALIF ONLY)TANK ASSY, FUEL (BLACK, Y7L) (CALIF ONLY)
-
144100-12FF1-Y7H TANK ASSY, FUEL (BLUE, Y7H) (CALIF ONLY)TANK ASSY, FUEL (BLUE, Y7H) (CALIF ONLY)
-
268110-12F50-LK2 TAPE SET, FUEL TANK (FOR Y7L) (US ONLY)TAPE SET, FUEL TANK (FOR Y7L) (US ONLY)
-
268110-12F50-LK3 TAPE SET, FUEL TANK (FOR Y7H) (US ONLY)TAPE SET, FUEL TANK (FOR Y7H) (US ONLY)
-
368111-38A21-CH1 EMBLEM, FUEL TANK (FOR Y7L) (US ONLY)EMBLEM, FUEL TANK (FOR Y7L) (US ONLY)
-
368111-38A21-LK4 EMBLEM, FUEL TANK (FOR Y7H) (US ONLY)EMBLEM, FUEL TANK (FOR Y7H) (US ONLY)
-
444100-12FE1-Y7L TANK ASSY, FUEL (BLACK, Y7L) (CANADA ONLY)TANK ASSY, FUEL (BLACK, Y7L) (CANADA ONLY)
-
444100-12FE1-Y7H TANK ASSY, FUEL (BLUE, Y7H) (CANADA ONLY)TANK ASSY, FUEL (BLUE, Y7H) (CANADA ONLY)
-
568110-12F50-LK2 TAPE SET, FUEL TANK (FOR Y7L) (CANADA ONLY)TAPE SET, FUEL TANK (FOR Y7L) (CANADA ONLY)
-
568110-12F50-LK3 TAPE SET, FUEL TANK (FOR Y7H) (CANADA ONLY)TAPE SET, FUEL TANK (FOR Y7H) (CANADA ONLY)
-
668111C12F00J000 EMBLEM, FUEL TANK RIGHT HAND (CANADA ONLY)EMBLEM, FUEL TANK RIGHT HAND (CANADA ONLY)
-
768121C12F00J000 EMBLEM, FUEL TANK LEFT HAND (CANADA ONLY)EMBLEM, FUEL TANK LEFT HAND (CANADA ONLY)
-
844200-12870 CAP SET, FUEL TANK (EXCEPT CALIF)CAP SET, FUEL TANK (EXCEPT CALIF)
-
844200-38850 CAP SET, FUEL TANK (CALIF ONLY)CAP SET, FUEL TANK (CALIF ONLY)
-
909329-10007 CUSHIONCUSHION
-
1044541-03F00 CUSHION, FUEL TANK (CENTER)CUSHION, FUEL TANK (CENTER)
-
1109407-20405 CLAMP (L:195)CLAMP (L:195)
-
1209320-10020 CUSHIONCUSHION
-
1344512-42E00 CUSHION, FUEL TANK REARCUSHION, FUEL TANK REAR
-
1409180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
1501550-06303 BOLTBOLT
