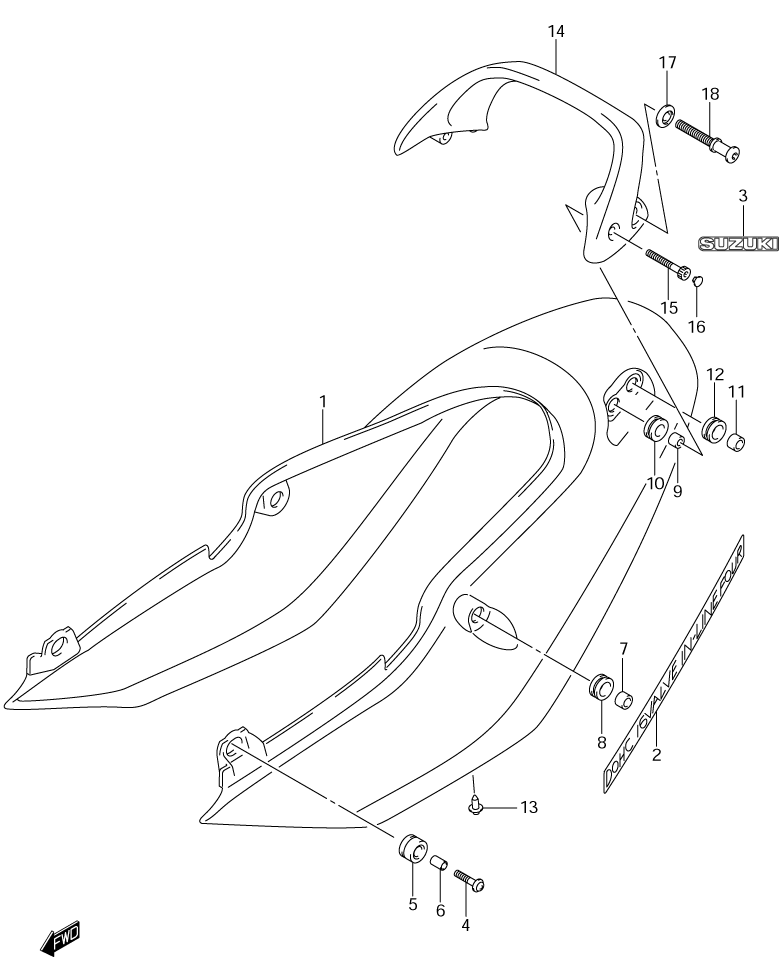

SEAT TAIL COVER для Suzuki GSF600S K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    45510-31F20-YU9 COVER, SEAT TAIL (YU9 - YELLOW) (FOR YU9)
    COVER, SEAT TAIL (YU9 - YELLOW) (FOR YU9)
  • 1-2
    45510-31F20-2VX COVER, SEAT TAIL (2VX - BLACK) (FOR 33J)
    COVER, SEAT TAIL (2VX - BLACK) (FOR 33J)
  • 1-3
    45510-31F20-YBA COVER, SEAT TAIL (YBA - BLUE) (FOR YBA)
    COVER, SEAT TAIL (YBA - BLUE) (FOR YBA)
  • 1-4
    45510-31F20-YMX COVER, SEAT TAIL (YMX - SILVER) (FOR YD8)
    COVER, SEAT TAIL (YMX - SILVER) (FOR YD8)
  • 2-1
    68131-26E30-1ZZ ...EMBLEM, TAIL COVER (1ZZ - GRAY) (FOR YU9)
    ...EMBLEM, TAIL COVER (1ZZ - GRAY) (FOR YU9)
  • 2-2
    68131-26E30-17U ...EMBLEM, TAIL COVER (17U - GRAY) (FOR YMX)
    ...EMBLEM, TAIL COVER (17U - GRAY) (FOR YMX)
  • 2-3
    68131-26E30-YD8 ...EMBLEM, TAIL COVER (YD8 - SILVER) (FOR 2VX,YBA)
    ...EMBLEM, TAIL COVER (YD8 - SILVER) (FOR 2VX,YBA)
  • 3-1
    68165-16B00-1ZZ ...EMBLEM, "SUZUKI" (1ZZ - GRAY) (FOR YU9)
    ...EMBLEM, "SUZUKI" (1ZZ - GRAY) (FOR YU9)
  • 3-2
    68165-16B00-17U ...EMBLEM, "SUZUKI" (17U - GRAY) (FOR YMX)
    ...EMBLEM, "SUZUKI" (17U - GRAY) (FOR YMX)
  • 3-3
    68165-16B00-YD8 ...EMBLEM, "SUZUKI" (YD8 - SILVER) (FOR 2VX,YBA)
    ...EMBLEM, "SUZUKI" (YD8 - SILVER) (FOR 2VX,YBA)
  • 4
    09136-06083 SCREW (FRONT) (6X30)
    SCREW (FRONT) (6X30)
  • 5
    47115-19F00 CUSHION (FRONT) (10X22X15)
    CUSHION (FRONT) (10X22X15)
  • 6
    09180-06291 SPACER (FRONT) (6.5X10X13)
    SPACER (FRONT) (6.5X10X13)
  • 7
    09180-08199 SPACER (CENTER) (8.5X14X9)
    SPACER (CENTER) (8.5X14X9)
  • 8
    09320-14023 CUSHION (CENTER) (14X22X9.5)
    CUSHION (CENTER) (14X22X9.5)
  • 9
    09180-06300 SPACER (REAR/FRONT) (6.5X12X9)
    SPACER (REAR/FRONT) (6.5X12X9)
  • 10
    09320-12068 CUSHION (REAR/FRONT) (12X22X9.5)
    CUSHION (REAR/FRONT) (12X22X9.5)
  • 11
    09180-08199 SPACER (REAR) (8.5X14X9)
    SPACER (REAR) (8.5X14X9)
  • 12
    09320-14023 CUSHION (REAR) (14X12X9.5)
    CUSHION (REAR) (14X12X9.5)
  • 13
    09409-06314-5PK CLIP (5PK - BLACK)
    CLIP (5PK - BLACK)
  • 14-1
    46210-31F00-YU9 HANDLE, PILLION RIDER (YU9 - YELLOW)
    HANDLE, PILLION RIDER (YU9 - YELLOW)
  • 14-2
    46210-31F00-33J HANDLE, PILLION RIDER (33J - BLACK)
    HANDLE, PILLION RIDER (33J - BLACK)
  • 14-3
    46210-31F00-YBA HANDLE, PILLION RIDER (YBA - BLUE)
    HANDLE, PILLION RIDER (YBA - BLUE)
  • 14-4
    46210-31F00-YD8 HANDLE, PILLION RIDER (YD8 - SILVER)
    HANDLE, PILLION RIDER (YD8 - SILVER)
  • 15
    07120-06453 BOLT
    BOLT
  • 16
    09250-05009 CAP
    CAP
  • 17
    46317-31F00 WASHER, HOOK
    WASHER, HOOK
  • 18
    46316-31F00 HOOK, HANDLE
    HOOK, HANDLE
