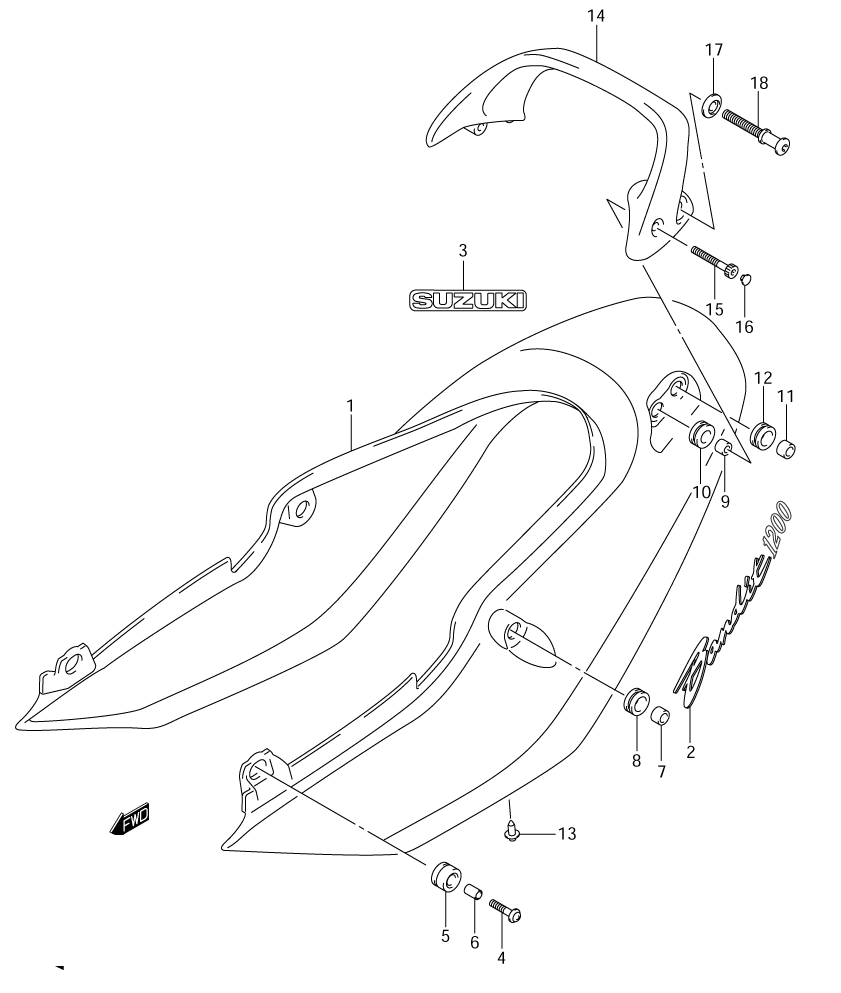

SEAT TAIL COVER для Suzuki GSF1200 K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    45510-32F20-YV4 COVER, SEAT TAIL (YV4 - GREEN)
    COVER, SEAT TAIL (YV4 - GREEN)
  • 1-2
    45510-32F20-YAR COVER, SEAT TAIL (YAR -BLUE)
    COVER, SEAT TAIL (YAR -BLUE)
  • 1-3
    45510-32F20-YMX COVER, SEAT TAIL (YD8 - SILVER)
    COVER, SEAT TAIL (YD8 - SILVER)
  • 2-1
    68131-32F00-LU8 ...EMBLEM, TAIL COVER (LU8 - SILVER/BROWN/GREEN) (FOR YV4 - GREEN)
    ...EMBLEM, TAIL COVER (LU8 - SILVER/BROWN/GREEN) (FOR YV4 - GREEN)
  • 2-2
    68131-32F00-LU9 ...EMBLEM, TAIL COVER (LU9 - SILVER/RED/BLUE) (FOR YAR -BLUE)
    ...EMBLEM, TAIL COVER (LU9 - SILVER/RED/BLUE) (FOR YAR -BLUE)
  • 2-3
    68131-32F00-LU7 ...EMBLEM, TAIL COVER (LU7 - BLACK/BLUE/SILVER) (FOR YD8 - SILVER)
    ...EMBLEM, TAIL COVER (LU7 - BLACK/BLUE/SILVER) (FOR YD8 - SILVER)
  • 3-1
    68165-32F00-LU5 ...EMBLEM, "SUZUKI" (LU5 - SILVER/GREEN) (FOR YV4 - GREEN)
    ...EMBLEM, "SUZUKI" (LU5 - SILVER/GREEN) (FOR YV4 - GREEN)
  • 3-2
    68165-32F00-LU6 ...EMBLEM, "SUZUKI" (LU6 - SILVER/BLUE) (FOR YAR -BLUE)
    ...EMBLEM, "SUZUKI" (LU6 - SILVER/BLUE) (FOR YAR -BLUE)
  • 3-3
    68165-32F00-GW5 ...EMBLEM, "SUZUKI" (GW5 - BLACK/SILVER) (FOR YD8 - SILVER)
    ...EMBLEM, "SUZUKI" (GW5 - BLACK/SILVER) (FOR YD8 - SILVER)
  • 4
    09136-06083 SCREW, (FRONT) (6X30)
    SCREW, (FRONT) (6X30)
  • 5
    47115-19F00 CUSHION, (FRONT) (10X22X15)
    CUSHION, (FRONT) (10X22X15)
  • 6
    09180-06291 SPACER, (FRONT) (6.5X10X13)
    SPACER, (FRONT) (6.5X10X13)
  • 7
    09180-08199 SPACER, CENTER (8.5X14X9)
    SPACER, CENTER (8.5X14X9)
  • 8
    09320-14023 CUSHION, CENTER (14X22X9.5)
    CUSHION, CENTER (14X22X9.5)
  • 9
    09180-06300 SPACER, RR-FR (6.5X12X9)
    SPACER, RR-FR (6.5X12X9)
  • 10
    09320-12068 CUSHION, RR-FR (12X22X9.5)
    CUSHION, RR-FR (12X22X9.5)
  • 11
    09180-08199 SPACER, RR-RR (8.5X14X9)
    SPACER, RR-RR (8.5X14X9)
  • 12
    09320-14023 CUSHION, RR-RR (14X12X9.5)
    CUSHION, RR-RR (14X12X9.5)
  • 13
    09409-06314-5PK CLIP
    CLIP
  • 14-1
    46211-32F00-YV4 HANDLE, PILLION RIDER (YV4 - GREEN)
    HANDLE, PILLION RIDER (YV4 - GREEN)
  • 14-2
    46211-32F00-Y7H HANDLE, PILLION RIDER (YAR -BLUE)
    HANDLE, PILLION RIDER (YAR -BLUE)
  • 14-3
    46211-32F00-YAR HANDLE, PILLION RIDER (YD8 - SILVER)
    HANDLE, PILLION RIDER (YD8 - SILVER)
  • 15
    07120-06453 BOLT
    BOLT
  • 16
    09250-05009 CAP
    CAP
  • 17
    46317-31F00 WASHER, HOOK
    WASHER, HOOK
  • 18
    46316-31F00 HOOK, HANDLE
    HOOK, HANDLE
