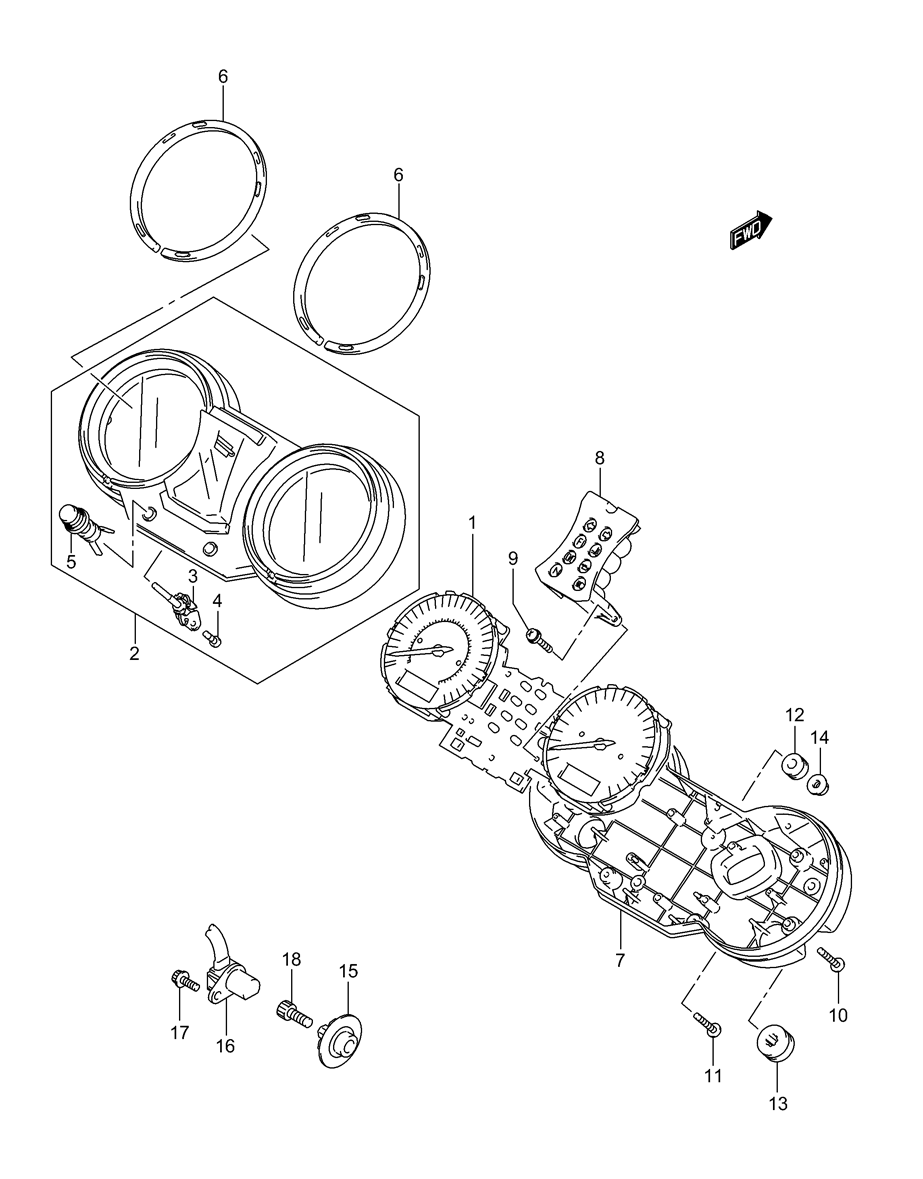

SPEEDOMETER для Suzuki DL1000 K3 - 2003 года выпуска

№

Артикул

Название
1

34120-06G40 SPEEDOMETER (MILE/KILO)

SPEEDOMETER (MILE/KILO)
2

34150-06G00 UPPER CASE

UPPER CASE
3

34123-06G00 SWITCH LEVER

SWITCH LEVER
4

34183-06G00 SCREW (3X10)

SCREW (3X10)
5

34124-06G00 SWITCH GUM

SWITCH GUM
6

34188-06G00 DAMPER

DAMPER
7

34111-06G00 LOWER CASE

LOWER CASE
8

34165-06G00 INNER CASE

INNER CASE
9

34149-31F10 SCREW (3X14)

SCREW (3X14)
10

09132-03008 SCREW (3X16)

SCREW (3X16)
11

34383-31F10 SCREW (3X16)

SCREW (3X16)
12

34189-32B00 CUSHION, METER, NO.1

CUSHION, METER, NO.1
13

34955-13E00 CUSHION, METER, NO.2

CUSHION, METER, NO.2
14

09159-05044 NUT

NUT
15

34981-35F00 ROTOR, SPEED

ROTOR, SPEED
16

34990-47F00 SENSOR, SPEED

SENSOR, SPEED
17

07120-05103 BOLT, SPEED SENSOR

BOLT, SPEED SENSOR
18

07130-08253 BOLT, SPEED ROTOR

BOLT, SPEED ROTOR
