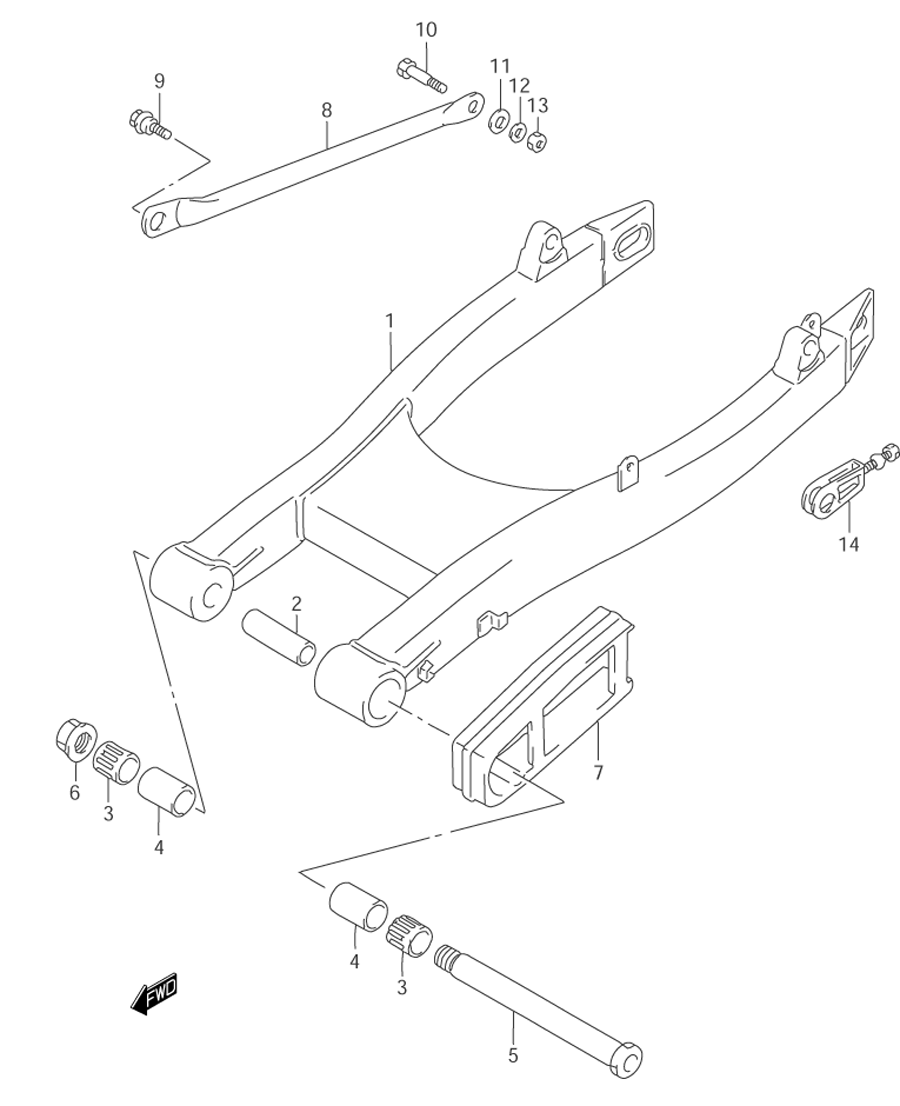

SUSPENSION - REAR SWING ARM для Suzuki VZ800 K2 - 2002 года выпуска
-
№АртикулНазвание
-
161100-48E02-019 SWINGING ARM (REAR) (019 - BLACK)SWINGING ARM (REAR) (019 - BLACK)
-
261282-48E00 SPACER, PIVOT (CENTER)SPACER, PIVOT (CENTER)
-
309263-25059 BEARING (25X33X35)BEARING (25X33X35)
-
461251-21E00 SPACER, PIVOTSPACER, PIVOT
-
561211-45C01 SHAFT, PIVOTSHAFT, PIVOT
-
608319-31188 NUTNUT
-
761273-48E00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
864310-48E00 TORQUE LINK (REAR)TORQUE LINK (REAR)
-
909111-10056 BOLT (FRONT) (10X30)BOLT (FRONT) (10X30)
-
1009111-10057 BOLT (REAR) (10X41)BOLT (REAR) (10X41)
-
1109320-12501 CUSHIONCUSHION
-
1209160-10085 WASHER (10.2X20X2.3)WASHER (10.2X20X2.3)
-
1309159-10027 NUTNUT
-
1461400-19D90 ADJUSTER ASSY., CHAINADJUSTER ASSY., CHAIN
