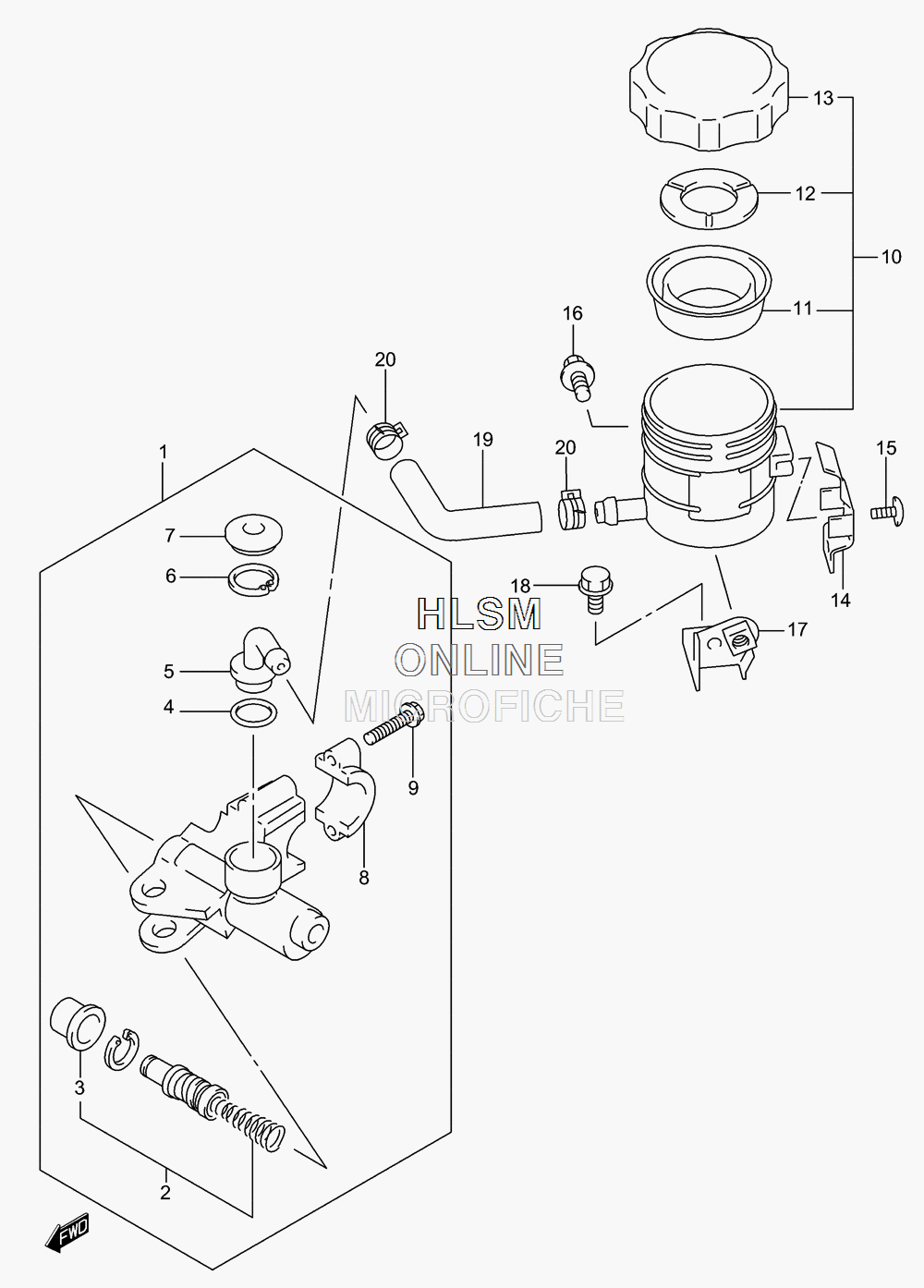

BRAKE - FRONT MASTER CYLINDER для Suzuki SV650S K2 - 2002 года выпуска`
-
№АртикулНазвание
-
159600-32C01 CYLINDER ASSY, FRONT MASTER (INC. 2-9)CYLINDER ASSY, FRONT MASTER (INC. 2-9)
-
259600-45860 PISTON/CUP SETPISTON/CUP SET
-
359666-44300 BOOTBOOT
-
469686-34200 O RINGO RING
-
559672-17C00 CONNECTORCONNECTOR
-
669674-00B20 CIRCLIPCIRCLIP
-
759673-17C00 COVER, DUSTCOVER, DUST
-
859671-36500 HOLDER (BLACK)HOLDER (BLACK)
-
959675-19C00 BOLT, HOLDER (6X25)BOLT, HOLDER (6X25)
-
1059740-07D00 TANK ASSY, RESERVOIR (INC. 11-13)TANK ASSY, RESERVOIR (INC. 11-13)
-
1159667-18441 DIAPHRAGMDIAPHRAGM
-
1259668-18441 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
1359669-07D00 CAPCAP
-
1459743-17C00 PLATE, RESERVOIR TANK CAPPLATE, RESERVOIR TANK CAP
-
1502142-04103 SCREWSCREW
-
1601550-06123 BOLTBOLT
-
1759750-33E01 BRACKET, RESERVOIR TANK FRONTBRACKET, RESERVOIR TANK FRONT
-
1801550-06123 BOLTBOLT
-
1959731-32C00 HOSE, FRONT RESERVOIR TANKHOSE, FRONT RESERVOIR TANK
-
2059735-17C00 CLAMP, RESERVOIR TANKCLAMP, RESERVOIR TANK
