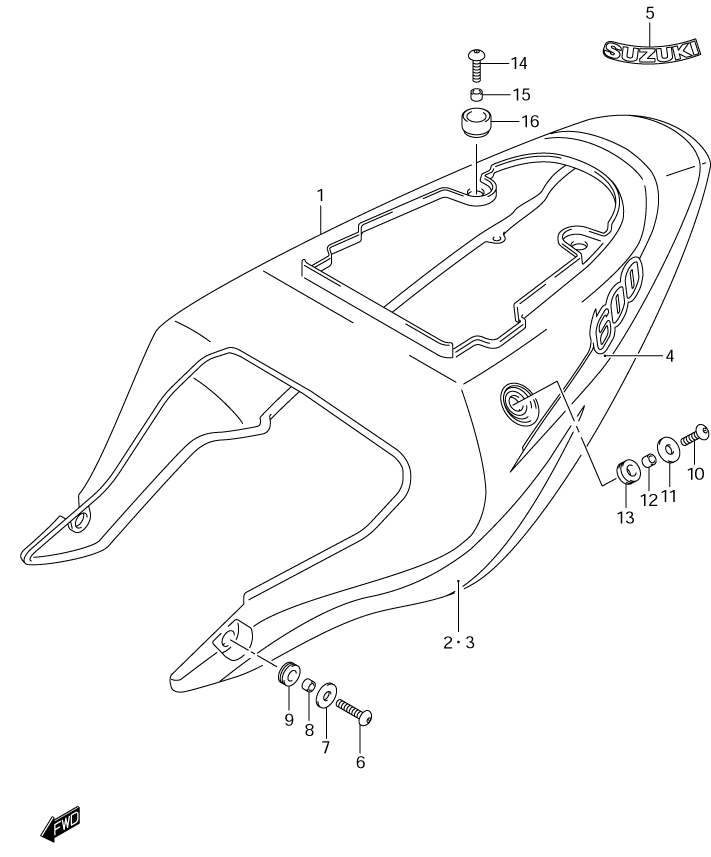

SIDE COVER для Suzuki GSX-R600 K2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47100-39F20-0JW COVER, FRAME (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    COVER, FRAME (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 1-2
    47100-39F20-Y7L COVER, FRAME (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
    COVER, FRAME (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
  • 1-3
    47100-39F20-YC2 COVER, FRAME (YC2 - BLUE) (FOR GZ8 - BLUE/SILVER)
    COVER, FRAME (YC2 - BLUE) (FOR GZ8 - BLUE/SILVER)
  • 2-1
    68135-35F50-1LE ...TAPE (FRONT/RIGHT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
    ...TAPE (FRONT/RIGHT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
  • 2-2
    68135-35F50-Y9H ...TAPE (FRONT/RIGHT) (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
    ...TAPE (FRONT/RIGHT) (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
  • 2-3
    68135-35F50-YD8 ...TAPE, (FRONT/RIGHT) (YD8 - SILVER) (FOR GZ8 - BLUE/SILVER)
    ...TAPE, (FRONT/RIGHT) (YD8 - SILVER) (FOR GZ8 - BLUE/SILVER)
  • 3-1
    68145-35F50-1LE ...TAPE, FRONT/LEFT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
    ...TAPE, FRONT/LEFT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
  • 3-2
    68145-35F50-Y9H ...TAPE (FRONT/LEFT) (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
    ...TAPE (FRONT/LEFT) (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
  • 3-3
    68145-35F50-YD8 ...TAPE (FRONT/LEFT) (YD8 - SILVER) (FOR GZ8 - BLUE/SILVER)
    ...TAPE (FRONT/LEFT) (YD8 - SILVER) (FOR GZ8 - BLUE/SILVER)
  • 4-1
    68135-39F20-FS8 ...TAPE (REAR) (FS8 - BLACK/ORANGE) (FOR L99 - WHITE/BLUE)
    ...TAPE (REAR) (FS8 - BLACK/ORANGE) (FOR L99 - WHITE/BLUE)
  • 4-2
    68135-39F20-HC2 ...TAPE (REAR) (HC2 - WHITE/SILVER/BLACK) (FOR BP9 - YELLOW/BLACK)
    ...TAPE (REAR) (HC2 - WHITE/SILVER/BLACK) (FOR BP9 - YELLOW/BLACK)
  • 4-3
    68135-39F20-HC3 ...TAPE (REAR) (HC3 - WHITE/BLACK/GRAY/BLUE) (FOR GZ8 - BLUE/SILVER)
    ...TAPE (REAR) (HC3 - WHITE/BLACK/GRAY/BLUE) (FOR GZ8 - BLUE/SILVER)
  • 5-1
    68131-39F00-019 ...EMBLEM (019 - BLACK) (FOR L99 - WHITE/BLUE)
    ...EMBLEM (019 - BLACK) (FOR L99 - WHITE/BLUE)
  • 5-2
    68131-39F00-YD8 ...EMBLEM (YD8 - SILVER) (FOR BP9 - YELLOW/BLACK, GZ8 - BLUE/SILVER)
    ...EMBLEM (YD8 - SILVER) (FOR BP9 - YELLOW/BLACK, GZ8 - BLUE/SILVER)
  • 6
    09139-06042 SCREW (FRONT) SIDE
    SCREW (FRONT) SIDE
  • 7
    09160-06047 WASHER
    WASHER
  • 8
    09180-06283 SPACER
    SPACER
  • 9
    47161-35F00 CUSHION (FRONT) SIDE
    CUSHION (FRONT) SIDE
  • 10
    09139-06029 SCREW (REAR) SIDE
    SCREW (REAR) SIDE
  • 11
    09160-06047 WASHER
    WASHER
  • 12
    09180-06283 SPACER
    SPACER
  • 13
    47161-35F10 CUSHION (REAR) SIDE
    CUSHION (REAR) SIDE
  • 14
    09139-06029 SCREW (UPPER)
    SCREW (UPPER)
  • 15
    09180-06286 SPACER
    SPACER
  • 16
    09320-10045 CUSHION (UPPER)
    CUSHION (UPPER)
