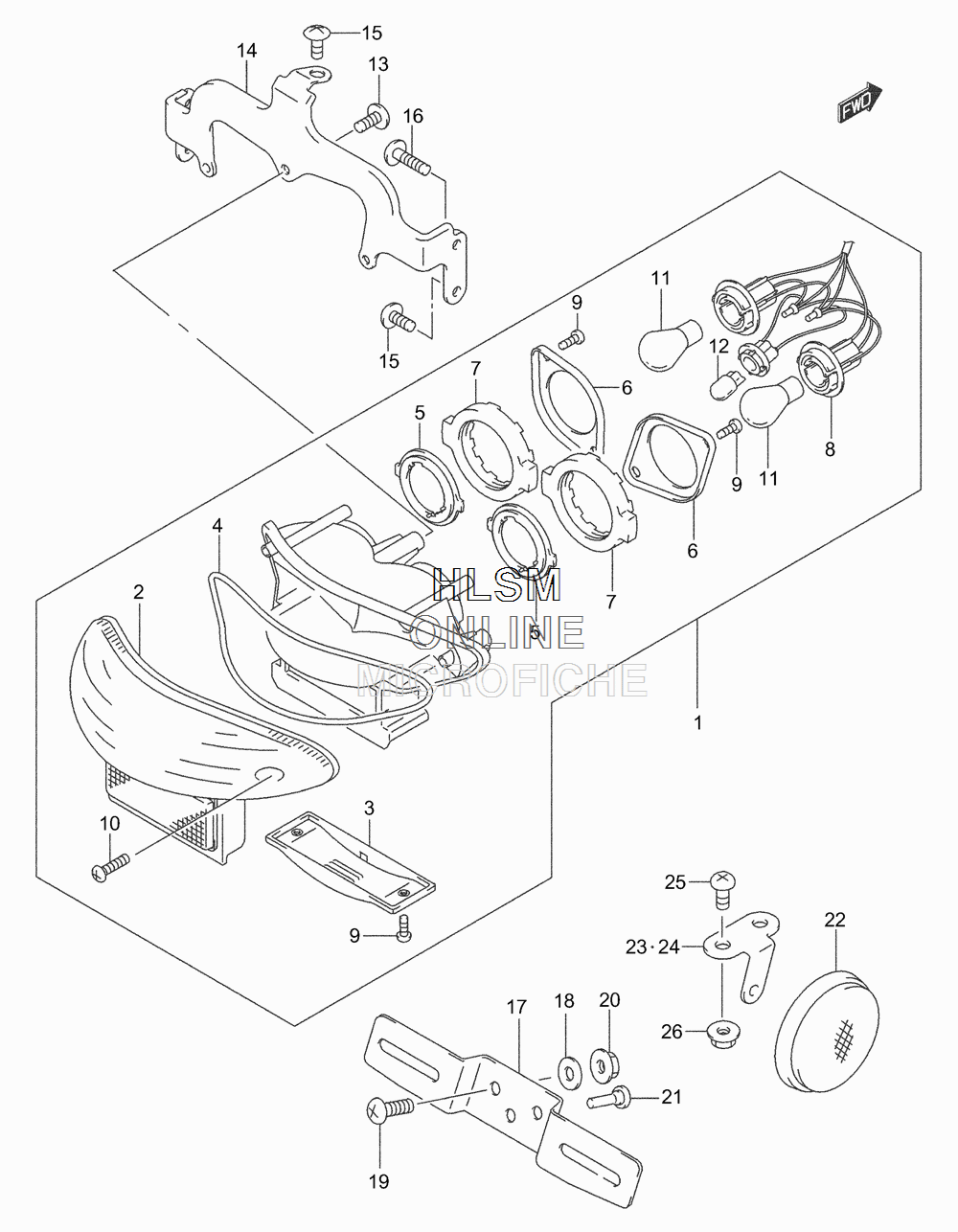

TAILLIGHT ASSY. для Suzuki GSX-1300R K2 - 2002 года выпуска`
-
№АртикулНазвание
-
135710-24F30 LAMP ASSY, REAR COMBINATION (INCL. 2-12)LAMP ASSY, REAR COMBINATION (INCL. 2-12)
-
235712-24F30 LENSLENS
-
335912-24F00 LENS, LICENSELENS, LICENSE
-
435713-24F00 GASKETGASKET
-
535716-48B21 PLATE NO.1PLATE NO.1
-
635736-48B21 PLATE NO.2PLATE NO.2
-
735765-48B21 CUSHIONCUSHION
-
835718-24F00 SOCKET AND CORDSOCKET AND CORD
-
903211-04123 SCREWSCREW
-
1003211-04207 SCREWSCREW
-
1109471-12083 BULB (12V,21/5W)BULB (12V,21/5W)
-
1209471-12081 BULB (12V,5W)BULB (12V,5W)
-
1303541-05163 SCREWSCREW
-
1435726-24F00 BRACKET, REAR COMBBRACKET, REAR COMB
-
1503541-05163 SCREWSCREW
-
1603541-05253 SCREWSCREW
-
1735927-24F00 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1809160-06088 WASHER (6.5X20X1.60)WASHER (6.5X20X1.60)
-
1902142-06163 SCREWSCREW
-
2008316-10063 NUTNUT
-
2109321-06026 CUSHIONCUSHION
-
2235970-14A20 REFLECTOR ASSY, REARREFLECTOR ASSY, REAR
-
2335975-24F00 BRACKET, REAR RIGHT HANDBRACKET, REAR RIGHT HAND
-
2435976-24F00 BRACKET, REAR LEFT HANDBRACKET, REAR LEFT HAND
-
2502112-06123 SCREWSCREW
-
2608316-10063 NUTNUT
