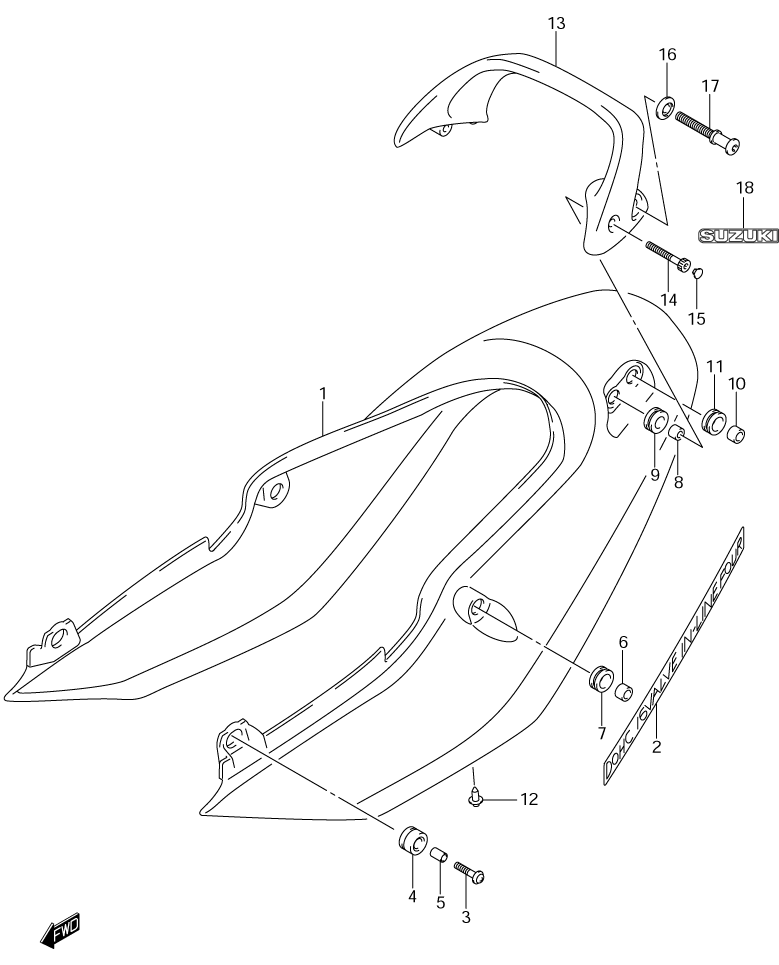

SEAT TAIL COVER для Suzuki GSF600S K2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 1-1
    45510-31F20-19A COVER, SEAT TAIL (19A - RED)
    COVER, SEAT TAIL (19A - RED)
  • 1-2
    45510-31F20-33J COVER, SEAT TAIL (33J - BLACK)
    COVER, SEAT TAIL (33J - BLACK)
  • 1-3
    45510-31F20-YC2 COVER, SEAT TAIL (YC2 - BLUE)
    COVER, SEAT TAIL (YC2 - BLUE)
  • 2-1
    68131-26E30-13L ...EMBLEM, TAIL COVER (13L - SILVER) (FOR 19A)
    ...EMBLEM, TAIL COVER (13L - SILVER) (FOR 19A)
  • 2-2
    68131-26E30-13L ...EMBLEM, TAIL COVER (13L - SILVER) (FOR 33J)
    ...EMBLEM, TAIL COVER (13L - SILVER) (FOR 33J)
  • 2-3
    68131-26E30-1ZZ ...EMBLEM, TAIL COVER (1ZZ - GRAY) (FOR YC2)
    ...EMBLEM, TAIL COVER (1ZZ - GRAY) (FOR YC2)
  • 3
    09136-06083 SCREW (FRONT) (6X30)
    SCREW (FRONT) (6X30)
  • 4
    47115-19F00 CUSHION (FRONT) (10X22X15)
    CUSHION (FRONT) (10X22X15)
  • 5
    09180-06291 SPACER (FRONT) (6.5X10X13)
    SPACER (FRONT) (6.5X10X13)
  • 6
    09180-08199 SPACER (CENTER) (8.5X14X9)
    SPACER (CENTER) (8.5X14X9)
  • 7
    09320-14023 CUSHION (CENTER) (14X22X9.5)
    CUSHION (CENTER) (14X22X9.5)
  • 8
    09180-06300 REAR SPACER, FRONT (6.5X12X9)
    REAR SPACER, FRONT (6.5X12X9)
  • 9
    09320-12068 REAR CUSHION, FRONT (12X22X9.5)
    REAR CUSHION, FRONT (12X22X9.5)
  • 10
    09180-08199 SPACER (REAR) (8.5X14X9)
    SPACER (REAR) (8.5X14X9)
  • 11
    09320-14023 CUSHION (REAR) (14X12X9.5)
    CUSHION (REAR) (14X12X9.5)
  • 12
    09409-06314-5PK CLIP (5PK - BLACK)
    CLIP (5PK - BLACK)
  • 13-1
    46210-31F00-19A HANDLE, PILLION RIDER (19A - RED)
    HANDLE, PILLION RIDER (19A - RED)
  • 13-2
    46210-31F00-33J HANDLE, PILLION RIDER (33J - BLACK)
    HANDLE, PILLION RIDER (33J - BLACK)
  • 13-3
    46210-31F00-YC2 HANDLE, PILLION RIDER (YC2 - BLUE)
    HANDLE, PILLION RIDER (YC2 - BLUE)
  • 14
    07120-06453 BOLT
    BOLT
  • 15
    09250-05009 CAP
    CAP
  • 16
    46317-31F00 WASHER, HOOK
    WASHER, HOOK
  • 17
    46316-31F00 HOOK, HANDLE
    HOOK, HANDLE
  • 18-1
    68165-16B00-019 EMBLEM, "SUZUKI" (019 - BLACK) (FOR 19A)
    EMBLEM, "SUZUKI" (019 - BLACK) (FOR 19A)
  • 18-2
    68165-16B00-17U EMBLEM, "SUZUKI" (17U - GRAY) (FOR 33J)
    EMBLEM, "SUZUKI" (17U - GRAY) (FOR 33J)
  • 18-3
    68165-16B00-0JW EMBLEM, "SUZUKI" (0JW - WHITE) (FOR YC2)
    EMBLEM, "SUZUKI" (0JW - WHITE) (FOR YC2)
