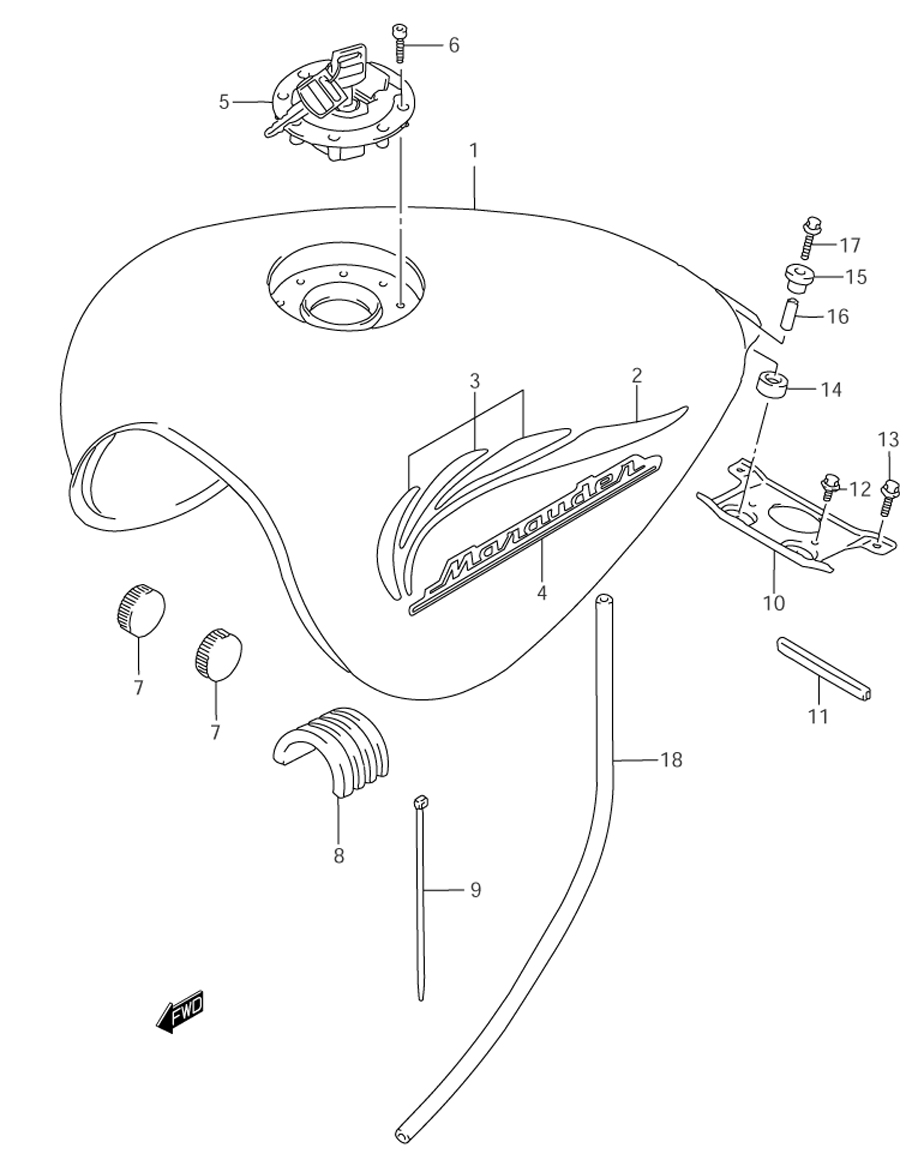

FUEL TANK для Suzuki VZ800 K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-1
    49200-48ED0-33J TANK ASSY., FUEL (33J - BLACK) (CANADA)
    TANK ASSY., FUEL (33J - BLACK) (CANADA)
  • 1-2
    49200-48ED0-YC2 TANK ASSY., FUEL (YC2 - BLUE) (EXCEPT CALIF.)
    TANK ASSY., FUEL (YC2 - BLUE) (EXCEPT CALIF.)
  • 1-3
    49200-48ED0-YE2 TANK ASSY., FUEL (YE2 - MAROON) (EXCEPT CALIF.)
    TANK ASSY., FUEL (YE2 - MAROON) (EXCEPT CALIF.)
  • 1-4
    49200-48EE0-YC2 TANK ASSY., FUEL (YC2 - BLUE) (CALIFORNIA ONLY)
    TANK ASSY., FUEL (YC2 - BLUE) (CALIFORNIA ONLY)
  • 1-5
    49200-48EE0-YE2 TANK ASSY., FUEL (YE2 - MAROON) (CALIFORNIA ONLY)
    TANK ASSY., FUEL (YE2 - MAROON) (CALIFORNIA ONLY)
  • 2
    68110-48E51-0MT ...TAPE SET, FUEL TANK (0MT - SILVER)
    ...TAPE SET, FUEL TANK (0MT - SILVER)
  • 3
    68120-48810 ...EMBLEM SET
    ...EMBLEM SET
  • 4-1
    68121-48E30-J3J ...EMBLEM, FUEL TANK (FOR J3J - BLACK) (EXCEPT CALIF.)
    ...EMBLEM, FUEL TANK (FOR J3J - BLACK) (EXCEPT CALIF.)
  • 4-2
    68121-48E30-DZ8 ...EMBLEM, FUEL TANK (DZ8 - BLUE/RED/SILVER) (FOR YC2 - BLUE)
    ...EMBLEM, FUEL TANK (DZ8 - BLUE/RED/SILVER) (FOR YC2 - BLUE)
  • 4-3
    68121-48E30-DZ9 ...EMBLEM, FUEL TANK (DZ9 - MAROON/RED/SILVER) (FOR YE2 - MAROON)
    ...EMBLEM, FUEL TANK (DZ9 - MAROON/RED/SILVER) (FOR YE2 - MAROON)
  • 5-1
    44200-33850 CAP SET, FUEL TANK
    CAP SET, FUEL TANK
  • 5-2
    44200-33860 CAP SET, FUEL TANK (CALIFORNIA ONLY)
    CAP SET, FUEL TANK (CALIFORNIA ONLY)
  • 6
    09106-05017 BOLT (L:20)
    BOLT (L:20)
  • 7
    09329-10007 CUSHION
    CUSHION
  • 8
    44541-13E00 CUSHION, FUEL TANK (UPPER)
    CUSHION, FUEL TANK (UPPER)
  • 9
    09407-25402 CLAMP (L:248)
    CLAMP (L:248)
  • 10
    44550-48E01 BRACKET, FUEL TANK (REAR)
    BRACKET, FUEL TANK (REAR)
  • 11
    47512-47D00 PROTECTOR
    PROTECTOR
  • 12
    01550-06103 BOLT (FRONT)
    BOLT (FRONT)
  • 13
    01550-06163 BOLT (REAR)
    BOLT (REAR)
  • 14
    44542-48E00 CUSHION, FUEL TANK (REAR/LOWER)
    CUSHION, FUEL TANK (REAR/LOWER)
  • 15
    09320-10022 CUSHION (UPPER)
    CUSHION (UPPER)
  • 16
    09180-06067 SPACER (6.5X10.5X22.5)
    SPACER (6.5X10.5X22.5)
  • 17
    01550-06353 BOLT
    BOLT
  • 18
    44423-48E01 HOSE, DRAIN
    HOSE, DRAIN
