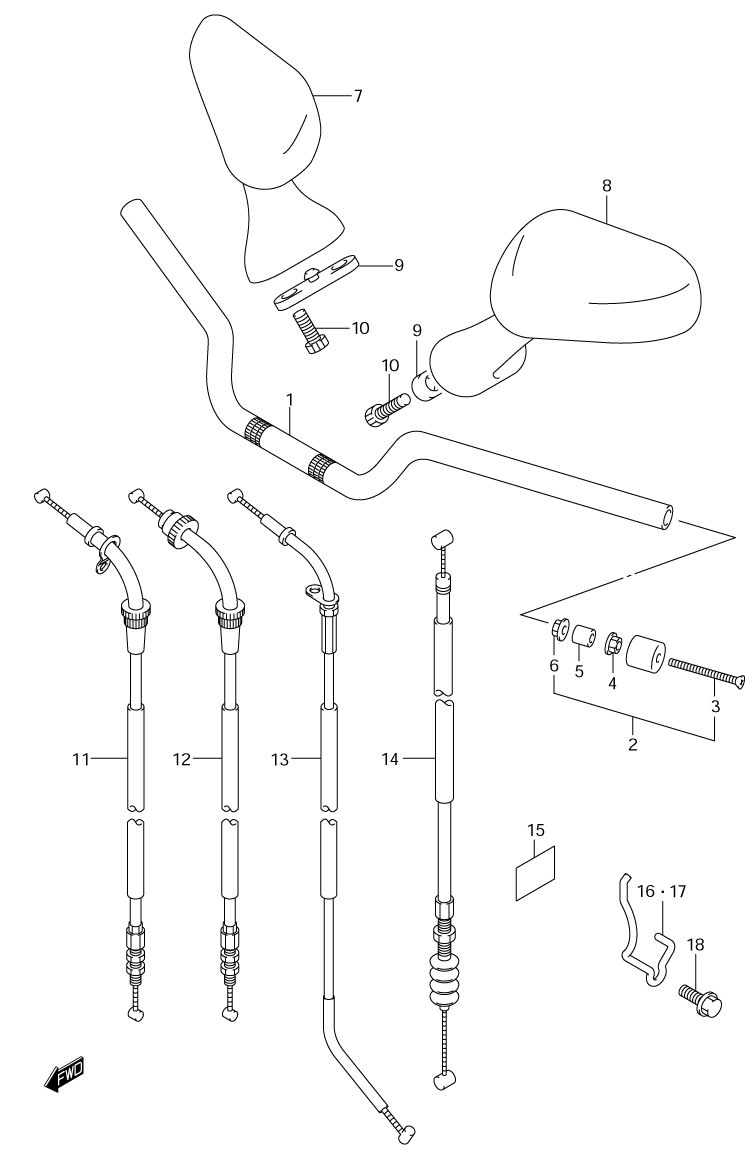

HANDLEBAR W/ CABLES - MIRRORS для Suzuki GSF600S K1 - 2001 года выпуска`
-
№АртикулНазвание
-
1-256111-31F01 HANDLEBARHANDLEBAR
-
256200-31820 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
302122-06803 ...SCREW...SCREW
-
408316-10083 ...NUT...NUT
-
556272-44500 ...EXPANDER...EXPANDER
-
609159-06024 ...NUT...NUT
-
756500-31F00 MIRROR ASSY., VIEW (REAR/RIGHT)MIRROR ASSY., VIEW (REAR/RIGHT)
-
856600-31F00 MIRROR ASSY., VIEW (REAR/LEFT)MIRROR ASSY., VIEW (REAR/LEFT)
-
994576-31F00 CUSHION, MIRRORCUSHION, MIRROR
-
1007130-06353 BOLTBOLT
-
1158300-31F00 CABLE ASSY., THROTTLE,NO.1CABLE ASSY., THROTTLE,NO.1
-
1258300-31F10 CABLE ASSY., THROTTLE,NO.2CABLE ASSY., THROTTLE,NO.2
-
1358410-31F00 CABLE, STARTERCABLE, STARTER
-
1458200-31F00 CABLE ASSY., CLUTCHCABLE ASSY., CLUTCH
-
1547261-48B00 PROTECTOR (30X40)PROTECTOR (30X40)
-
1636619-31F10 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
1758622-31F00 GUIDE, CABLE NO.2GUIDE, CABLE NO.2
-
1801550-06163 BOLTBOLT
