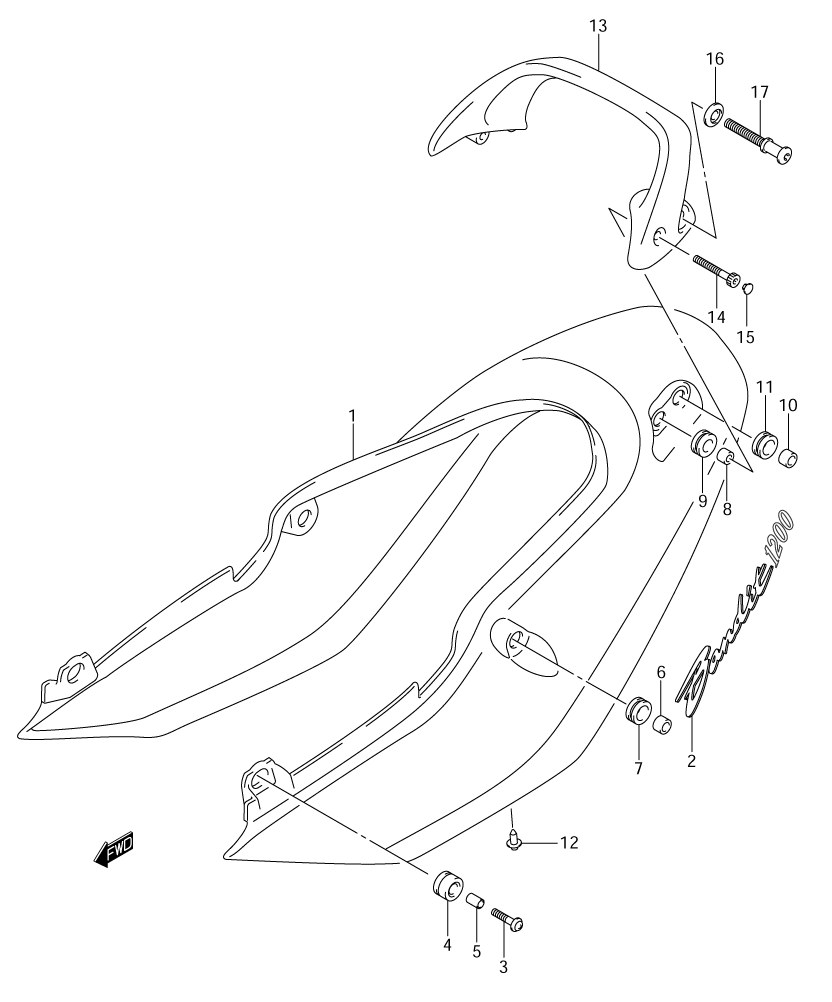

SEAT TAIL COVER для Suzuki GSF1200 K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-1
    45510-32F00-YC6 COVER, SEAT TAIL (YC6 - RED)
    COVER, SEAT TAIL (YC6 - RED)
  • 1-2
    45510-32F00-33J COVER, SEAT TAIL (33J - BLACK)
    COVER, SEAT TAIL (33J - BLACK)
  • 2-1
    68131-32F00-DL6 ...EMBLEM, TAIL COVER (DL6 - SILVER/GRAY/RED) (FOR YC6 - RED)
    ...EMBLEM, TAIL COVER (DL6 - SILVER/GRAY/RED) (FOR YC6 - RED)
  • 2-2
    68131-32F00-DL4 ...EMBLEM, TAIL COVER (DL4 - SILVER/GOLD/BLACK) (FOR 33J - BLACK)
    ...EMBLEM, TAIL COVER (DL4 - SILVER/GOLD/BLACK) (FOR 33J - BLACK)
  • 3
    09136-06083 SCREW (FRONT) (6X30)
    SCREW (FRONT) (6X30)
  • 4
    47115-19F00 CUSHION (FRONT) (10X22X15)
    CUSHION (FRONT) (10X22X15)
  • 5
    09180-06291 SPACER (FRONT) (6.5X10X13)
    SPACER (FRONT) (6.5X10X13)
  • 6
    09180-08199 SPACER, CENTER (8.5X14X9)
    SPACER, CENTER (8.5X14X9)
  • 7
    09320-14023 CUSHION, CENTER (14X22X9.5)
    CUSHION, CENTER (14X22X9.5)
  • 8
    09180-06300 SPACER, RR-FR (6.5X12X9)
    SPACER, RR-FR (6.5X12X9)
  • 9
    09320-12068 CUSHION, RR-FR (12X22X9.5)
    CUSHION, RR-FR (12X22X9.5)
  • 10
    09180-08199 SPACER, RR-RR (8.5X14X9)
    SPACER, RR-RR (8.5X14X9)
  • 11
    09320-14023 CUSHION, RR-RR (14X12X9.5)
    CUSHION, RR-RR (14X12X9.5)
  • 12
    09409-06314-5PK CLIP
    CLIP
  • 13-1
    46211-32F00-YC6 HANDLE, PILLION RIDER (YC6 - RED)
    HANDLE, PILLION RIDER (YC6 - RED)
  • 13-2
    46211-32F00-33J HANDLE, PILLION RIDER (33J - BLACK)
    HANDLE, PILLION RIDER (33J - BLACK)
  • 14
    07120-06453 BOLT
    BOLT
  • 15
    09250-05009 CAP
    CAP
  • 16
    46317-31F00 WASHER, HOOK
    WASHER, HOOK
  • 17
    46316-31F00 HOOK, HANDLE
    HOOK, HANDLE
