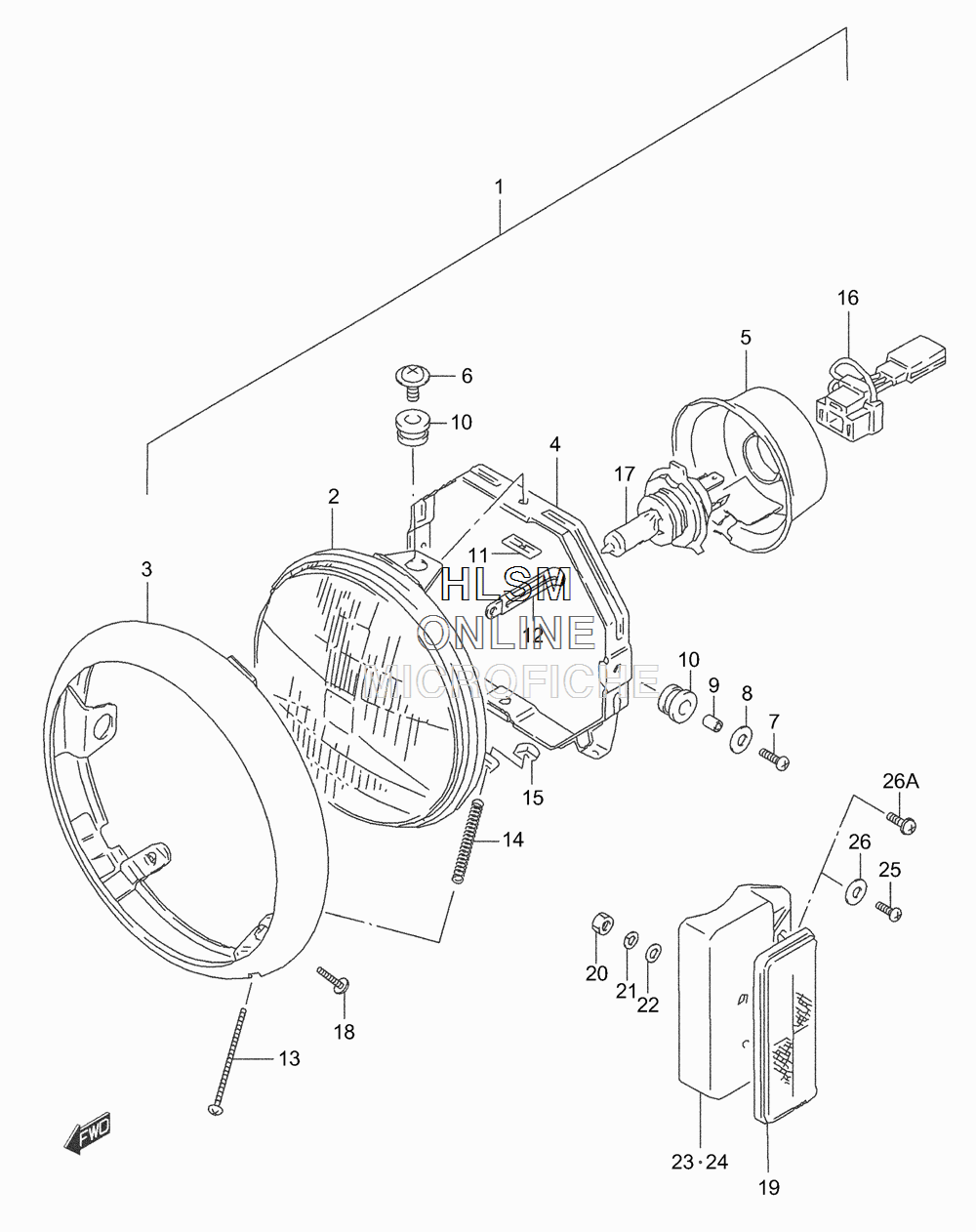

HEADLAMP для Suzuki LS650P Y - 2000 года выпуска
-
№АртикулНазвание
-
135100-38A30-999 HEADLAMP ASSY (INCL. 2-16)HEADLAMP ASSY (INCL. 2-16)
-
235121-38A30 UNIT, LAMPUNIT, LAMP
-
335111-38A00 RIMRIM
-
435130-38A00 RING, MOUNTINGRING, MOUNTING
-
535173-38A00 COVER, SOCKETCOVER, SOCKET
-
635136-38A00 SCREWSCREW
-
709125-05102 SCREWSCREW
-
809160-05003 WASHER (5.5X18X1.0)WASHER (5.5X18X1.0)
-
935133-45230 SPACERSPACER
-
1035139-45230 CUSHIONCUSHION
-
1135155-48510 NUTNUT
-
1209404-06429 CLAMP (L:60)CLAMP (L:60)
-
1335151-38A00 SCREW, ADJUSTSCREW, ADJUST
-
1435154-31300 SPRINGSPRING
-
1535152-45600 NUTNUT
-
1636853-38A00 SOCKETSOCKET
-
1709471-12060 BULB (12V,60/55W)BULB (12V,60/55W)
-
1802142-05127 SCREWSCREW
-
1935950-43431 REFLEX REFLECTOR, FRONT SIDEREFLEX REFLECTOR, FRONT SIDE
-
2008310-00053 NUTNUT
-
2108321-01053 LOCK WASHERLOCK WASHER
-
2209160-05037 WASHER (5.5X16X1.2)WASHER (5.5X16X1.2)
-
2335956-24B00 BRACKET, FRONT SIDE RIGHT HANDBRACKET, FRONT SIDE RIGHT HAND
-
2435957-24B00 BRACKET, FRONT SIDE LEFT HANDBRACKET, FRONT SIDE LEFT HAND
-
26A09136-05026 SCREWSCREW
