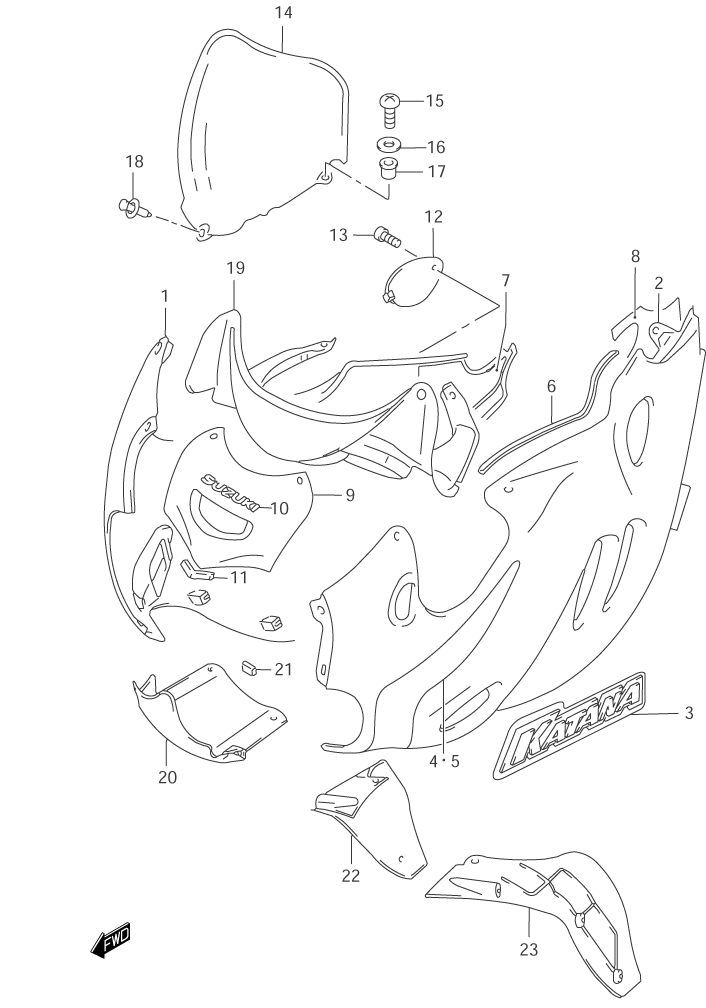

COWLING BODY для Suzuki GSX600F Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1-1
    94403-08F80-Y7E COWL ASSY., SIDE (RIGHT) (Y7E - BLUE)
    COWL ASSY., SIDE (RIGHT) (Y7E - BLUE)
  • 1-2
    94403-08F80-Y7M COWL ASSY., SIDE (RIGHT) (Y7M - RED)
    COWL ASSY., SIDE (RIGHT) (Y7M - RED)
  • 2-1
    94404-08F80-Y7E COWL ASSY., SIDE (LEFT) (Y7E - BLUE) (EXCEPT CALIF.)
    COWL ASSY., SIDE (LEFT) (Y7E - BLUE) (EXCEPT CALIF.)
  • 2-2
    94404-08F80-Y7M COWL ASSY., SIDE (LEFT) (Y7M - RED) (EXCEPT CALIF.)
    COWL ASSY., SIDE (LEFT) (Y7M - RED) (EXCEPT CALIF.)
  • 2-3
    94404-08F90-Y7E COWL ASSY., SIDE (LEFT) (Y7E - BLUE) (CALIFORNIA ONLY)
    COWL ASSY., SIDE (LEFT) (Y7E - BLUE) (CALIFORNIA ONLY)
  • 2-4
    94404-08F90-Y7M COWL ASSY., SIDE (LEFT) (Y7M - RED) (CALIFORNIA ONLY)
    COWL ASSY., SIDE (LEFT) (Y7M - RED) (CALIFORNIA ONLY)
  • 3-1
    68681-08F30-BC9 ...EMBLEM, KATANA (BC9 - SILVER/BLACK/RED/BLUE) (FOR Y7E - BLUE)
    ...EMBLEM, KATANA (BC9 - SILVER/BLACK/RED/BLUE) (FOR Y7E - BLUE)
  • 3-2
    68681-08F30-BD1 ...EMBLEM, KATANA (BD1 - SILVER/BLACK/YELLOW/RED) (FOR Y7M - RED)
    ...EMBLEM, KATANA (BD1 - SILVER/BLACK/YELLOW/RED) (FOR Y7M - RED)
  • 4-1
    68685-08F00-BF7 ...TAPE, SIDE (RIGHT) (BF7 - BLACK/SILVER/BLUE) (FOR Y7E - BLUE)
    ...TAPE, SIDE (RIGHT) (BF7 - BLACK/SILVER/BLUE) (FOR Y7E - BLUE)
  • 4-2
    68685-08F00-BF9 ...TAPE, SIDE (RIGHT) (BF9 - BLACK/SILVER/RED) (FOR Y7M - RED)
    ...TAPE, SIDE (RIGHT) (BF9 - BLACK/SILVER/RED) (FOR Y7M - RED)
  • 5-1
    68695-08F00-BF7 ...TAPE, SIDE (LEFT) (BF7 - BLACK/SILVER/BLUE) (FOR Y7E - BLUE)
    ...TAPE, SIDE (LEFT) (BF7 - BLACK/SILVER/BLUE) (FOR Y7E - BLUE)
  • 5-2
    68695-08F00-BF9 ...TAPE, SIDE (LEFT) (BF9 - BLACK/SILVER/RED) (FOR Y7M - RED)
    ...TAPE, SIDE (LEFT) (BF9 - BLACK/SILVER/RED) (FOR Y7M - RED)
  • 6
    94631-44110 ...MOLDING
    ...MOLDING
  • 7
    94439-08F00 ...SHIELD, HEAT (RIGHT)
    ...SHIELD, HEAT (RIGHT)
  • 8
    94449-08F00 ...SHIELD, HEAT (LEFT)
    ...SHIELD, HEAT (LEFT)
  • 9-1
    94410-08F00-Y7E PANEL (CENTER) (UPPER) (Y7E - BLUE)
    PANEL (CENTER) (UPPER) (Y7E - BLUE)
  • 9-2
    94410-08F00-Y7M PANEL (CENTER) (UPPER) (Y7M - RED)
    PANEL (CENTER) (UPPER) (Y7M - RED)
  • 10-1
    68185-05C10-1ZY ...EMBLEM, SUZUKI (1ZY - GRAY) (FOR Y7E - BLUE)
    ...EMBLEM, SUZUKI (1ZY - GRAY) (FOR Y7E - BLUE)
  • 10-2
    68185-05C10-20G ...EMBLEM, SUZUKI (20G - GRAY) (FOR Y7M - RED)
    ...EMBLEM, SUZUKI (20G - GRAY) (FOR Y7M - RED)
  • 11
    94413-08F00 ...CUSHION
    ...CUSHION
  • 12-1
    94435-08F00-Y7E LID, OIL (Y7E - BLUE)
    LID, OIL (Y7E - BLUE)
  • 12-2
    94435-08F00-Y7M LID, OIL (Y7M - RED)
    LID, OIL (Y7M - RED)
  • 13
    09139-06030 SCREW
    SCREW
  • 14
    94611-08F00 WIND SCREEN
    WIND SCREEN
  • 15
    09139-05025 SCREW
    SCREW
  • 16
    08322-01053 WASHER
    WASHER
  • 17
    09159-05019 NUT
    NUT
  • 18
    09409-08308-5ES CLIP (5ES - BLACK)
    CLIP (5ES - BLACK)
  • 19
    94421-08F00 PANEL, METER
    PANEL, METER
  • 20-1
    94412-08F00-Y7E PANEL (CENTER) (LOWER) (Y7E - BLUE)
    PANEL (CENTER) (LOWER) (Y7E - BLUE)
  • 20-2
    94412-08F00-Y7M PANEL (CENTER) (LOWER) (Y7M - RED)
    PANEL (CENTER) (LOWER) (Y7M - RED)
  • 21
    94414-08F00 CUSHION
    CUSHION
  • 22-1
    94461-08F00-Y7E PANEL (INNER) (RIGHT) (Y7E - BLUE)
    PANEL (INNER) (RIGHT) (Y7E - BLUE)
  • 22-2
    94461-08F00-Y7M PANEL (INNER) (RIGHT) (Y7M - RED)
    PANEL (INNER) (RIGHT) (Y7M - RED)
  • 23-1
    94462-08F00-Y7E PANEL (INNER) (LEFT) (Y7E - BLUE)
    PANEL (INNER) (LEFT) (Y7E - BLUE)
  • 23-2
    94462-08F00-Y7M PANEL (INNER) (LEFT) (Y7M - RED)
    PANEL (INNER) (LEFT) (Y7M - RED)
