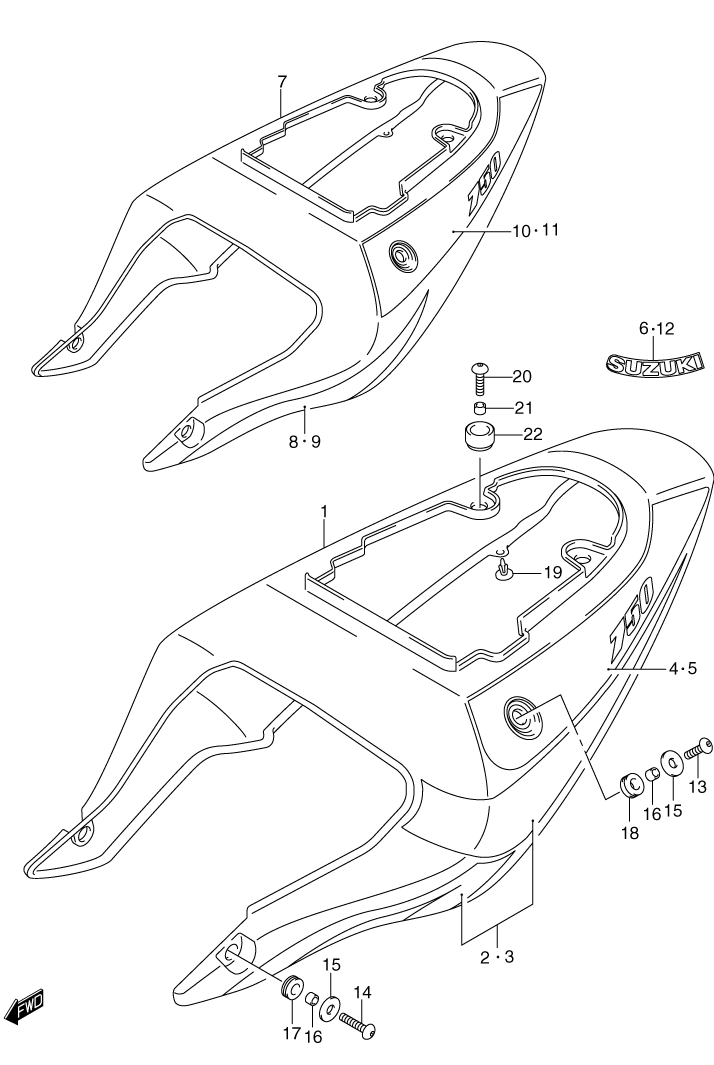

SIDE COVER для Suzuki GSX-R750 Y - 2000 года выпуска

№

Артикул

Название
1

47100-35F00-019 COVER ASSY., FRAME (019 - BLACK) (FOR L99 - WHITE/BLUE)

COVER ASSY., FRAME (019 - BLACK) (FOR L99 - WHITE/BLUE)
2

68130-35F00-CA5 ...TAPE SET (RIGHT) (CA5 - WHITE/BLUE/RED/BLACK)

...TAPE SET (RIGHT) (CA5 - WHITE/BLUE/RED/BLACK)
3

68140-35F00-CA5 ...TAPE SET (LEFT) (CA5 - WHITE/BLUE/RED/BLACK)

...TAPE SET (LEFT) (CA5 - WHITE/BLUE/RED/BLACK)
4

68135-35F00-DJ8 ...TAPE (RIGHT) (DJ8 - WHITE/SILVER/BLACK)

...TAPE (RIGHT) (DJ8 - WHITE/SILVER/BLACK)
5

68145-35F00-DJ8 ...TAPE (LEFT)) (DJ8 - WHITE/SILVER/BLACK)

...TAPE (LEFT)) (DJ8 - WHITE/SILVER/BLACK)
6

68131-35F00-0JW ...EMBLEM, "SUZUKI" (0JW - WHITE)

...EMBLEM, "SUZUKI" (0JW - WHITE)
7

47100-35F10-33J COVER ASSY., FRAME (33J - BLACK) (FOR CY8 - BLACK/SILVER)

COVER ASSY., FRAME (33J - BLACK) (FOR CY8 - BLACK/SILVER)
8

68135-35F10-CY9 ...TAPE (FRONT) (RIGHT) (CY9 - BLACK/SILVER)

...TAPE (FRONT) (RIGHT) (CY9 - BLACK/SILVER)
9

68145-35F10-CY9 ...TAPE (FRONT) (LEFT) (CY9 - BLACK/SILVER)

...TAPE (FRONT) (LEFT) (CY9 - BLACK/SILVER)
10

68135-35F20-DJ2 ...TAPE (RIGHT) (DJ2 - YELLOW/SILVER/BLACK)

...TAPE (RIGHT) (DJ2 - YELLOW/SILVER/BLACK)
11

68145-35F20-DJ2 ...TAPE (LEFT) (DJ2 - YELLOW/SILVER/BLACK)

...TAPE (LEFT) (DJ2 - YELLOW/SILVER/BLACK)
12

68131-35F00-YD8 ...EMBLEM, "SUZUKI" (SILVER)

...EMBLEM, "SUZUKI" (SILVER)
13

09139-06029 SCREW, SIDE

SCREW, SIDE
14

09139-06042 SCREW (FRONT)

SCREW (FRONT)
15

09160-06047 WASHER

WASHER
16

09180-06283 SPACER

SPACER
17

47161-35F00 CUSHION (FRONT)

CUSHION (FRONT)
18

47161-35F10 CUSHION, SIDE

CUSHION, SIDE
19

09409-06314-5PK CLIP (LOWER) (BLACK)

CLIP (LOWER) (BLACK)
20

09139-06029 SCREW (UPPER)

SCREW (UPPER)
21

09180-06286 SPACER

SPACER
22

09320-10045 CUSHION (UPPER)

CUSHION (UPPER)
