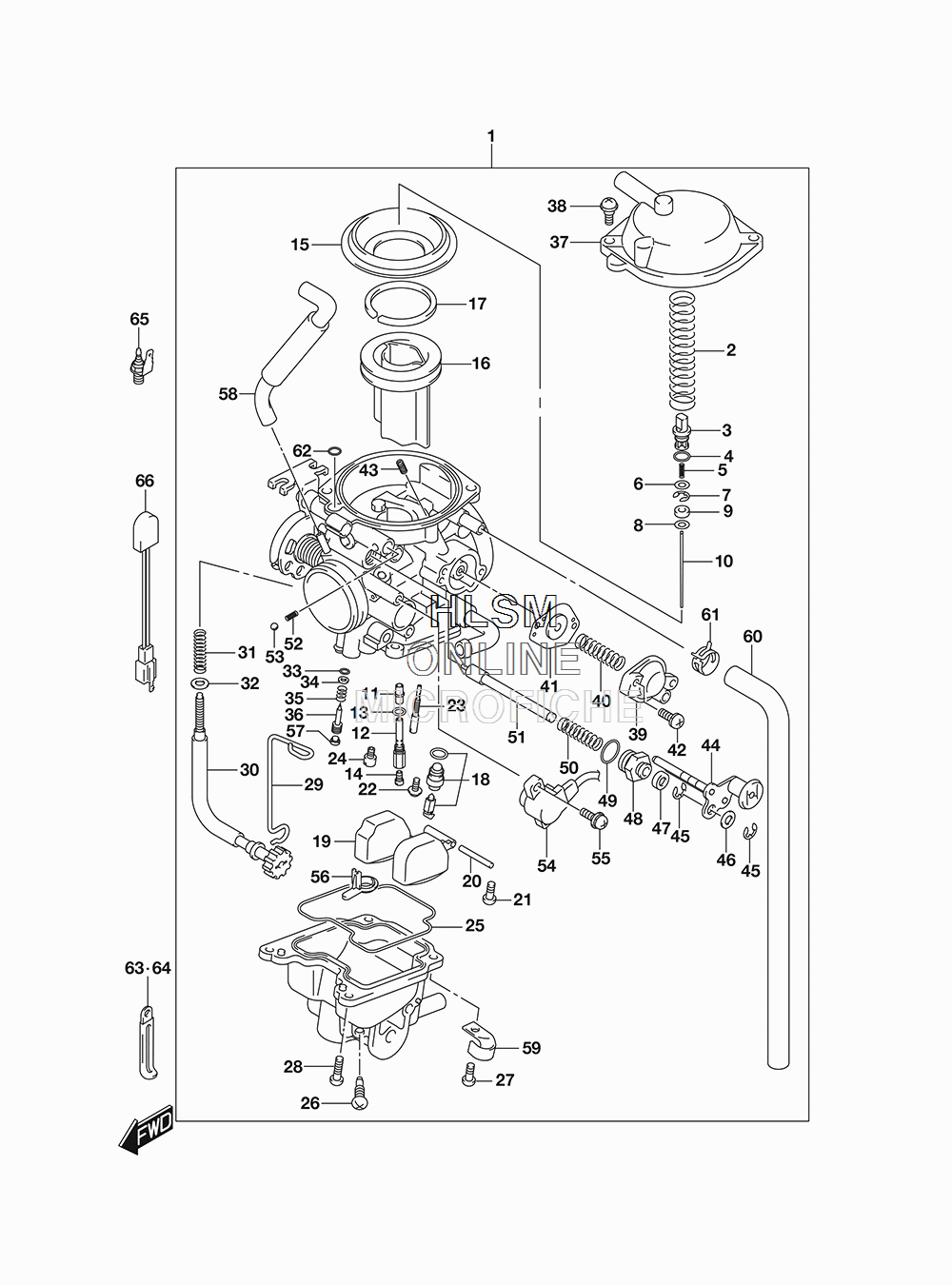

CARBURETOR (CALIF.) для Suzuki DR-Z400SML8 - 2018 года выпуска`
-
№АртикулНазвание
-
113200-29FC3 CARBURETOR ASSYCARBURETOR ASSY
-
213573-07F00 ...SPRING...SPRING
-
313418-33E00 ...HOLDER...HOLDER
-
409280-05004 ...O RING (D:1.9,ID:4.8)...O RING (D:1.9,ID:4.8)
-
513481-04F00 ...SPRING...SPRING
-
613382-19E00 ...WASHER...WASHER
-
713394-17E60 ...E RING, MULTIPLE JET NOZZLE...E RING, MULTIPLE JET NOZZLE
-
813387-13F00 ...RING...RING
-
913291-29FA0 ...WASHER...WASHER
-
1013383-29FB0 ...NEEDLE, JET (5DH37-1)...NEEDLE, JET (5DH37-1)
-
1109494-00939 ...JET...JET
-
1213385-29FA0 ...HOLDER, JET...HOLDER, JET
-
1313246-43010 ...O RING...O RING
-
1409491-28012 ...JET, MAIN (142.5)...JET, MAIN (142.5)
-
1513507-17C01 ...DIAPHRAGM...DIAPHRAGM
-
1613501-29FA0 ...VALVE, PISTON...VALVE, PISTON
-
1713504-14E00 ...RING...RING
-
1813370-29FA0 ...VALVE ASSY, NEEDLE...VALVE ASSY, NEEDLE
-
1913250-04F00 ...FLOAT ASSY...FLOAT ASSY
-
2013254-01010 ...PIN, FLOAT...PIN, FLOAT
-
2102112-0408A ...SCREW...SCREW
-
2213602-05A10 ...SCREW...SCREW
-
2309492-22014 ...JET, PILOT (22.5)...JET, PILOT (22.5)
-
2409491-62006 ...JET, MAIN (62.5)...JET, MAIN (62.5)
-
2513258-04F00 ...GASKET...GASKET
-
2613247-13A00 ...SCREW, DRAIN...SCREW, DRAIN
-
2702112-04107 ...SCREW...SCREW
-
2802112-0412A ...SCREW...SCREW
-
2913671-29FA0 ...CLIP...CLIP
-
3013267-29FA0 ...ADJUST SCREW ASSY...ADJUST SCREW ASSY
-
3113268-37420 ...SPRING, THROTTLE SCREW...SPRING, THROTTLE SCREW
-
3213615-43010 ...WASHER...WASHER
-
3313295-29900 ...O RING...O RING
-
3413291-29900 ...WASHER...WASHER
-
3513268-48700 ...SPRING, THROTTLE SCREW...SPRING, THROTTLE SCREW
-
3613279-33E00 ...ADJUSTER...ADJUSTER
-
3713502-29FA0 ...DIAPHRAGM COVER...DIAPHRAGM COVER
-
3813247-33E00 ...SCREW...SCREW
-
3913502-08F00 ...COVER ASSY...COVER ASSY
-
4013481-41F20 ...SPRING...SPRING
-
4113480-10F00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
4213601-04148 ...SCREW...SCREW
-
4309492-27010 ...JET, POWER (135)...JET, POWER (135)
-
4413420-29FA0 ...PLATE ASSY...PLATE ASSY
-
4513415-38300 ...E RING...E RING
-
4613427-38300 ...WASHER...WASHER
-
4713682-31210 ...CAP, STARTER VALVE...CAP, STARTER VALVE
-
4813418-44080 ...HOLDER, GUIDE...HOLDER, GUIDE
-
4913278-47090 ...O RING...O RING
-
5013417-43010 ...SPRING, STARTER VALVE...SPRING, STARTER VALVE
-
5113411-29FA0 ...PLUNGER ASSY...PLUNGER ASSY
-
5213434-43010 ...SPRING...SPRING
-
5313596-93010 ...STEEL BALL...STEEL BALL
-
5413580-21F00 ...SENSOR ASSY...SENSOR ASSY
-
5513602-19B50 ...SCREW...SCREW
-
5613387-29FA1 ...RING...RING
-
5713281-05A00 ...PLUG...PLUG
-
5813683-29FB0 ...HOSE...HOSE
-
5913671-14D00 ...PLATE...PLATE
-
6013684-29FB0 ...HOSE, AIR VENT (6.5X10.5)...HOSE, AIR VENT (6.5X10.5)
-
6113671-19F00 ...CLIP...CLIP
-
6213295-33010 ...O RING...O RING
-
6309404-06429 CLAMP (L:45)CLAMP (L:45)
-
6409404-08420 CLAMP (L:120 T:1.0)CLAMP (L:120 T:1.0)
-
6513650-25E01 HEATER ASSY, CARBURETOR (OPT)HEATER ASSY, CARBURETOR (OPT)
-
6613655-16F00 SWITCH, CARB HEATER THERMO (OPT)SWITCH, CARB HEATER THERMO (OPT)
