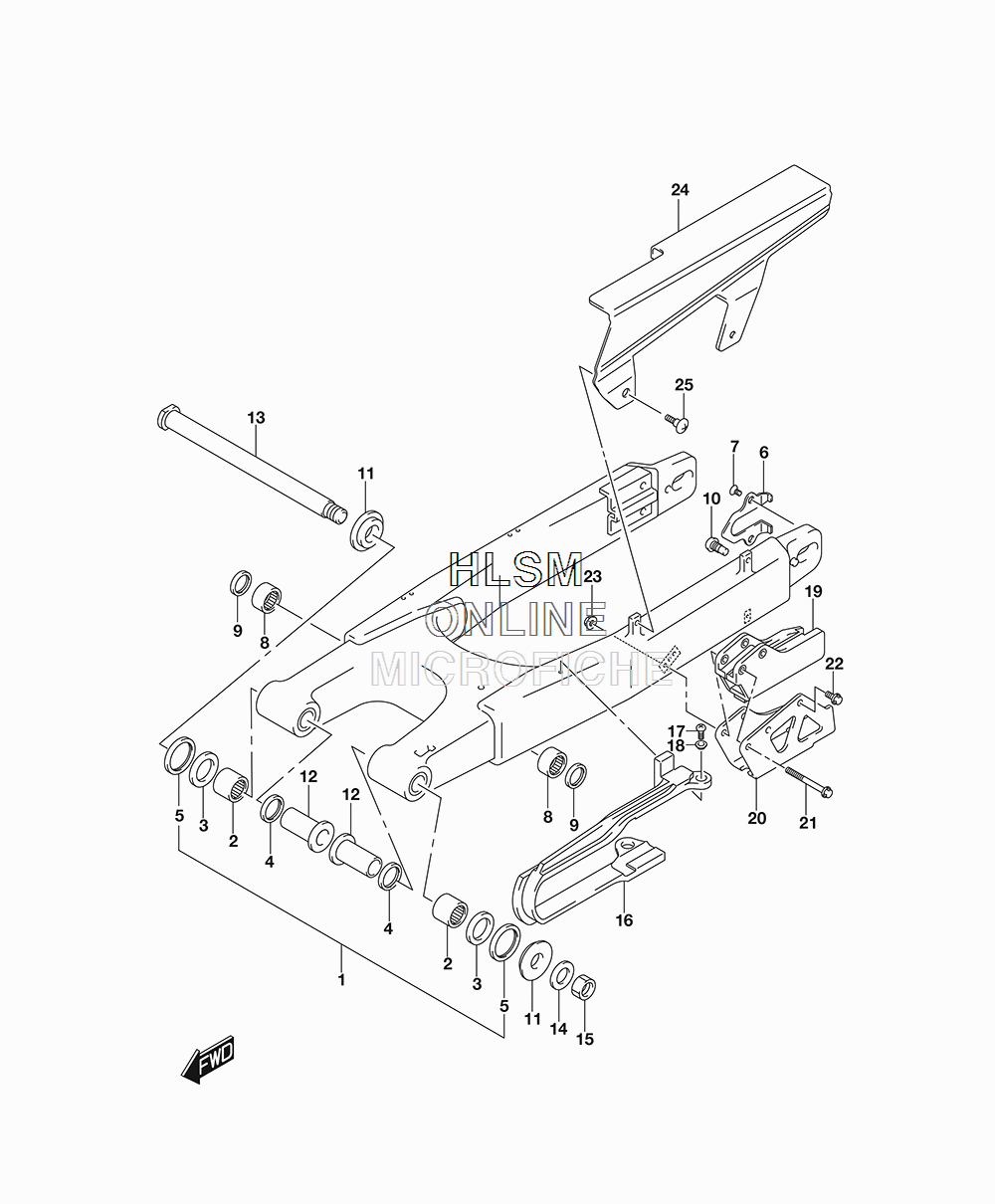

SUSPENSION - REAR SWINGARM для Suzuki DR-Z400SL8 - 2018 года выпуска`
-
№АртикулНазвание
-
161000-29F50 SWINGARM ASSY, REARSWINGARM ASSY, REAR
-
209263-22017 ...BEARING (22X29X30)...BEARING (22X29X30)
-
309263-22064 ...BEARING (22X35X2)...BEARING (22X35X2)
-
409285-22001 ...OIL SEAL (22X29X4) (INNER)...OIL SEAL (22X29X4) (INNER)
-
561262-36E00 ...SEAL, REAR SWINGARM PIVOT OUTER...SEAL, REAR SWINGARM PIVOT OUTER
-
661128-29E00 ...PLATE, REAR SWINGARM AXLE...PLATE, REAR SWINGARM AXLE
-
709126-05009 ...SCREW (5X8)...SCREW (5X8)
-
809263-20086 ...BEARING (20X27X15)...BEARING (20X27X15)
-
962624-14500 ...SEAL, REAR CUSHION ROD...SEAL, REAR CUSHION ROD
-
1061431-13E10 ...STOPPER, CHAIN ADJUSTER...STOPPER, CHAIN ADJUSTER
-
1161250-44E00 SPACER, SWINGARM PIVOT OUTERSPACER, SWINGARM PIVOT OUTER
-
1261252-36E00 SPACER, SWINGARM PIVOT INNERSPACER, SWINGARM PIVOT INNER
-
1361211-29F00 SHAFT, REAR SWINGARM PIVOTSHAFT, REAR SWINGARM PIVOT
-
1408322-0116B WASHERWASHER
-
1509159-16007 NUTNUT
-
1661273-29F00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1702112-0508A SCREWSCREW
-
1809169-05022 WASHERWASHER
-
1961341-35G00 GUIDE, CHAINGUIDE, CHAIN
-
2061342-37F00 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
-
2101547-0650A BOLTBOLT
-
2201547-0612A BOLTBOLT
-
2308319-3106A NUTNUT
-
2461310-34E00 CASE, CHAINCASE, CHAIN
-
2509139-06083 SCREW (6X16)SCREW (6X16)
