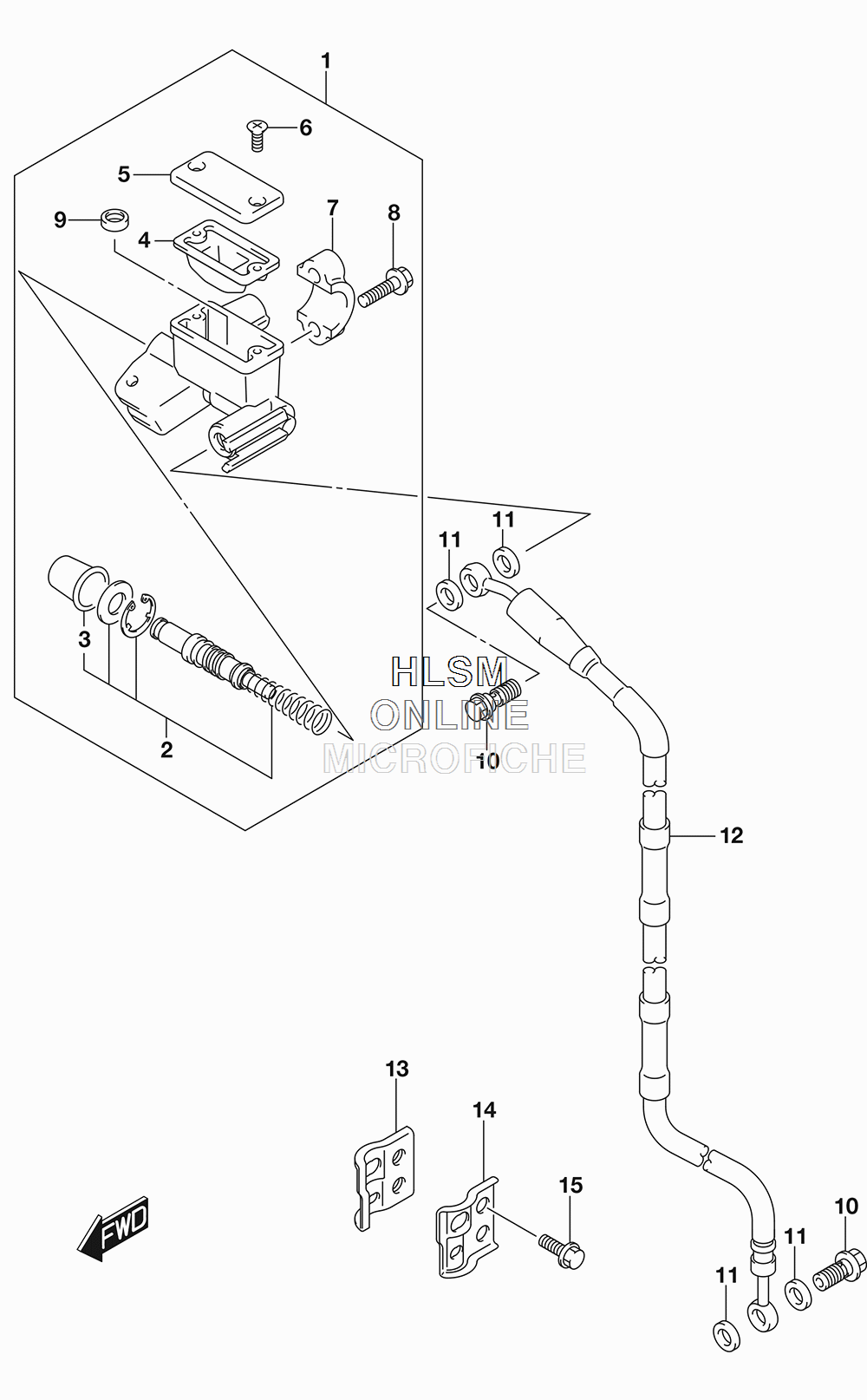

BRAKE - FRONT MASTER CYLINDER (EXCEPT CALIF.) для Suzuki RM-85L7 - 2017 года выпуска
-
№АртикулНазвание
-
159600-37F00 CYLINDER ASSY, FRONT MASTERCYLINDER ASSY, FRONT MASTER
-
259600-37810 ...PISTON & CUP SET...PISTON & CUP SET
-
359666-44300 ......BOOT......BOOT
-
459667-14500 ...DIAPHRAGM...DIAPHRAGM
-
569669-44E00 ...CAP...CAP
-
669689-49300 ...SCREW...SCREW
-
759671-27C00 ...HOLDER...HOLDER
-
859675-06F00 ...BOLT...BOLT
-
959748-36E00 ...SEPARATOR...SEPARATOR
-
1009360-10062 UNIONUNION
-
1109161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1259480-03B81 HOSE, FRONT BRAKEHOSE, FRONT BRAKE
-
1359260-03B00 CLAMP, FRONT BRAKE HOSE (INNER)CLAMP, FRONT BRAKE HOSE (INNER)
-
1459271-03B00 CLAMP, FRONT BRAKE HOSE (OUTER)CLAMP, FRONT BRAKE HOSE (OUTER)
-
1501547-0616A BOLTBOLT
