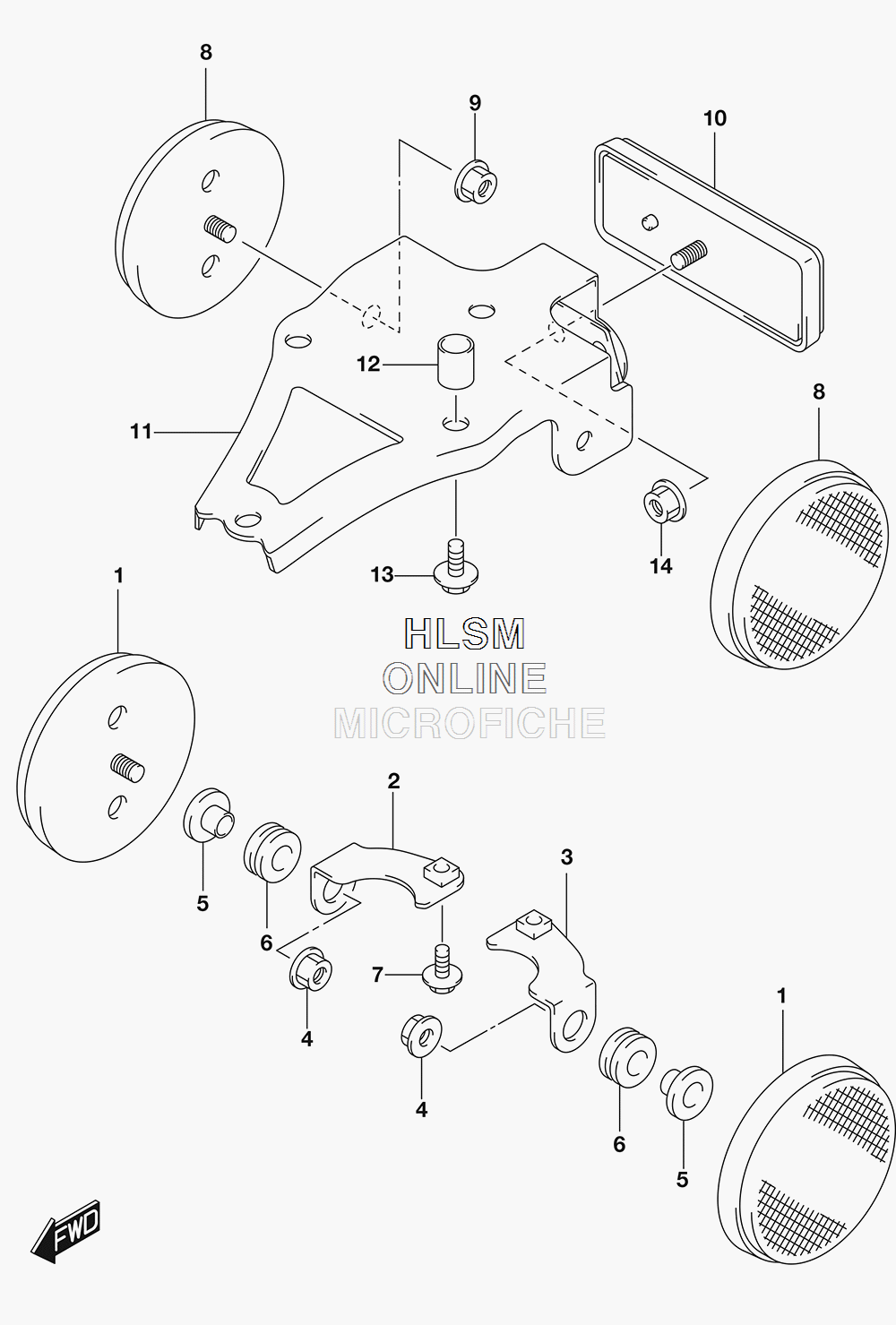

REFLECTOR (CANADA) для Suzuki DR-Z70L7 - 2017 года выпуска
-
№АртикулНазвание
-
135950-14A20 REFLEX REFLECTOR ASSY, FR SIDREFLEX REFLECTOR ASSY, FR SID
-
235956-14H00 BRACKET, FRONT SIDE REAR (RH)BRACKET, FRONT SIDE REAR (RH)
-
335957-14H00 BRACKET, FRONT SIDE REAR (LH)BRACKET, FRONT SIDE REAR (LH)
-
409159-05049 NUTNUT
-
509169-06063 WASHERWASHER
-
609320-08066 CUSHIONCUSHION
-
702162-0612A BOLTBOLT
-
835970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
908316-1005A NUTNUT
-
1035970-07F01 REFLECTOR ASSY, REARREFLECTOR ASSY, REAR
-
1135974-14H00 BRACKET, SIDE & REAR REFLBRACKET, SIDE & REAR REFL
-
1209180-06291 SPACER (6.5X10X13)SPACER (6.5X10X13)
-
1302162-0625A BOLT, REAR REFL BRACKETBOLT, REAR REFL BRACKET
-
1408316-1005A NUTNUT
