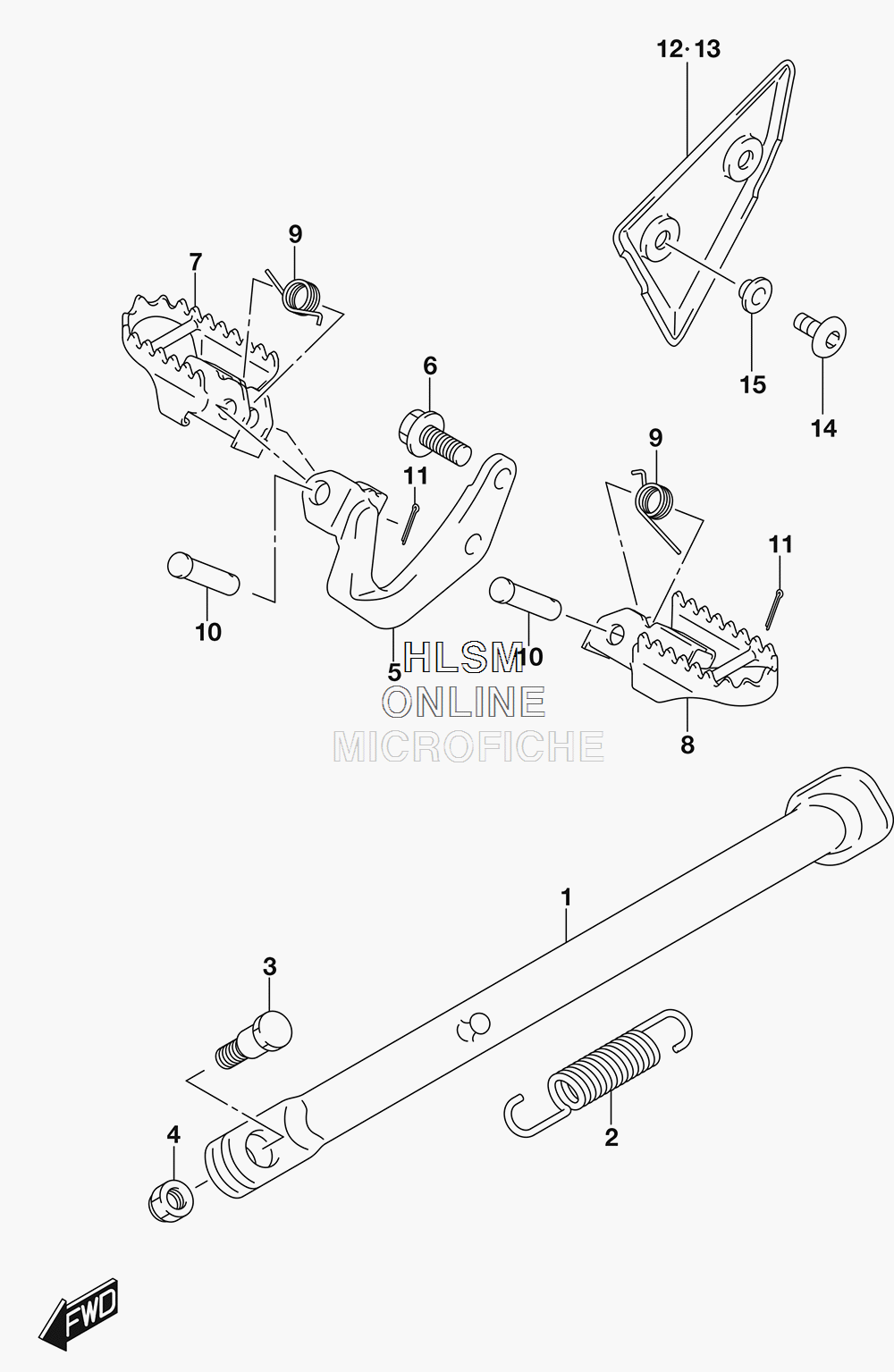

STAND (CANADA) для Suzuki DR-Z125LL7 - 2017 года выпуска`
-
№АртикулНазвание
-
142310-08G00 STAND, PROPSTAND, PROP
-
209443-17006 SPRINGSPRING
-
309111-10060 BOLT (10X33)BOLT (10X33)
-
442321-03FK0 NUTNUT
-
543510-08G00 BRACKET, FOOTREST (RH)BRACKET, FOOTREST (RH)
-
601550-1025A BOLTBOLT
-
743550-03B00-019 FOOTREST, FRONT (RH) (019 - BLACK)FOOTREST, FRONT (RH) (019 - BLACK)
-
843560-03B00-019 FOOTREST, FRONT (LH) (019 - BLACK)FOOTREST, FRONT (LH) (019 - BLACK)
-
909448-15004 SPRINGSPRING
-
1009200-10013 PINPIN
-
1104111-2015A COTTER PINCOTTER PIN
-
1243571-08G00 GUARD, FOOTREST (RH)GUARD, FOOTREST (RH)
-
1343572-08G00 GUARD, FOOTREST (LH)GUARD, FOOTREST (LH)
-
1409139-06115 SCREW (6X12)SCREW (6X12)
-
1509169-06071 WASHERWASHER
