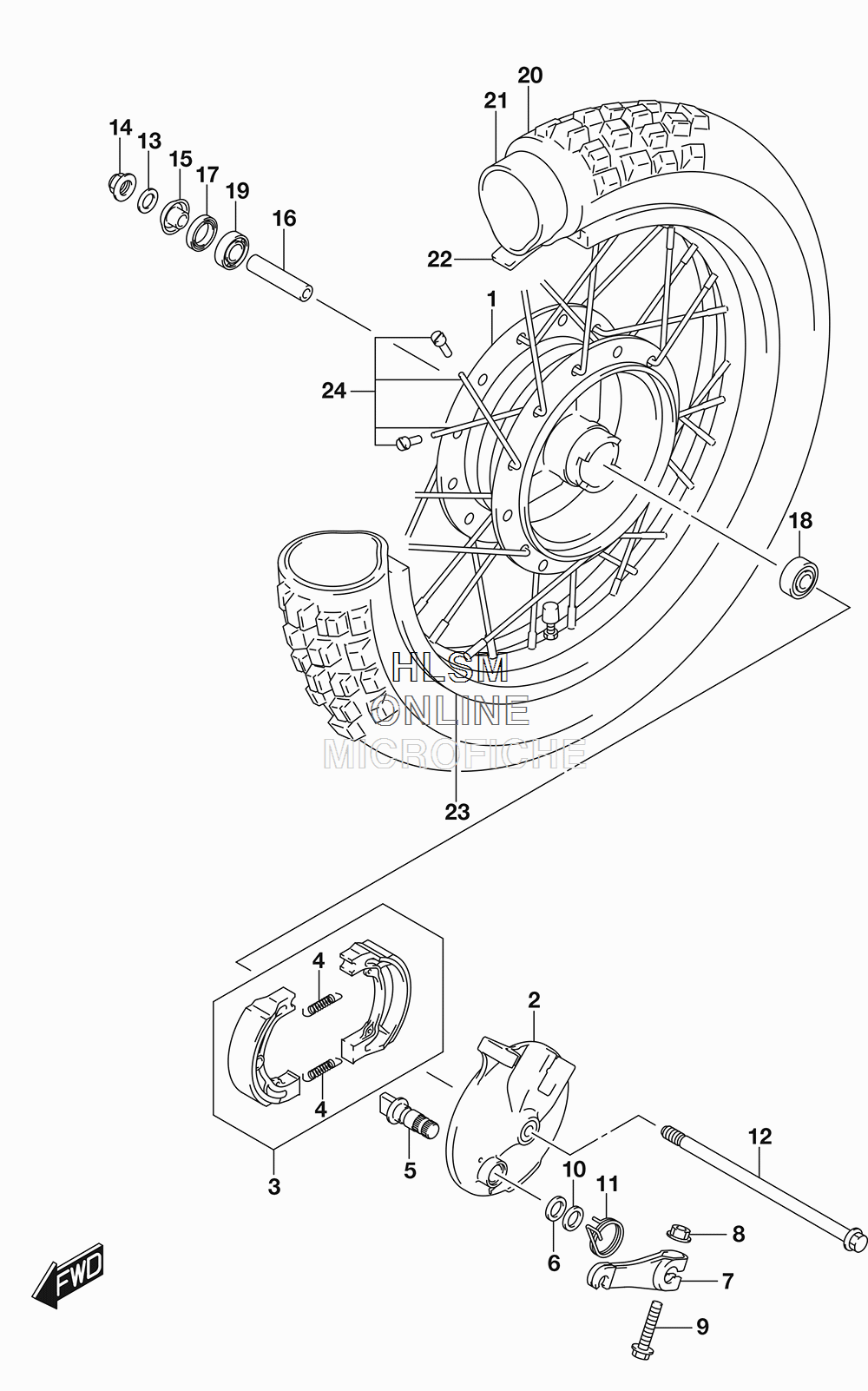

WHEEL - FRONT (CANADA) для Suzuki DR-Z125L7 - 2017 года выпуска
-
№АртикулНазвание
-
154110-09401 HUB, FRONT WHEELHUB, FRONT WHEEL
-
254210-08G00 PANEL, FRONT BRAKE ANCHORPANEL, FRONT BRAKE ANCHOR
-
354401-43830 SHOE SET, BRAKESHOE SET, BRAKE
-
409443-07044 ...SPRING...SPRING
-
554441-35401 CAM, FRONT BRAKECAM, FRONT BRAKE
-
609280-14011 O-RINGO-RING
-
754451-26500 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
808316-1006A NUTNUT
-
901550-0635A BOLTBOLT
-
1009160-14055 WASHER (14.5X22X1.6)WASHER (14.5X22X1.6)
-
1154484-08G00 SPRING, FRONT BAKESPRING, FRONT BAKE
-
1254711-08G00 AXLE, FRONTAXLE, FRONT
-
1309160-10005 WASHER (10X18X3.2)WASHER (10X18X3.2)
-
1408319-3110A NUTNUT
-
1554740-26101 SPACER, FRONT AXLE RHSPACER, FRONT AXLE RH
-
1609180-10148 SPACER (10.2X16X51)SPACER (10.2X16X51)
-
1709284-15001 OIL SEALOIL SEAL
-
1808143-63007 BEARING (LH)BEARING (LH)
-
1908113-62007 BEARING (RH)BEARING (RH)
-
2055110-08G00 TIRE, FRONT (70/100-17 M)TIRE, FRONT (70/100-17 M)
-
2155200-08G00 TUBE ASSY., WHEEL INNERTUBE ASSY., WHEEL INNER
-
2255261-08G20 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2355311-08G20 RIM, WHEEL (17X1.40)RIM, WHEEL (17X1.40)
-
2455320-08G20 SPOKE SET, FONT WHEELSPOKE SET, FONT WHEEL
