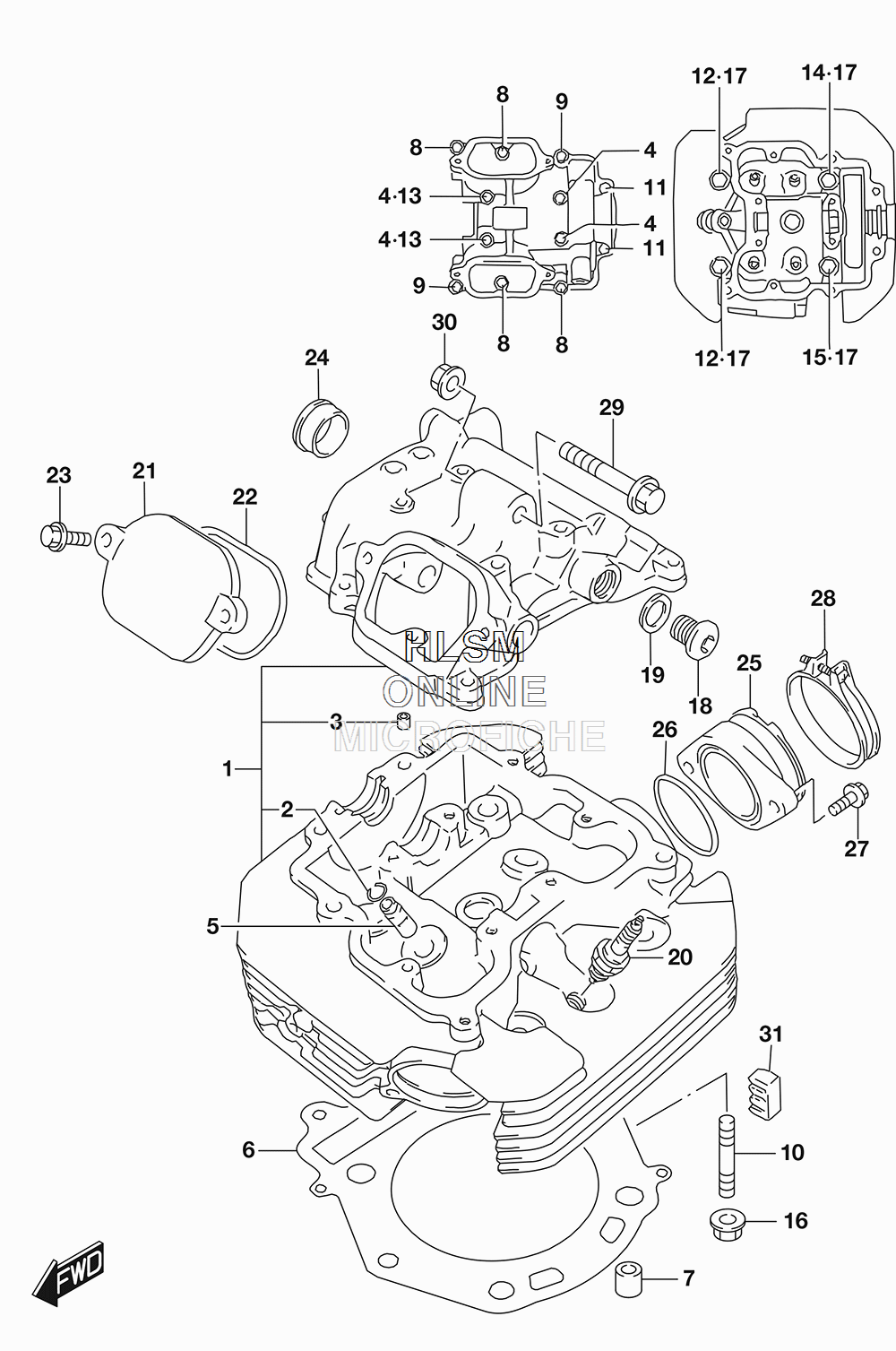

CYLINDER HEAD для Suzuki DR-650SEL7 - 2017 года выпуска`
-
№АртикулНазвание
-
111100-32E20 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209381-10004 ...SNAP RING...SNAP RING
-
309206-08001 ...PIN (8X11)...PIN (8X11)
-
409103-06102 ...BOLT (6X55)...BOLT (6X55)
-
511115-32E70 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
611141-32E00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
704211-13189 PINPIN
-
801550-0625A BOLTBOLT
-
901550-0630A BOLTBOLT
-
1009108-08142 STUD BOLTSTUD BOLT
-
1109103-06167 BOLT (6X115)BOLT (6X115)
-
1209103-10178 BOLT (10X180)BOLT (10X180)
-
1309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1409103-10179 BOLT (10X190)BOLT (10X190)
-
1509103-10180 BOLT (10X200)BOLT (10X200)
-
1608316-1008A NUTNUT
-
1709168-10017 GASKET (10.5X22X2)GASKET (10.5X22X2)
-
1809248-14011 PLUG (14X12)PLUG (14X12)
-
1909168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
20-109482-00460 SPARK PLUG (CR10E) (NGK)SPARK PLUG (CR10E) (NGK)
-
20-209482-00461 SPARK PLUG (U31ESR-N) (DENSO)SPARK PLUG (U31ESR-N) (DENSO)
-
20-309482-00458 SPARK PLUG (CR9E) (NGK) (OPT)SPARK PLUG (CR9E) (NGK) (OPT)
-
20-409482-00459 SPARK PLUG (U27ESR-N) (DENSO) (OPT)SPARK PLUG (U27ESR-N) (DENSO) (OPT)
-
2111175-44B00 CAP, INSPECTIONCAP, INSPECTION
-
2211177-44B01 O RINGO RING
-
2301550-0620A BOLTBOLT
-
2409241-25007 PLUG (OD:30)PLUG (OD:30)
-
2513110-32E00 PIPE, INTAKEPIPE, INTAKE
-
2609280-46002 O RING (D:2.4,ID:45.7)O RING (D:2.4,ID:45.7)
-
2709126-06014 SCREW (6X16)SCREW (6X16)
-
2809402-58208 CLAMPCLAMP
-
2909103-08332 BOLT (8X53)BOLT (8X53)
-
3008319-3108A NUTNUT
-
3111151-32E00 PAD, RUBBERPAD, RUBBER
