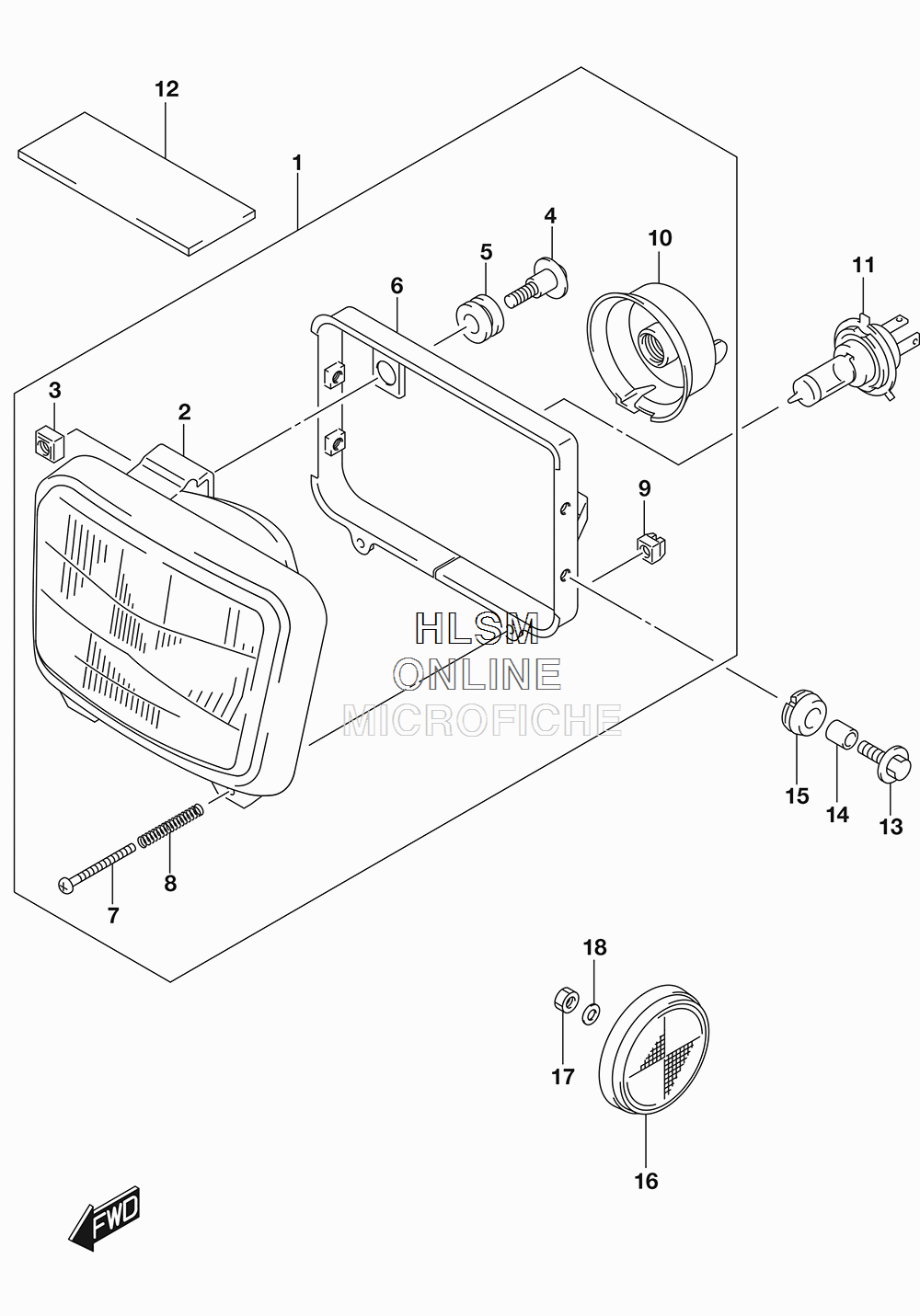

HEADLAMP (CANADA) для Suzuki DR-200SL7 - 2017 года выпуска`
-
№АртикулНазвание
-
135100-12EA0-999 HEADLAMP ASSYHEADLAMP ASSY
-
235121-12EA0 ...UNIT ASSY...UNIT ASSY
-
335135-45900 ...NUT...NUT
-
435136-38A00 ...SCREW...SCREW
-
535139-45230 ...CUSHION...CUSHION
-
635141-12EA0 ...HOUSING...HOUSING
-
735151-12EA0 ...SCREW, ADJUSTING...SCREW, ADJUSTING
-
835154-12EA0 ...SPRING, ADJUSTING...SPRING, ADJUSTING
-
935135-12E20 ...NUT, ADJUSTING...NUT, ADJUSTING
-
1035173-01440 ...COVER, SOCKET...COVER, SOCKET
-
1109471-12185 BULB (12V, 60/55W)BULB (12V, 60/55W)
-
1236920-44A01 CUSHION, HEADLAMPCUSHION, HEADLAMP
-
1309116-06167 BOLT (6X20)BOLT (6X20)
-
1409180-06310 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
1509320-09018 CUSHIONCUSHION
-
1635950-14A11 REFLEX REFLECTOR ASSY, FRONT SIDEREFLEX REFLECTOR ASSY, FRONT SIDE
-
1708310-0005A NUTNUT
-
1809160-05026 WASHER (5.2X12X1.6) (RH)WASHER (5.2X12X1.6) (RH)
