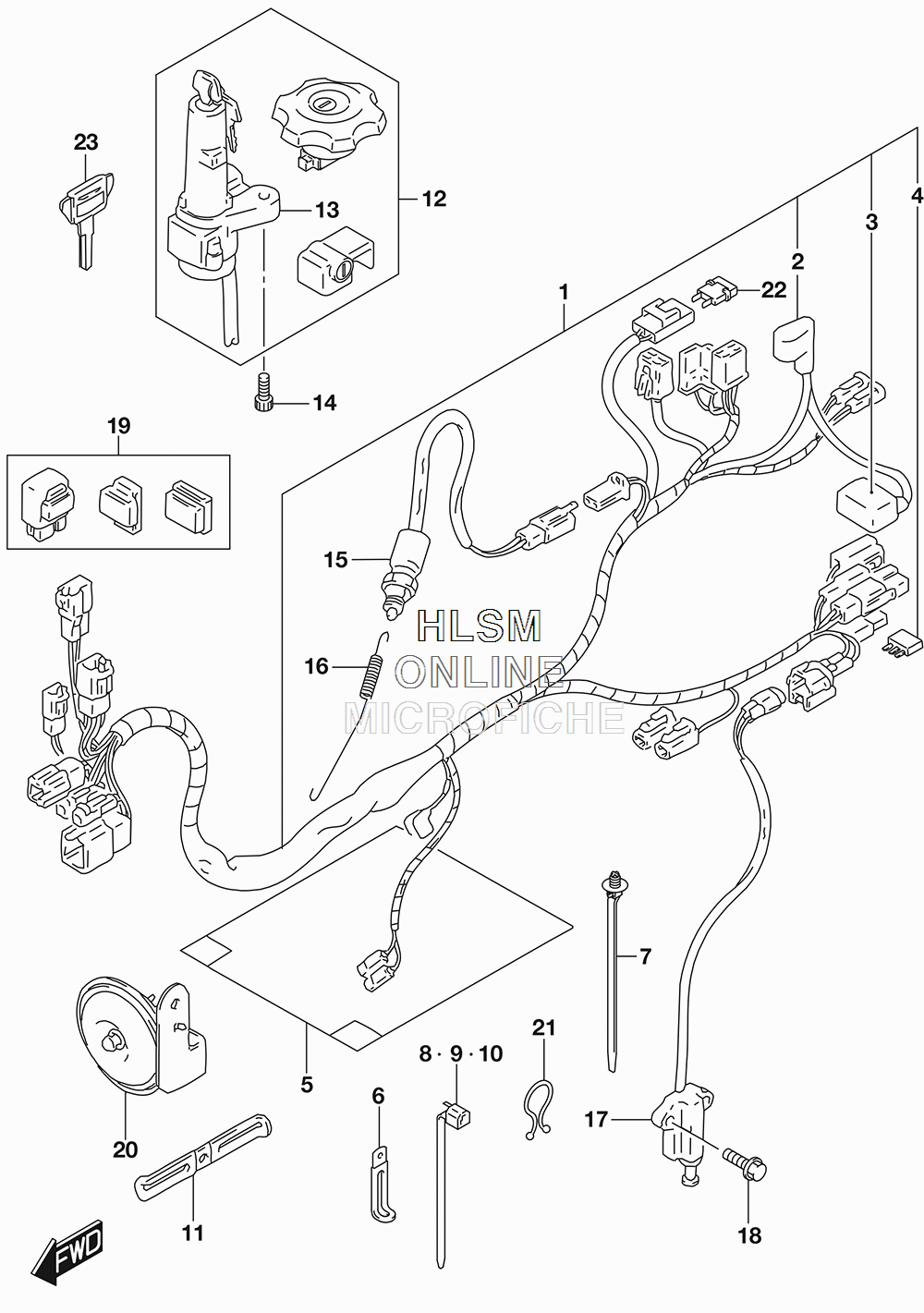

ELECTRICAL - WIRING HARNESS (EXCEPT CALIF.) для Suzuki DR-200SL7 - 2017 года выпуска`
-
№АртикулНазвание
-
136610-49J00 HARNESS, WIRINGHARNESS, WIRING
-
231861-10D00 ...CAP, STARTER RELAY...CAP, STARTER RELAY
-
333624-10D00 ...CAP, BATTERY PLUS...CAP, BATTERY PLUS
-
436611-38A10 ...DIODE...DIODE
-
536618-15D20 COVER, WIRE HARNESSCOVER, WIRE HARNESS
-
609404-06433 CLAMP (L:80)CLAMP (L:80)
-
709407-17403 CLAMP (L:154)CLAMP (L:154)
-
809407-14403 CLAMP (L:125)CLAMP (L:125)
-
909407-18402 CLAMP (L:165)CLAMP (L:165)
-
1009407-19401 CLAMP (L:190)CLAMP (L:190)
-
1136651-05301 CLAMP, STARTER MOTOR LEADCLAMP, STARTER MOTOR LEAD
-
1237100-42840 LOCK SETLOCK SET
-
1337100-42A01 ...SWITCH ASSY, IGNITION...SWITCH ASSY, IGNITION
-
1407130-0616B BOLTBOLT
-
1537740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1609443-06064 SPRINGSPRING
-
1737840-06G00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1801550-0620A BOLTBOLT
-
1938740-24X50 RELAY ASSY, SIDE STANDRELAY ASSY, SIDE STAND
-
2038500-44B00 HORN ASSYHORN ASSY
-
2109408-00012 CLIP (ID:11.5)CLIP (ID:11.5)
-
2209481-20101 FUSE (20A)FUSE (20A)
-
23-137146-03A00 KEY, BLANK (OPT)KEY, BLANK (OPT)
-
23-237146-03A10 KEY, BLANK (OPT)KEY, BLANK (OPT)
-
23-337146-03A20 KEY, BLANK (OPT)KEY, BLANK (OPT)
-
23-437146-03A30 KEY, BLANK (OPT)KEY, BLANK (OPT)
