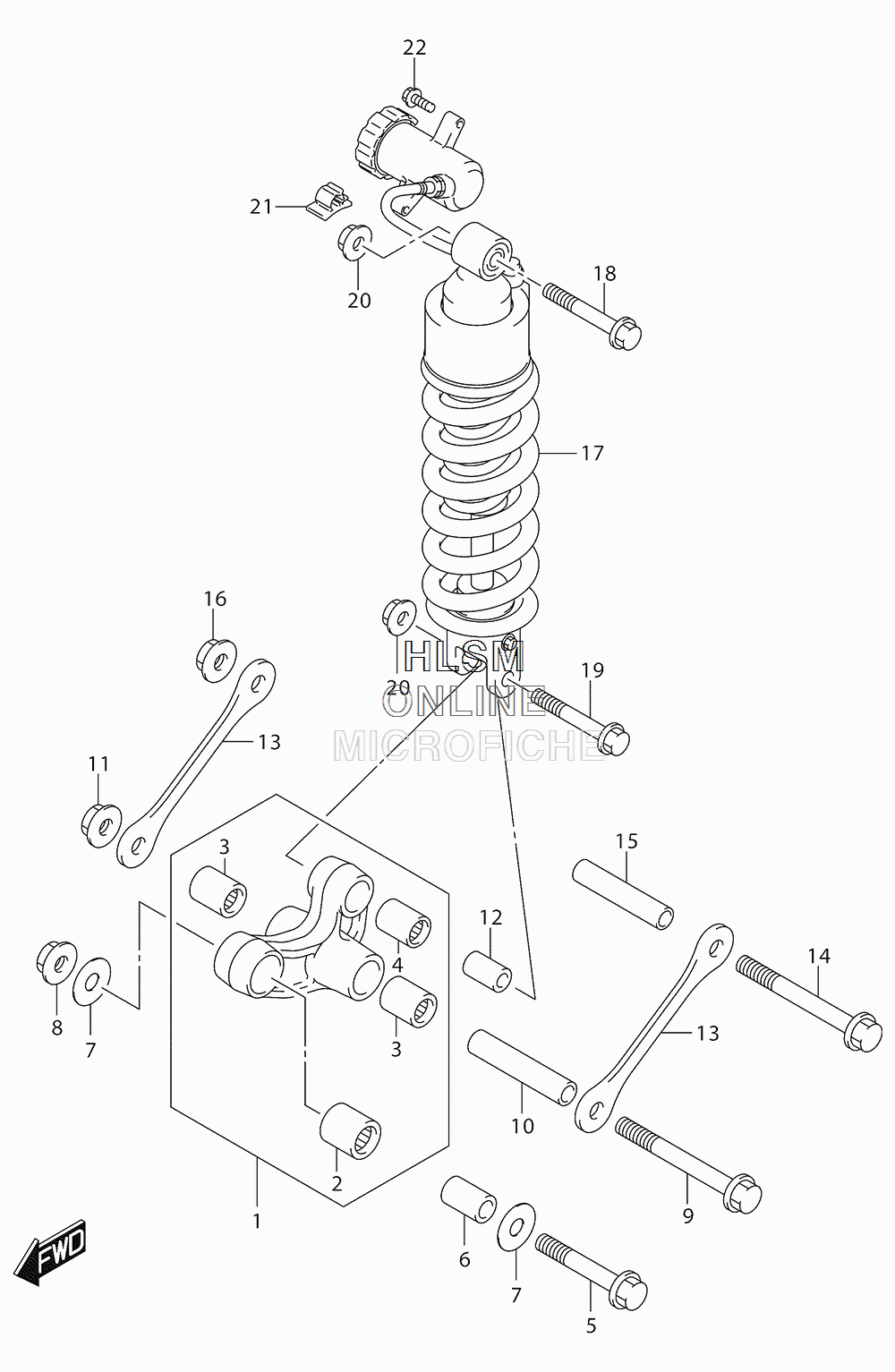

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki V-STROM 650X EXP ABS - 2016 года выпуска`
-
№АртикулНазвание
-
162600-06870 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20073 ...BEARING (20X27X30) (FRONT)...BEARING (20X27X30) (FRONT)
-
309263-17037 ...BEARING (17X24X25) (CENTER)...BEARING (17X24X25) (CENTER)
-
409263-17034 ...BEARING (17X24X26) (REAR)...BEARING (17X24X26) (REAR)
-
562658-19F00 BOLT, FRONT (12X78)BOLT, FRONT (12X78)
-
662684-12C00 SPACER, FRONT (12X20X32)SPACER, FRONT (12X20X32)
-
709160-12037 WASHER (12X34X1)WASHER (12X34X1)
-
809159-12056 NUTNUT
-
962621-19D00 BOLT, RR CUSHION RODBOLT, RR CUSHION ROD
-
1009180-12122 SPACER (12X17X85) (CENTER)SPACER (12X17X85) (CENTER)
-
1109159-12056 NUTNUT
-
1262684-40A10 SPACER, REAR (10X17X30)SPACER, REAR (10X17X30)
-
1362641-06G00 ROD, REAR CUSHIONROD, REAR CUSHION
-
1462621-19D00 BOLT, RR CUSHION RODBOLT, RR CUSHION ROD
-
1509180-12122 SPACER (12X17X85) (ROD)SPACER (12X17X85) (ROD)
-
1609159-12056 NUTNUT
-
1762100-06GH0-019 ABSORBER ASSY, REAR SHOCK (BLACK)ABSORBER ASSY, REAR SHOCK (BLACK)
-
1809103-10033 BOLT (10X70) (UPPER)BOLT (10X70) (UPPER)
-
1909103-10143 BOLT (10X55) (LOWER)BOLT (10X55) (LOWER)
-
2009159-10115 NUTNUT
-
2109403-10313 CLAMPCLAMP
-
2201550-0616A BOLTBOLT
