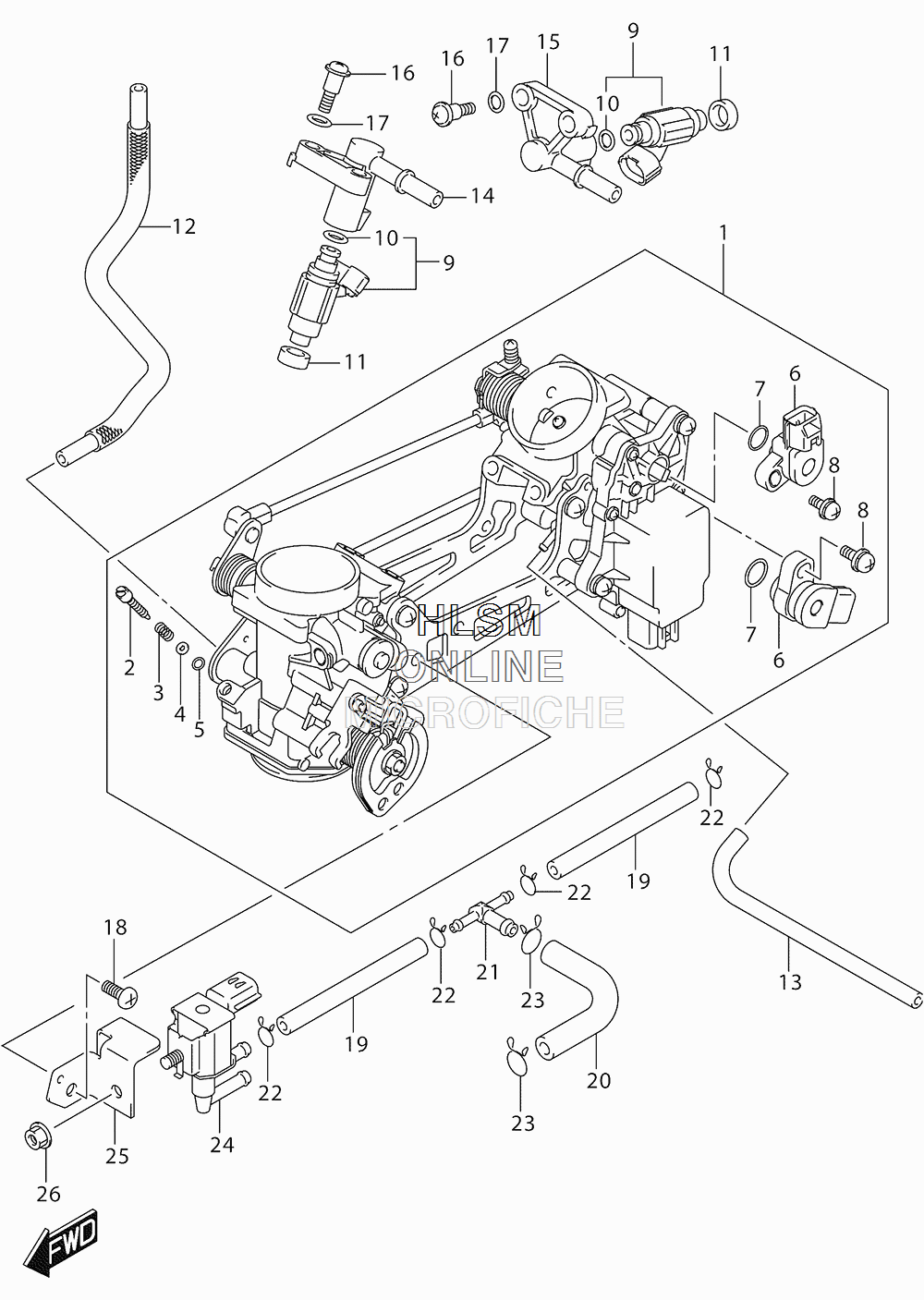

CARBURETOR - THROTTLE BODY (CALIF) для Suzuki V-STROM 650 ADVENTURE ABS - 2016 года выпуска
-
№АртикулНазвание
-
113405-11J10 THROTTLE BODYTHROTTLE BODY
-
213269-33E00 ...SCREW...SCREW
-
313268-48700 ...SPRING, THROTTLE SCREW...SPRING, THROTTLE SCREW
-
413606-47A00 ...WASHER...WASHER
-
513295-29900 ...O RING...O RING
-
613580-27G21 ...SENSOR ASSY...SENSOR ASSY
-
713575-29G00 ...O RING...O RING
-
813605-02F00 ...SCREW...SCREW
-
915710-44H00 INJECTOR ASSYINJECTOR ASSY
-
1015717-58B00 ...O RING...O RING
-
1115722-29G00 SEALSEAL
-
1213683-44H00 HOSEHOSE
-
1313683-44H10 HOSEHOSE
-
1415731-11J00 DELIVERY PIPEDELIVERY PIPE
-
1515732-11J00 DELIVERY PIPEDELIVERY PIPE
-
1613601-11J00 SCREW, DELIVERY PIPESCREW, DELIVERY PIPE
-
1713602-29G00 PACKINGPACKING
-
1813602-06128 SCREWSCREW
-
1913681-06G40 HOSEHOSE
-
2013683-44H30 HOSEHOSE
-
2113685-04F10 NIPPLENIPPLE
-
2209401-06101 CLIPCLIP
-
2309401-10410 CLIPCLIP
-
2418117-52G10 VALVE, WASTEGATE CONTVALVE, WASTEGATE CONT
-
2518119-44H00 BRACKETBRACKET
-
2608316-1006A NUTNUT
