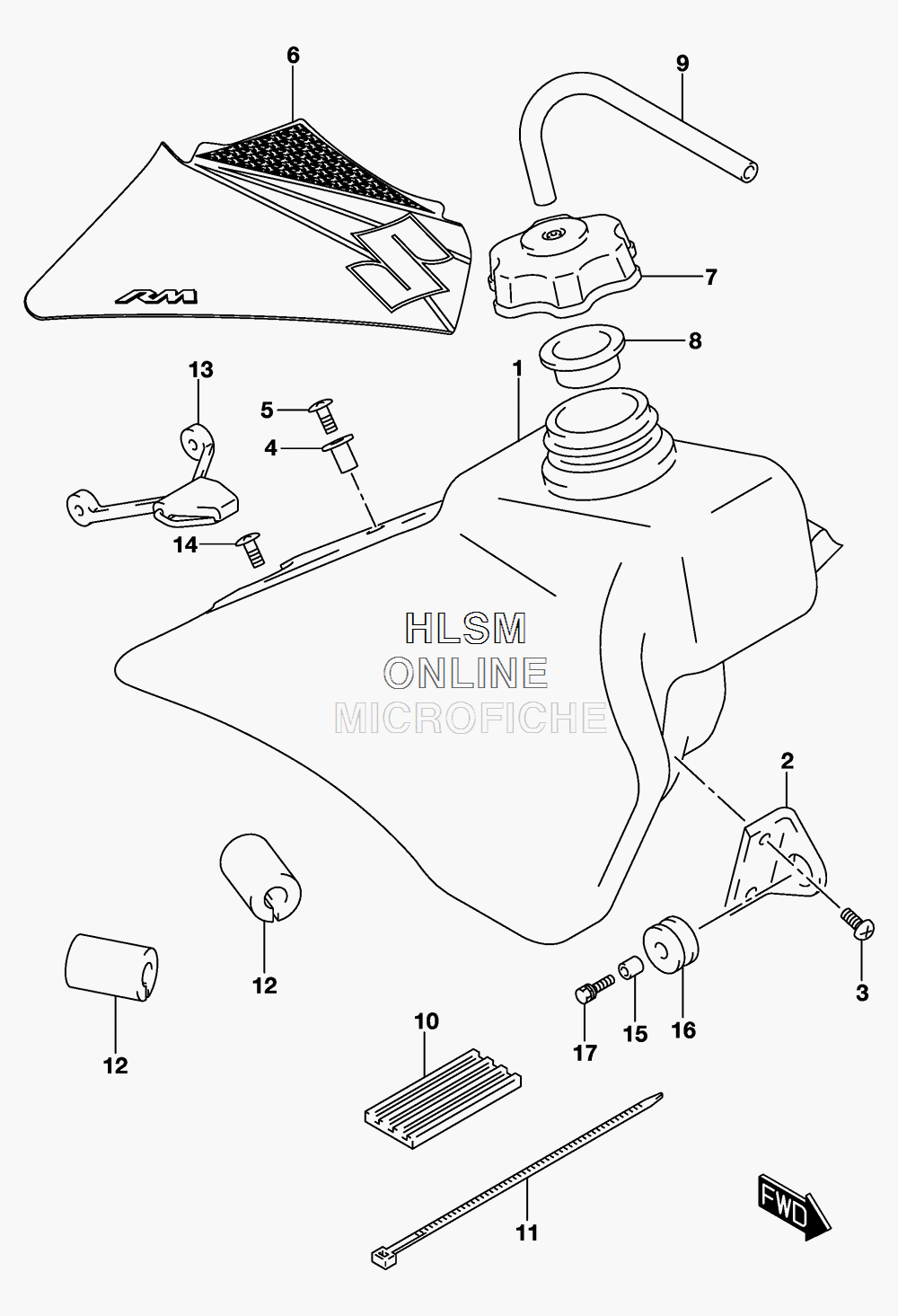

FUEL TANK для Suzuki RM85 - 2016 года выпуска`
-
№АртикулНазвание
-
144110-03B10-YU1 TANK, FUEL (YELLOW)TANK, FUEL (YELLOW)
-
244131-27C01 ...BRACKET, FRONT...BRACKET, FRONT
-
302142-0612B ...SCREW...SCREW
-
444132-27C01 ...HOOK, FRONT...HOOK, FRONT
-
502142-0620B ...SCREW...SCREW
-
668111-03B60-A86 TAPE SET, FUEL TANKTAPE SET, FUEL TANK
-
744210-37F00 CAP, FUEL TANK FILLERCAP, FUEL TANK FILLER
-
844248-27C00 GASKET, FUEL TANK FILLER CAPGASKET, FUEL TANK FILLER CAP
-
909352-50823-600 HOSE (5X8.2X600) (L:600->280)HOSE (5X8.2X600) (L:600->280)
-
1044541-14300 CUSHION, UPPER FRONTCUSHION, UPPER FRONT
-
1109407-25402 CLAMP (L:248)CLAMP (L:248)
-
1244542-17300 CUSHION, UPPER REARCUSHION, UPPER REAR
-
1344560-26C00 BAND, REARBAND, REAR
-
1409139-06134 SCREW (6X13.5)SCREW (6X13.5)
-
1509180-06268 SPACER (6.5X9X13.5)SPACER (6.5X9X13.5)
-
1614762-01B01 CUSHIONCUSHION
-
1709116-06195 BOLT (6X35)BOLT (6X35)
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- BRAKE PEDAL W/ STAND
- CARBURETOR ASSY.
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS - WARNING LABEL
- DECALS - WARNING LABEL (CAN)
- ELECTRICAL
- EXHAUST VALVE
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FUEL COCK ASSY.
- • FUEL TANK
- GASKET KIT
- GEAR SHIFTING
- HANDLE LEVER
- HANDLEBAR
- KICK STARTER
- MAGNETO
- MUFFLER
- RADIATOR
- REAR BRAKE
- REAR SWINGARM
- SEAT
- SIDE COVER
- STEERING STEM
- SUSPENSION - CUSHION LEVER W/ SHOCK
- SUSPENSION - FRONT FORK
- SUSPENSION - SHOCKS REAR
- TRANSMISSION
- WHEEL - FRONT
- WHEEL - REAR
