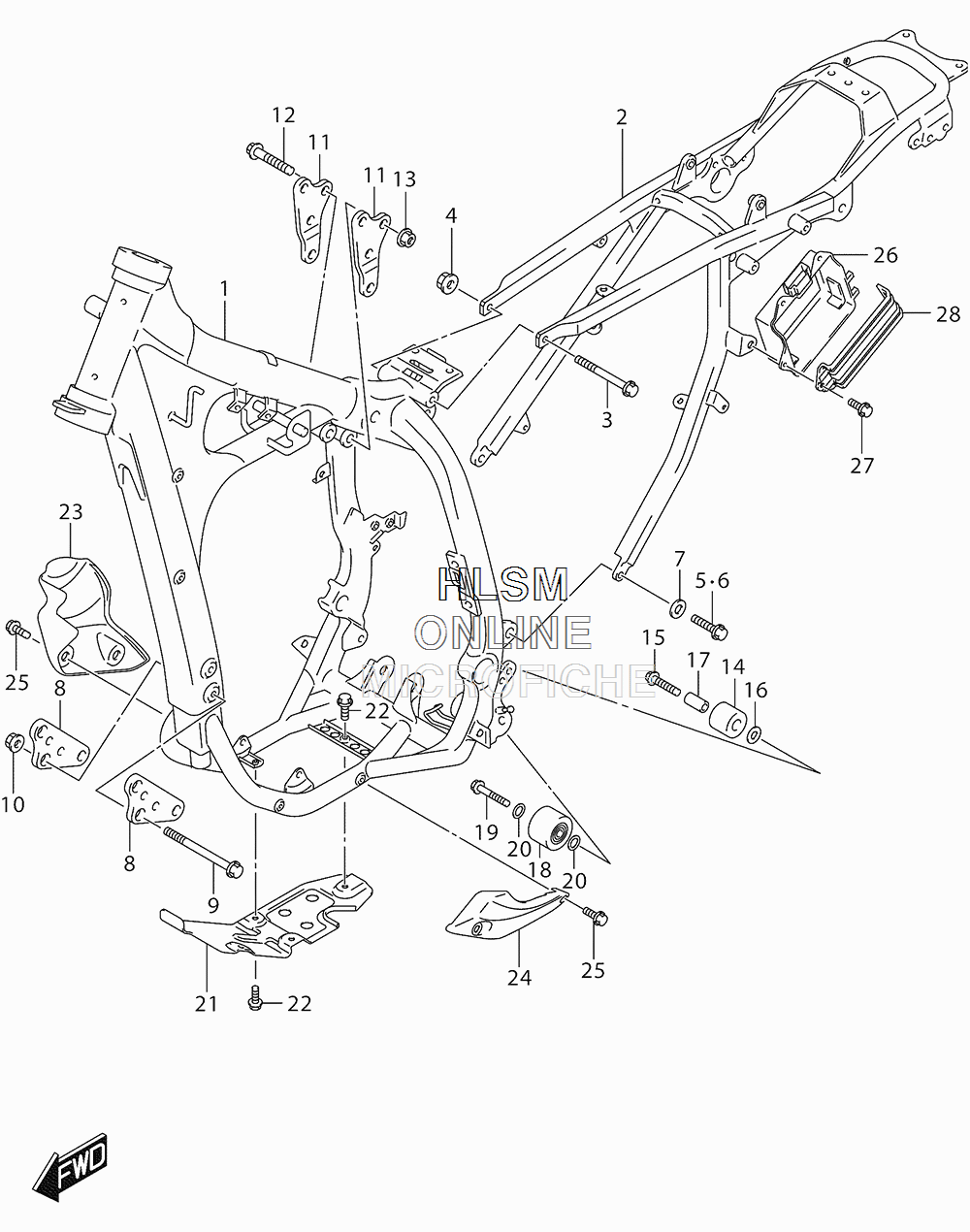

FRAME для Suzuki DR-Z400S - 2016 года выпуска`
-
№АртикулНазвание
-
141100-29F60-YPT FRAME (GRAY)FRAME (GRAY)
-
241200-29F70 RAIL, SEATRAIL, SEAT
-
309103-08098 BOLT (8X115)BOLT (8X115)
-
408319-3108A NUTNUT
-
509104-08035 BOLT (8X18)BOLT (8X18)
-
609103-08364 BOLT (8X20)BOLT (8X20)
-
709160-08120 WASHER (8.5X18X2)WASHER (8.5X18X2)
-
841911-29F00 PLATE, ENGINE MOUNT FRONTPLATE, ENGINE MOUNT FRONT
-
909103-08363 BOLT (8X90)BOLT (8X90)
-
1008319-3108A NUTNUT
-
1141993-29F10 PLATE, ENGINE MOUNT REARPLATE, ENGINE MOUNT REAR
-
1209103-08081 BOLT (8X50)BOLT (8X50)
-
1308319-3108A NUTNUT
-
1443911-13E00 ROLLER, CHAIN CONTROL UPPERROLLER, CHAIN CONTROL UPPER
-
1509103-08083 BOLT (8X41)BOLT (8X41)
-
1608211-08201 WASHERWASHER
-
1709180-08215 SPACER (8.6X12.2X26.5)SPACER (8.6X12.2X26.5)
-
1843910-27C11 ROLLER, CHAIN CONTROLROLLER, CHAIN CONTROL
-
1909103-08083 BOLT (8X41)BOLT (8X41)
-
2009181-08111 SHIM (8X12X1)SHIM (8X12X1)
-
2142510-29F00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
2201550-0612A BOLTBOLT
-
2342521-29F00 GUARD, WATER PUMPGUARD, WATER PUMP
-
2442531-29F00 GUARD, MAG COVERGUARD, MAG COVER
-
2509111-08087 BOLT (8X16.5)BOLT (8X16.5)
-
2641541-29F00 HOLDER, BATTERYHOLDER, BATTERY
-
2709111-06072 BOLT (6X17.8)BOLT (6X17.8)
-
2841561-29F00 BAND, BATTERY HOLDERBAND, BATTERY HOLDER
