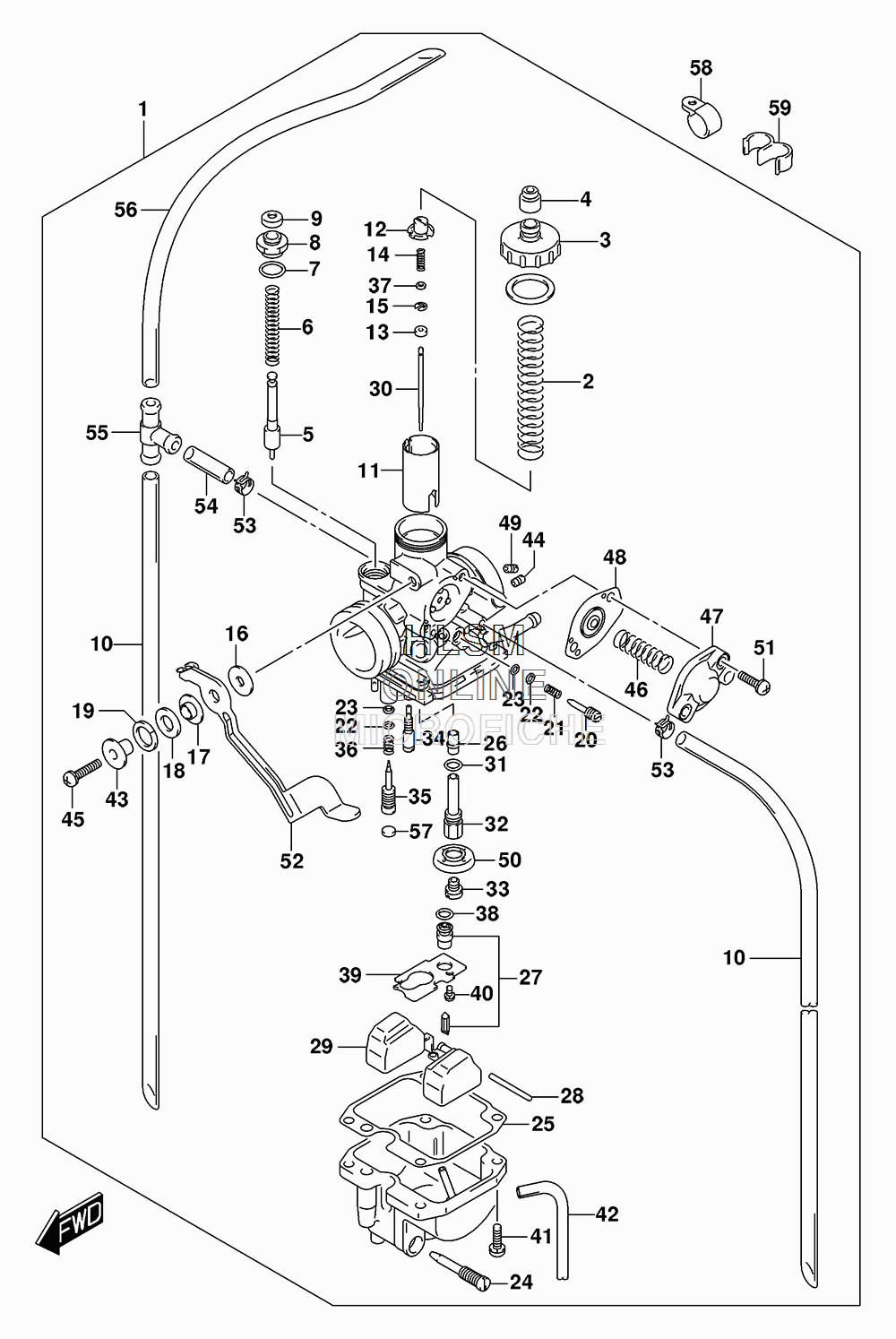

CARBURETOR ASSY. для Suzuki DR-Z125L - 2016 года выпуска`
-
№АртикулНазвание
-
113200-08G01 CARBURETOR ASSYCARBURETOR ASSY
-
213573-08G00 ...SPRING...SPRING
-
313261-08G00 ...MIXING CAP ASSY...MIXING CAP ASSY
-
413681-04010 ...CAP...CAP
-
513411-05320 ...PLUNGER ASSY...PLUNGER ASSY
-
613417-08G00 ...SPRING...SPRING
-
713278-47090 ...O RING...O RING
-
813418-44080 ...GUIDE HOLDER...GUIDE HOLDER
-
913682-31210 ...CAP...CAP
-
1013686-08G20 ...HOSE (5X8X475)...HOSE (5X8X475)
-
1113551-08G00 ...PISTON VALVE...PISTON VALVE
-
1213389-08G00 ...HOLDER...HOLDER
-
1313387-47010 ...RING...RING
-
1413481-33E00 ...SPRING...SPRING
-
1513394-40D20 ...E RING...E RING
-
1613421-05320 ...WASHER...WASHER
-
1713432-05320 ...RING...RING
-
1813589-47070 ...WASHER...WASHER
-
1908321-01087 ...WASHER...WASHER
-
2013267-08G00 ...ADJUST SCREW...ADJUST SCREW
-
2113268-08G00 ...SPRING...SPRING
-
2213291-29900 ...WASHER...WASHER
-
2313295-29900 ...O RING...O RING
-
2413247-08G00 ...SCREW...SCREW
-
2513251-29B00 ...GASKET...GASKET
-
2613341-08G00 ...NEEDLE, JET...NEEDLE, JET
-
2713370-08G00 ...VALVE ASSY, NEEDLE...VALVE ASSY, NEEDLE
-
2813254-01010 ...PIN...PIN
-
2913240-08G00 ...FLOAT ASSY...FLOAT ASSY
-
3013383-08G00 ...JET, NEEDLE (5HGM74)...JET, NEEDLE (5HGM74)
-
3113246-43010 ...O RING...O RING
-
3213385-08G00 ...JET HOLDER...JET HOLDER
-
3309491-20012 ...JET, MAIN (102.5)...JET, MAIN (102.5)
-
3409492-17017 ...JET, PILOT (17.5)...JET, PILOT (17.5)
-
3513279-08G00 ...ADJUSTER...ADJUSTER
-
3613268-47070 ...SPRING...SPRING
-
3713382-08G00 ...WASHER...WASHER
-
3813374-46710 ...O RING...O RING
-
3913259-29B10 ...PLATE...PLATE
-
4013601-03068 ...SCREW...SCREW
-
4113601-04148 ...SCREW...SCREW
-
4213684-40A00 ...HOSE (L:650->400)...HOSE (L:650->400)
-
4313424-05320 ...RING...RING
-
4409493-85001 ...JET, AIR (85.0)...JET, AIR (85.0)
-
4513601-44A10 ...SCREW...SCREW
-
4613481-08G00 ...SPRING...SPRING
-
4713502-10F00 ...COVER ASSY...COVER ASSY
-
4813480-10F00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
4909492-29002 ...JET, POWER (145)...JET, POWER (145)
-
5013387-08G00 ...HOLDER...HOLDER
-
5113601-08G00 ...SCREW...SCREW
-
5213413-08G00 ...LEVER...LEVER
-
5313671-08G00 ...CLIP...CLIP
-
5413686-08G00 ...HOSE (5X8X25)...HOSE (5X8X25)
-
5513685-48B00 ...NIPPLE...NIPPLE
-
5613686-08G10 ...HOSE (5X8X375)...HOSE (5X8X375)
-
5713281-05A00 ...PLUG...PLUG
-
5809403-22403 CLAMPCLAMP
-
5909408-00033 CLAMPCLAMP
