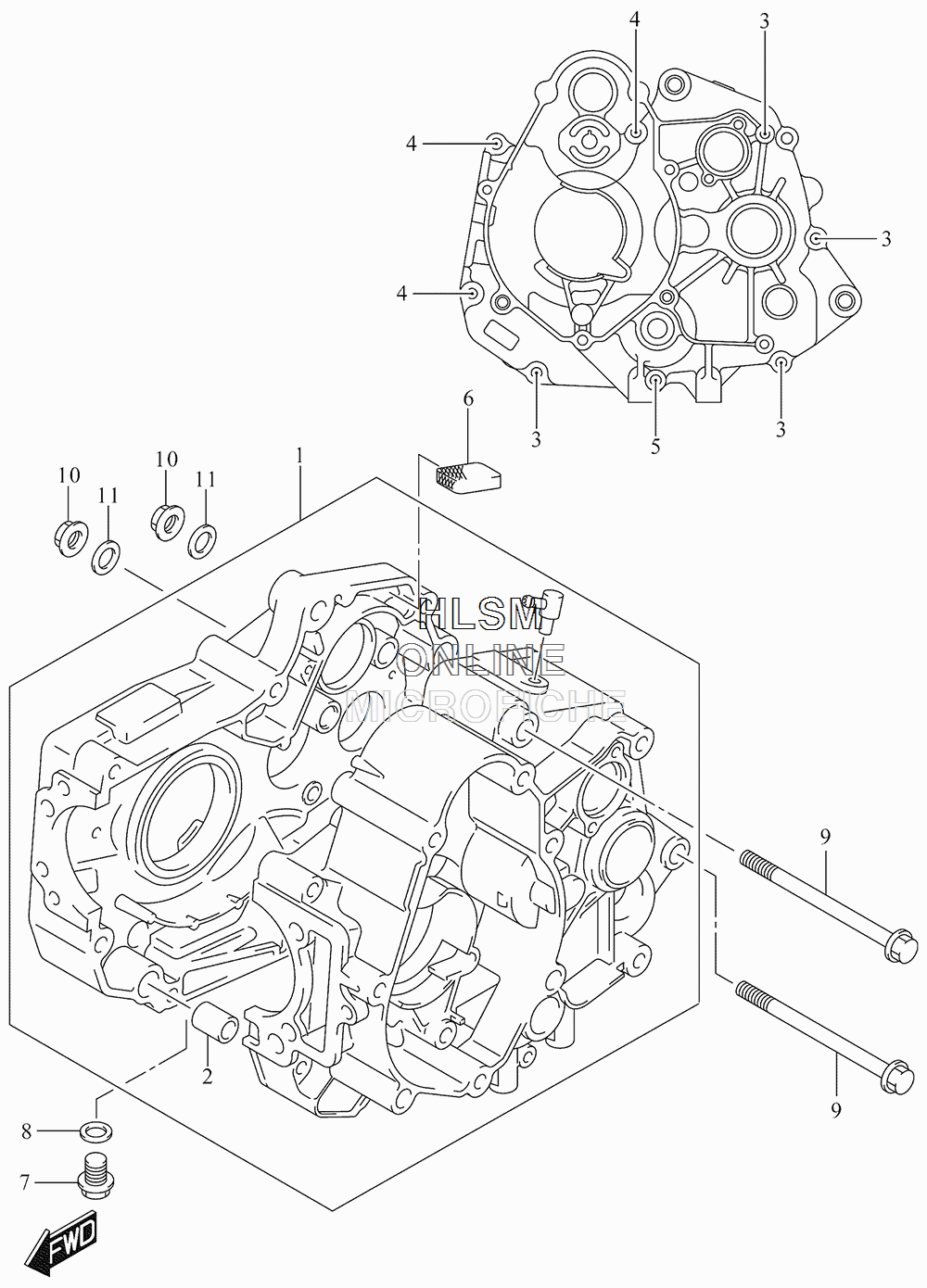

CRANKCASE для Suzuki DR-Z70 [DRZ70L5] - 2015 года выпуска
-
№АртикулНазвание
-
111300-14810 CRANKCASE SETCRANKCASE SET
-
204211-13189 ...PIN...PIN
-
301547-0630A ...BOLT...BOLT
-
401547-0640A ...BOLT...BOLT
-
501547-0675A ...BOLT...BOLT
-
611186-30D00 SEPARATOR, OIL BREATHERSEPARATOR, OIL BREATHER
-
709247-10008 PLUG (10X12) (OIL DRAIN)PLUG (10X12) (OIL DRAIN)
-
809168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
909103-08070 BOLT (8X100)BOLT (8X100)
-
1008319-3108A NUTNUT
-
1108322-0108A WASHERWASHER
