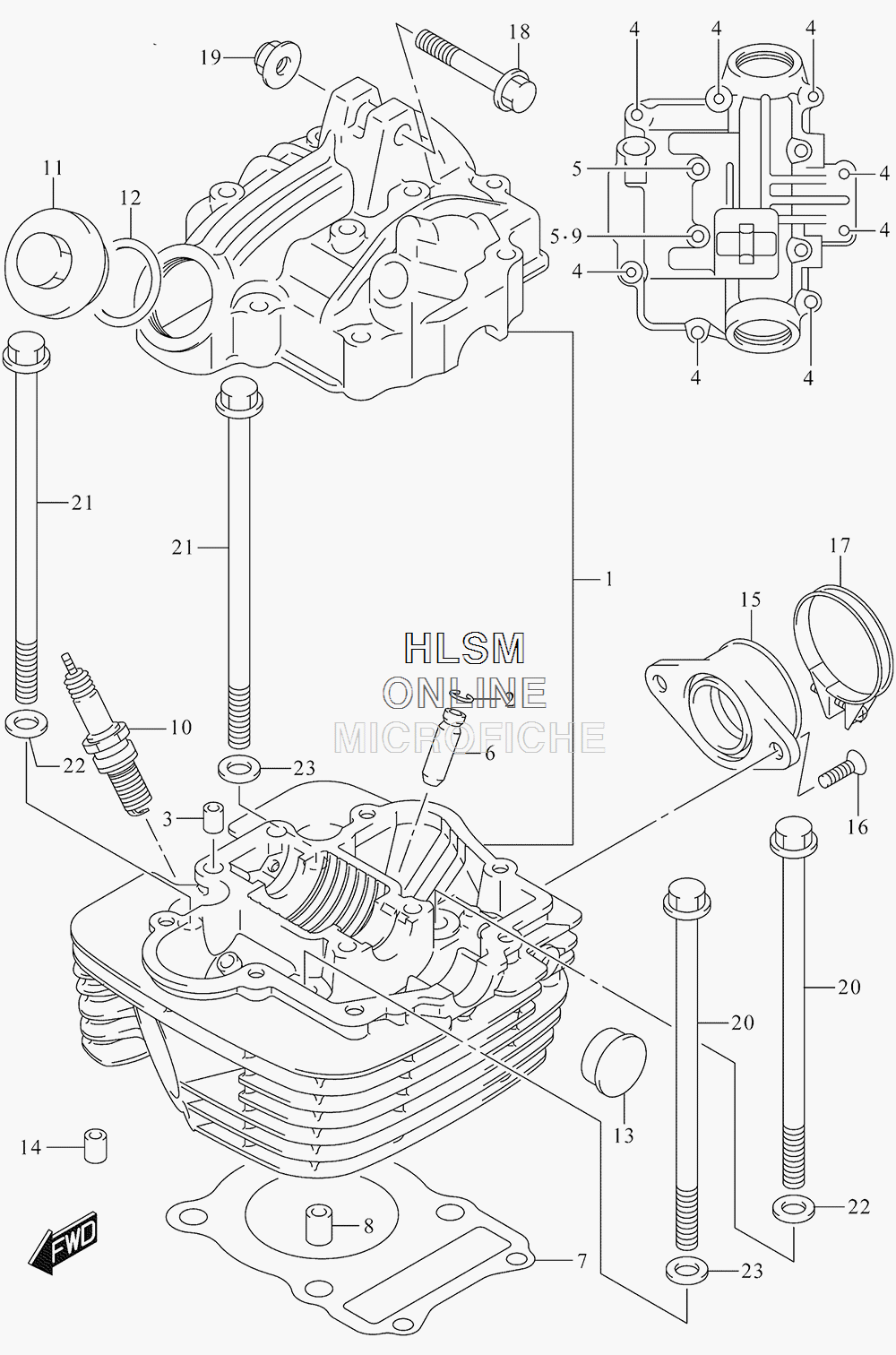

CYLINDER HEAD для Suzuki DR-Z125L [DRZ125LL5] - 2015 года выпуска`
-
№АртикулНазвание
-
111100-08G00 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209381-10004 SNAP RINGSNAP RING
-
309206-08001 PIN (8X11)PIN (8X11)
-
401550-0635A BOLTBOLT
-
501550-0660A BOLTBOLT
-
611115-05270 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
711141-05202 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
804211-11169 KNOCK PINKNOCK PIN
-
909168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1009482-00223 SPARK PLUG (X24ESR-U) (DENSO)SPARK PLUG (X24ESR-U) (DENSO)
-
1009482-00399 SPARK PLUG (DR8EA) (NGK)SPARK PLUG (DR8EA) (NGK)
-
1111175-18900 CAP, INSPECTIONCAP, INSPECTION
-
1209280-30001 O RING (D:3,ID:29.5)O RING (D:3,ID:29.5)
-
1309241-22002 PLUG (OD:22.5)PLUG (OD:22.5)
-
1411151-45000 PAD, CYLINDER HEAD RUBBERPAD, CYLINDER HEAD RUBBER
-
1513101-08G00 PIPE, INTAKEPIPE, INTAKE
-
1602122-0616A SCREWSCREW
-
1709402-46208 CLAMPCLAMP
-
1809103-08081 BOLT (8X50)BOLT (8X50)
-
1908319-3108A NUTNUT
-
2009103-08378 BOLT (8X155)BOLT (8X155)
-
2109103-08379 BOLT (8X165)BOLT (8X165)
-
2209160-08039 WASHER (8.5X19X2.3)WASHER (8.5X19X2.3)
-
2309168-08021 GASKET (8.5X17X2.3)GASKET (8.5X17X2.3)
