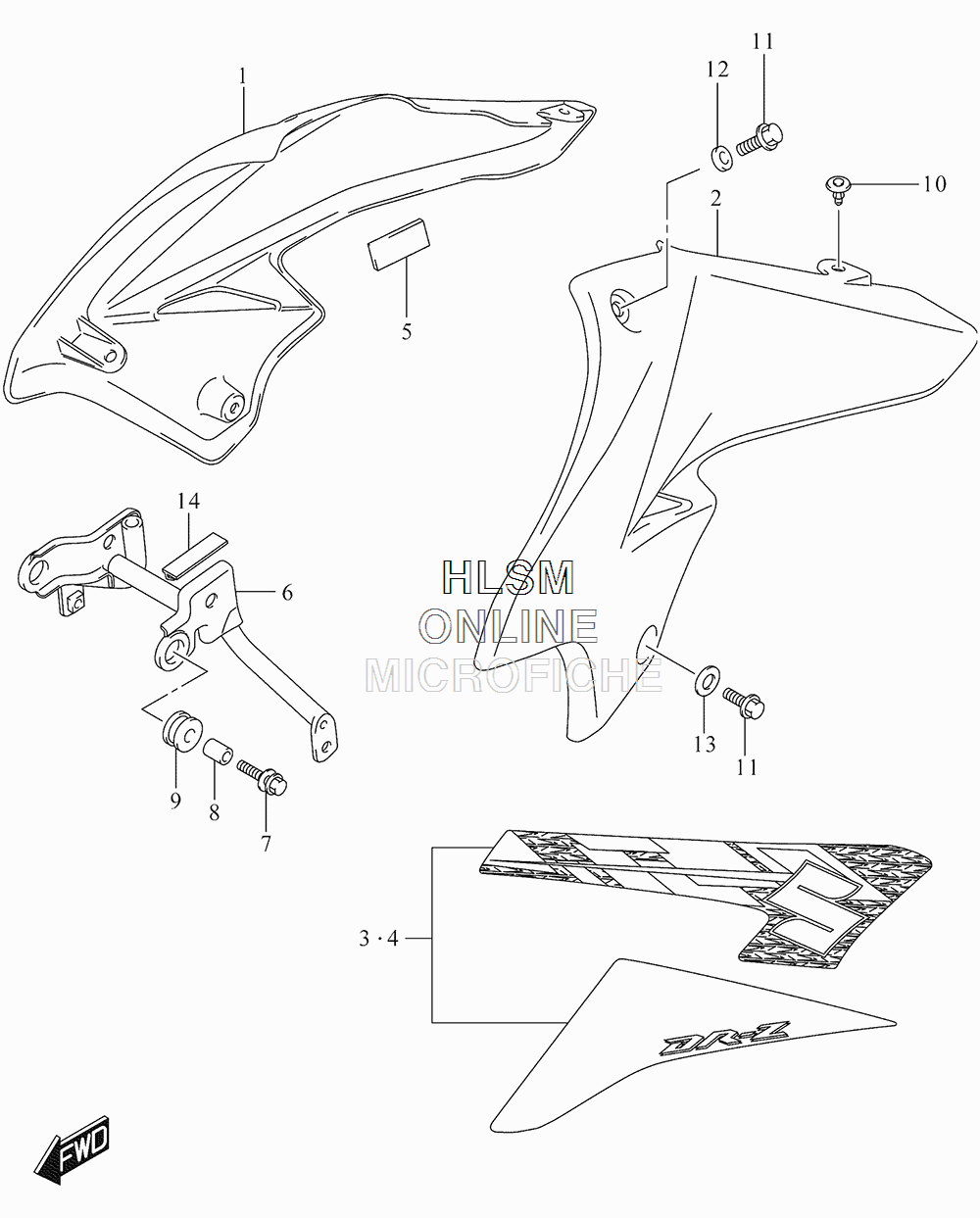

FUEL TANK COVER для Suzuki DR-Z125 [DRZ125L5] - 2015 года выпуска
-
№АртикулНазвание
-
144271-08GA0-YU1 COVER, FUEL TANK RIGHT HAND (YELLOW)COVER, FUEL TANK RIGHT HAND (YELLOW)
-
244281-08GA0-YU1 COVER, FUEL TANK LEFT HAND (YELLOW)COVER, FUEL TANK LEFT HAND (YELLOW)
-
368110-08G90-AGB TAPE SET, FUEL TANK COVER, RIGHT HANDTAPE SET, FUEL TANK COVER, RIGHT HAND
-
468120-08G90-AGB TAPE SET, FUEL TANK COVER, LEFT HANDTAPE SET, FUEL TANK COVER, LEFT HAND
-
544294-14H00 CUSHIONCUSHION
-
644160-08GA0 BRACKET, FRONTBRACKET, FRONT
-
709116-06186 BOLT (6X25)BOLT (6X25)
-
809180-06268 SPACER (6.5X9X13.5)SPACER (6.5X9X13.5)
-
944512-04F00 CUSHIONCUSHION
-
1009409-08308-5ES CLIP (BLACK)CLIP (BLACK)
-
1101547-0616A BOLTBOLT
-
1209169-06081 WASHERWASHER
-
1309169-06053 WASHERWASHER
-
1468241-04X50-300 MOLDING, FUEL TANK BRKTMOLDING, FUEL TANK BRKT
